Quarter Window Inner Belt Sealing Strip Replacement

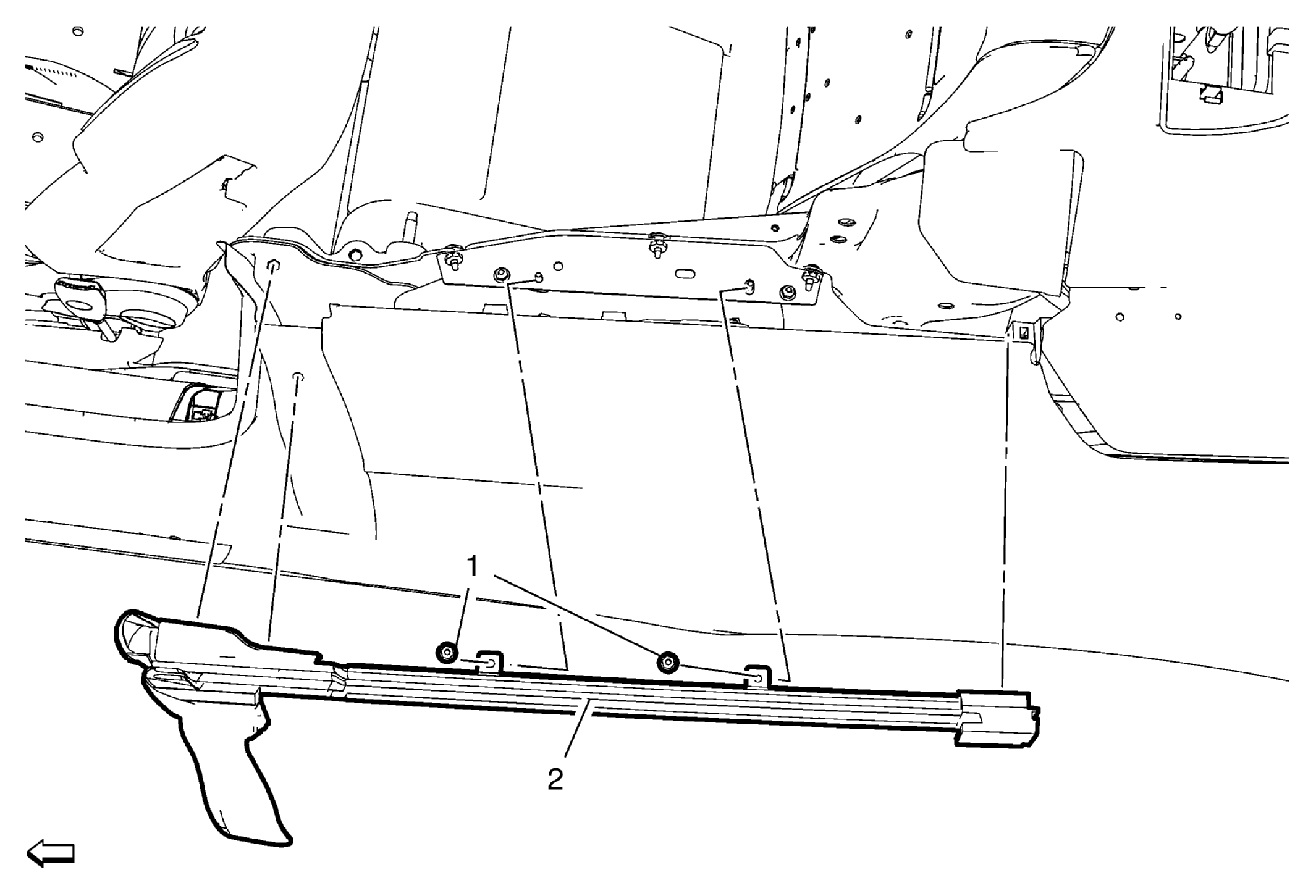

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the quarter upper trim panel. Refer to Quarter Upper Trim Panel Replacement . |
|
| 1 | Quarter Window Inner Belt Sealing Strip Nut
CAUTION:
Refer to Fastener Caution . |
| 2 | Quarter Window Inner Belt Sealing Strip Procedure Unlock the 2 retaining tabs. |
