Fuel Tank Shield Replacement (AWD)

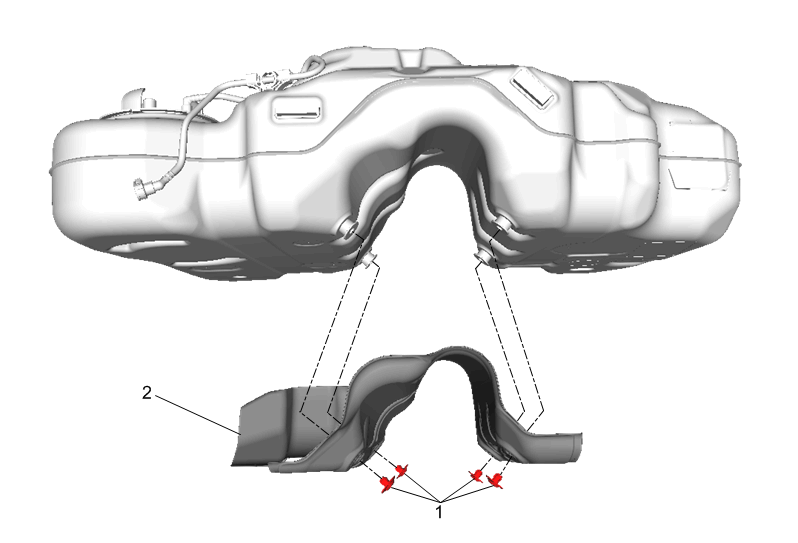

Fig 1: Fuel Tank Shield (AWD)
GM4444617Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Fuel Tank Strap-Right Side - Remove - Fuel Tank Replacement (AWD)
1 Fuel Tank Shield Retainer [4x]
CAUTION:

Refer to Fastener Caution .
2 Fuel Tank Shield
