Multifunction Power Supply Converter Bracket Replacement

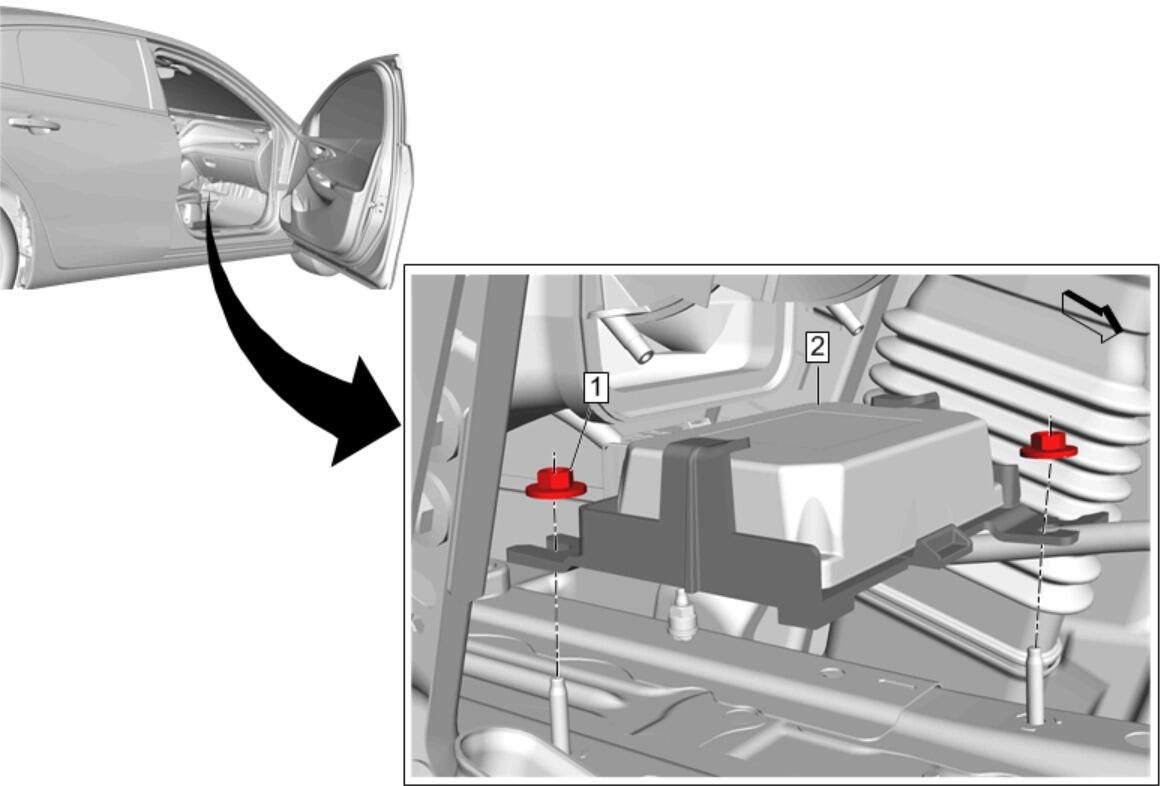

Fig 1: Multifunction Power Supply Converter Bracket

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the left side Floor Rear Air Outlet Duct Adapter.Refer to Floor Rear Air Outlet Duct Adapter Replacement (Left)Floor Rear Air Outlet Duct Adapter Replacement (Right)
1	Multifunction Power Supply Converter Bracket Nut CAUTION: Refer to Fastener Caution . tighten 6 N.m (53 lb in)
2	Multifunction Power Supply Converter Bracket Procedure Disconnect all electrical connectors. Transfer components as necessary.

Callout

Component Name

Multifunction Power Supply Converter Bracket Nut

CAUTION:

tighten
6 N.m (53 lb in)

Multifunction Power Supply Converter Bracket

Procedure
