Removal Procedure

    Fig 1: Rear Compartment Side Trim - Left Side (Without HP4)
    GM4215214Courtesy of GENERAL MOTORS COMPANY
  1. Rear Compartment Side Trim Panel 2 - Remove - Rear Compartment Side Trim Replacement - Left Side (With LHN)Rear Compartment Side Trim Replacement - Left Side (With LGX)

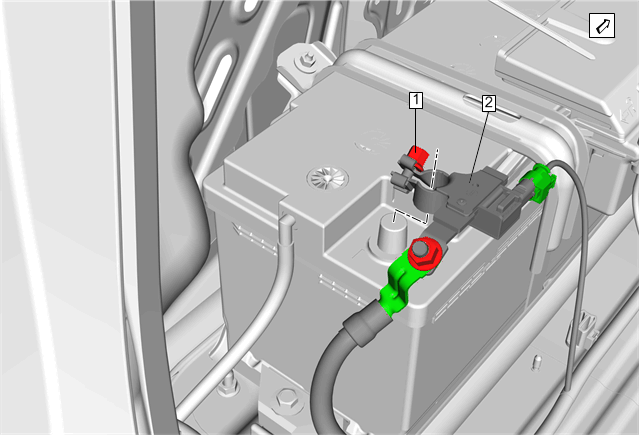

    2. Fig 2: Battery Sensor Module
    GM4353072Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Wait at least 2 minutes after ignition is OFF before disconnecting the battery.

  2. Battery Post Negative Cable Clamp Nut 1 - Remove
  3. Battery Sensor Module 2 - Remove
