Power MODING Schematics
>>
Schematic Wiring Diagrams
>>
Power Moding Wiring Schematics
>>
Ignition Mode Switch
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Ignition Mode Switch

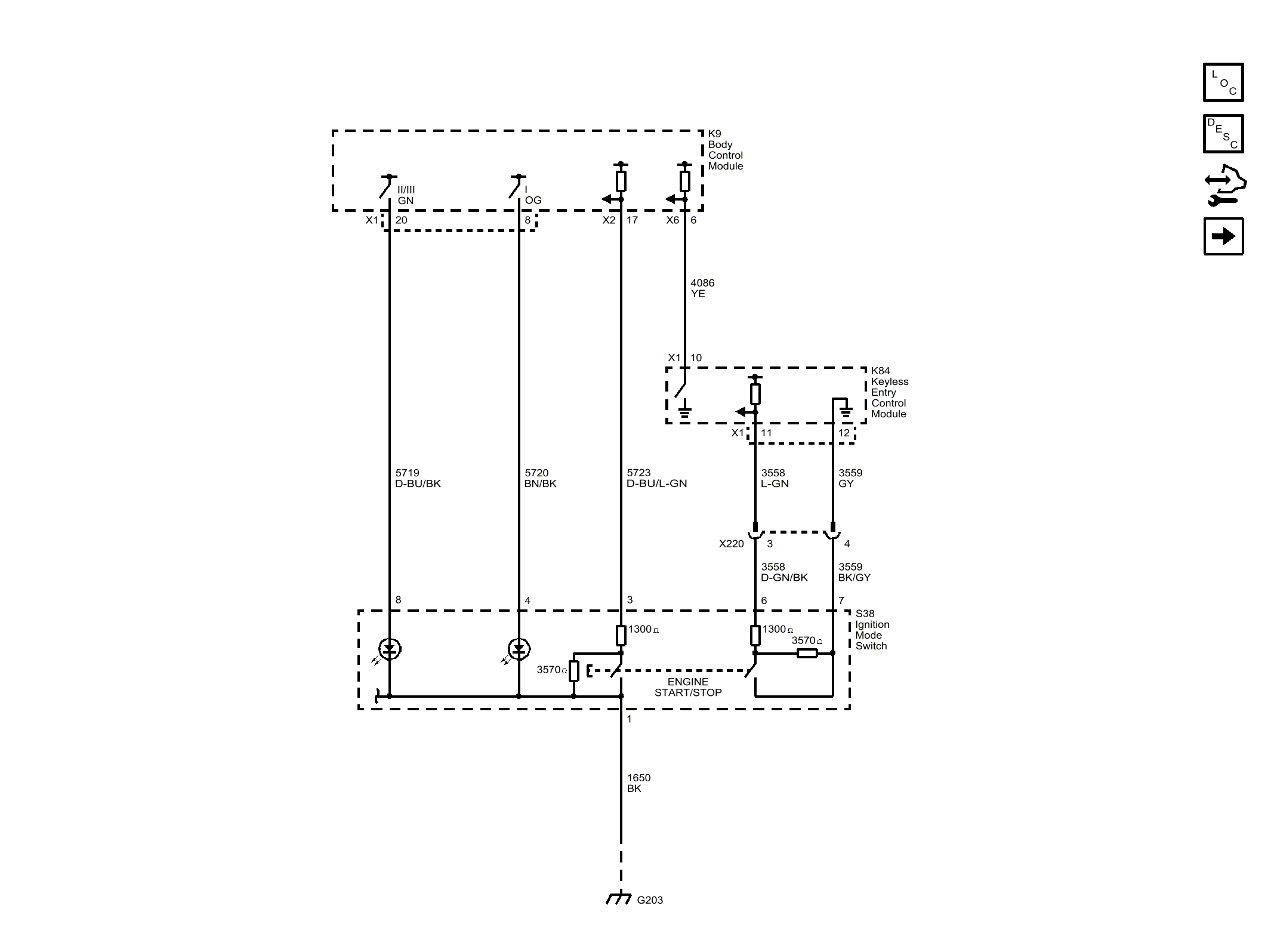

Fig 1: Ignition Mode Switch
Courtesy of GENERAL MOTORS COMPANY
