Head-Up Display Dimmer Switch Replacement

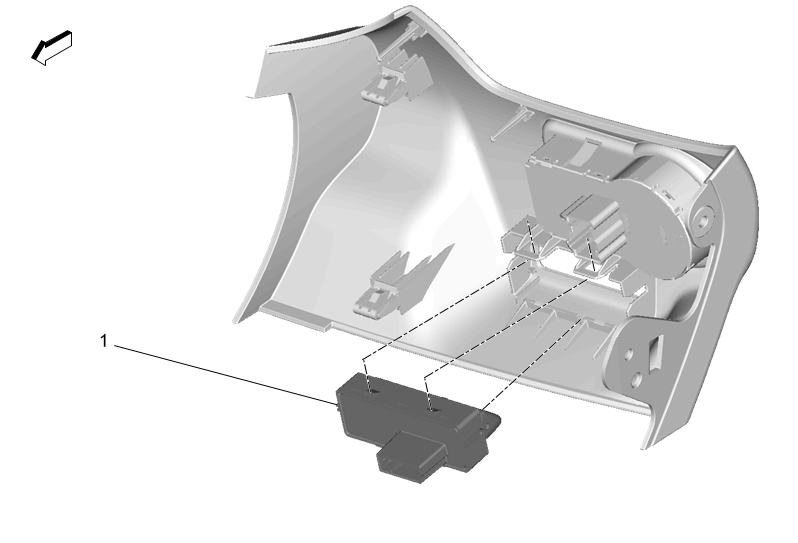

Fig 1: Head-Up Display Dimmer Switch
GM3976662Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Instrument Panel Trim Plate Applique Replacement
1 Head-Up Display Switch
Procedure
Release the tabs and remove the switch.
