Installation Procedure

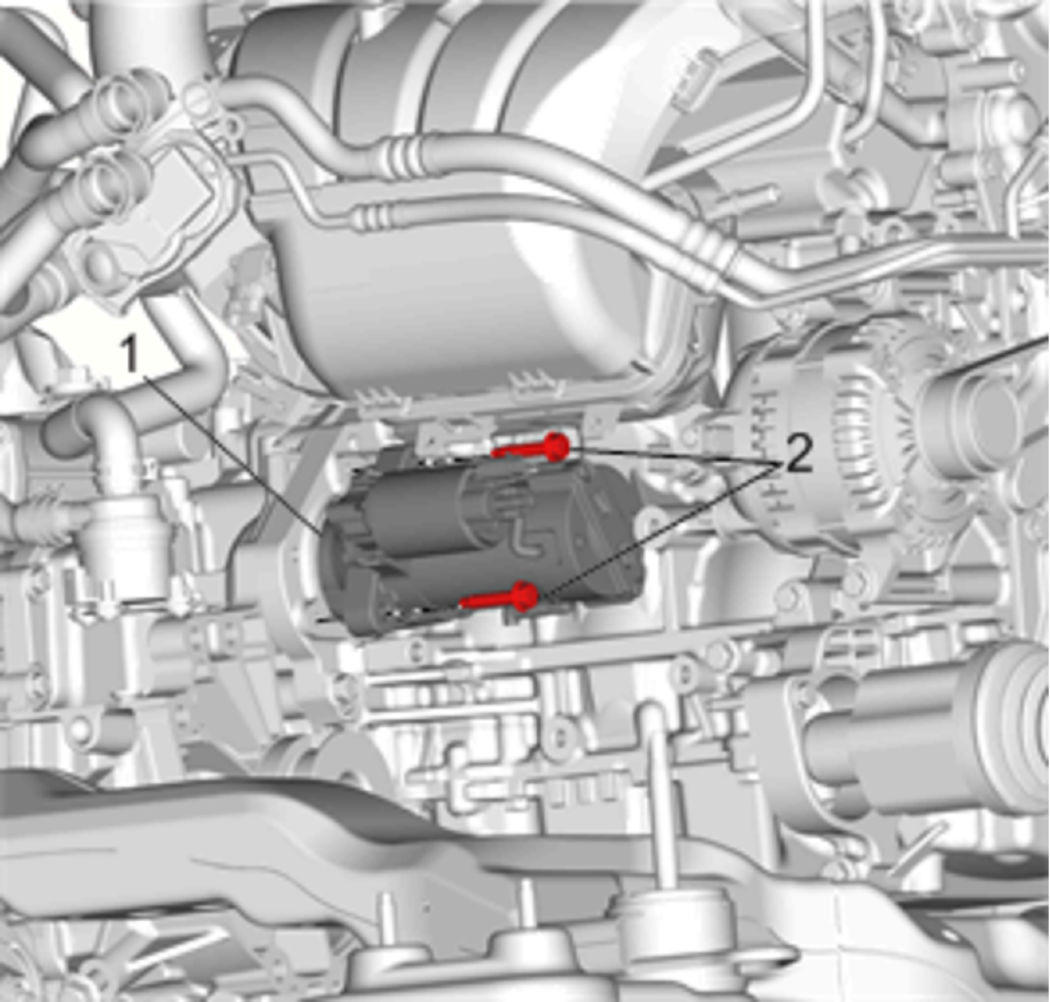

    Fig 1: Starter
    GM3903508Courtesy of GENERAL MOTORS COMPANY
  1. Install Starter (1)
    2. CAUTION:

    Refer to Fastener Caution .

  2. Install Starter Mounting Bolt (2) and tighten 22 N.m (16 lb ft)
    3. Fig 2: Starter Solenoid
    GM3903504Courtesy of GENERAL MOTORS COMPANY
  3. Connect Electrical Connector (1)
  4. Install Battery Positive Cable (1)
  5. Install Battery Positive Cable Nut (2) and tighten 12 N.m (106 lb in)
    6. Fig 3: Oil Pressure Sensor
    GM3903502Courtesy of GENERAL MOTORS COMPANY
  6. Connect Electrical Connector (1) @Oil Pressure Switch (2)
  7. Engage Retainer (3)
    8. Fig 4: Power Transfer Unit Case
    GM3824411Courtesy of GENERAL MOTORS COMPANY
  8. Install Power Transfer Unit Case Power Transfer Unit Case Replacement
  9. Connect the negative battery cable. Battery Negative Cable Disconnection and Connection
