Driver or Passenger Seat Lumbar Control Switch Replacement

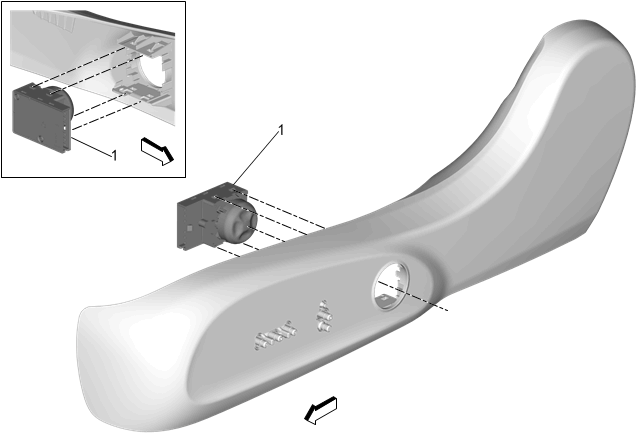

Fig 1: Driver or Passenger Seat Lumbar Control Switch

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Front Seat Cushion Outer Finish Cover Replacement (Power)Front Seat Cushion Outer Finish Cover Replacement (Manual)
1	Driver or Passenger Seat Lumbar Control Switch Procedure  Use a flat-bladed tool to release the lumbar control switch from the front seat cushion outer finish cover.
