Windshield Washer Solvent Container Grommet Replacement

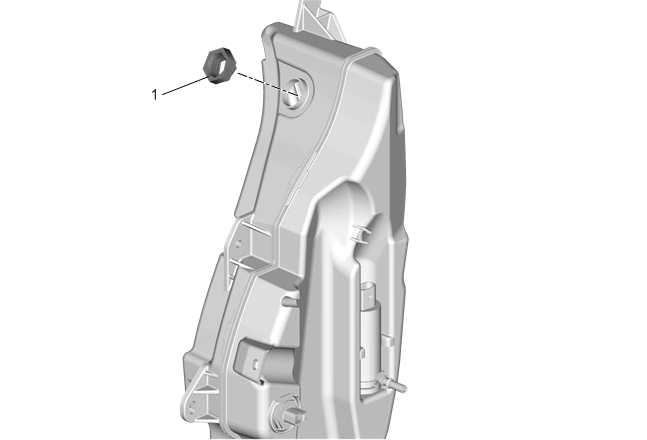

Fig 1: Windshield Washer Solvent Container Grommet

GM3903405

Courtesy of GENERAL MOTORS COMPANY

Callout

Component Name

Preliminary Procedure
Windshield Washer Solvent Container Filler Tube Replacement .

1

Windshield Washer Solvent Container Grommet

Procedure

Compress and remove the grommet from the windshield washer solvent container.
Upon installation of a new grommet, lubricate the exterior of the grommet with windshield washer solvent to assist with the installation of the grommet into the windshield washer container.
Ensure the grommet is seated to the top side of the washer container.
