Radio Antenna Amplifier Replacement

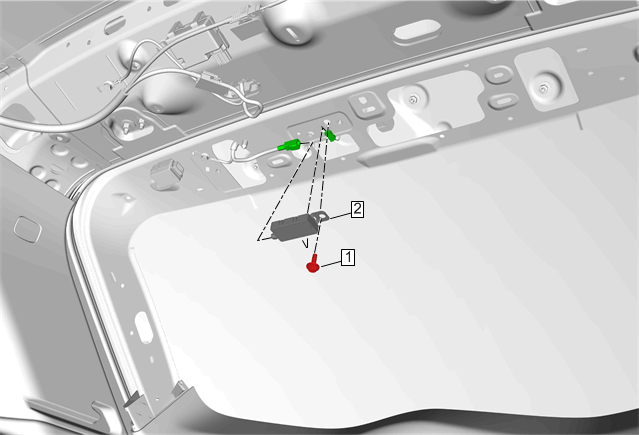

Fig 1: Radio Antenna Amplifier
GM3924237Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Liftgate Upper Trim Finish Panel Replacement
1 Radio Antenna Amplifier Fastener
CAUTION:

Refer to Fastener Caution .


Tighten
9 N.m (80 lb in)
2 Radio Antenna Amplifier
Procedure
Disconnect the electrical connectors.
