Removal Procedure

    Fig 1: Battery Sensor Electrical Connector
    GM4098026Courtesy of GENERAL MOTORS COMPANY
    WARNING:

    Refer to Battery Disconnect Warning .

  1. Disconnect the electrical connector (1).
    2. Fig 2: Battery Negative Cable And Nut
    GM4098029Courtesy of GENERAL MOTORS COMPANY
  2. Use an open ended wrench to hold the battery sensor ground tab, while loosening the battery negative cable nut (3).
  3. Remove Battery Negative Cable Nut (3)
  4. Remove Battery Negative Cable (2)
  5. Remove the battery tray. Refer to Battery Tray Replacement

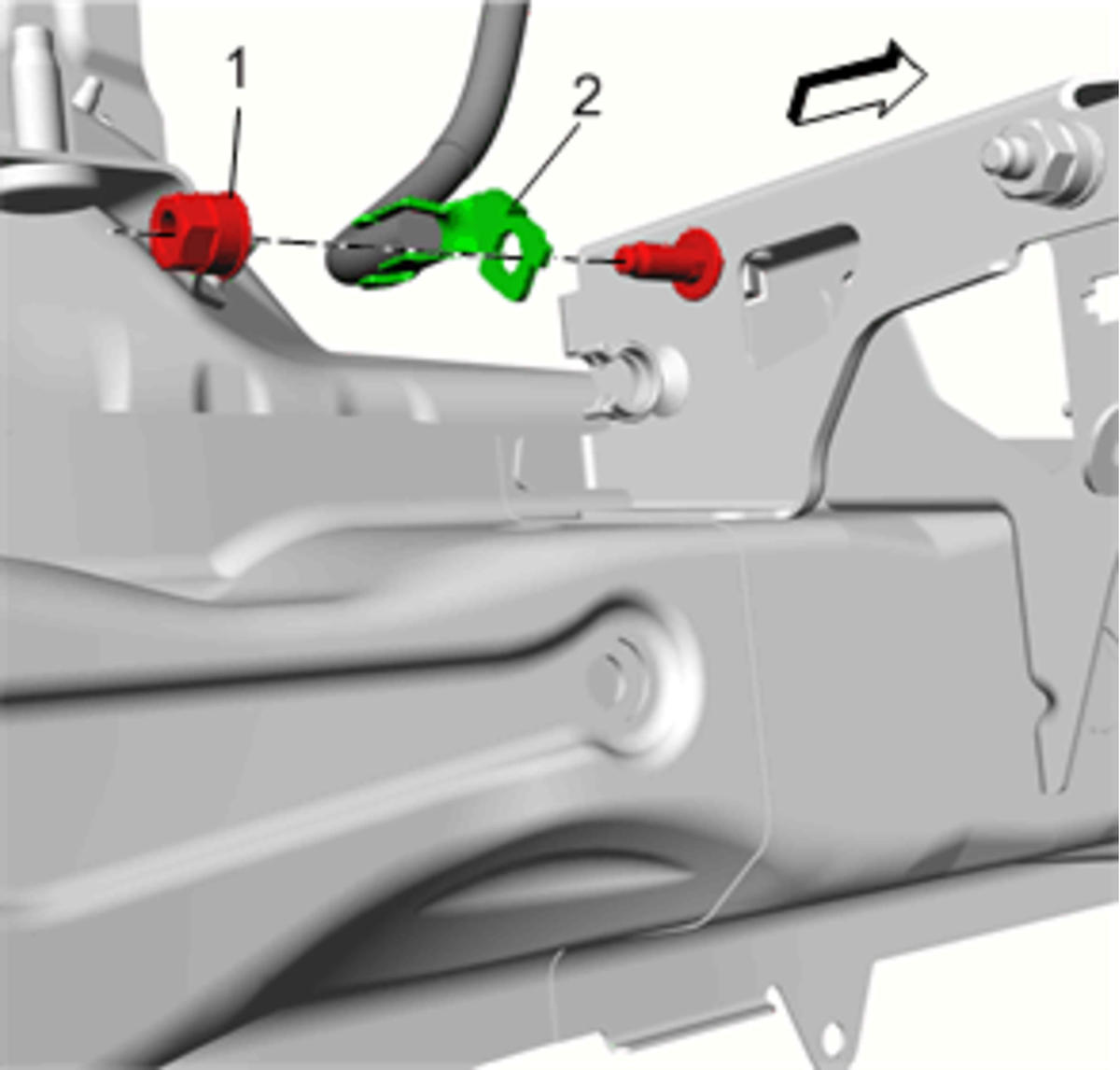

    6. Fig 3: Battery Negative Cable And Negative Cable Frame Ground Fastener
    GM4098013Courtesy of GENERAL MOTORS COMPANY
  6. Remove Battery Negative Cable Frame Ground Fastener (1)
  7. Remove Battery Negative Cable (2)
