Keyless Entry - Passive Entry and Keyless Start (2 of 2) (Buick)

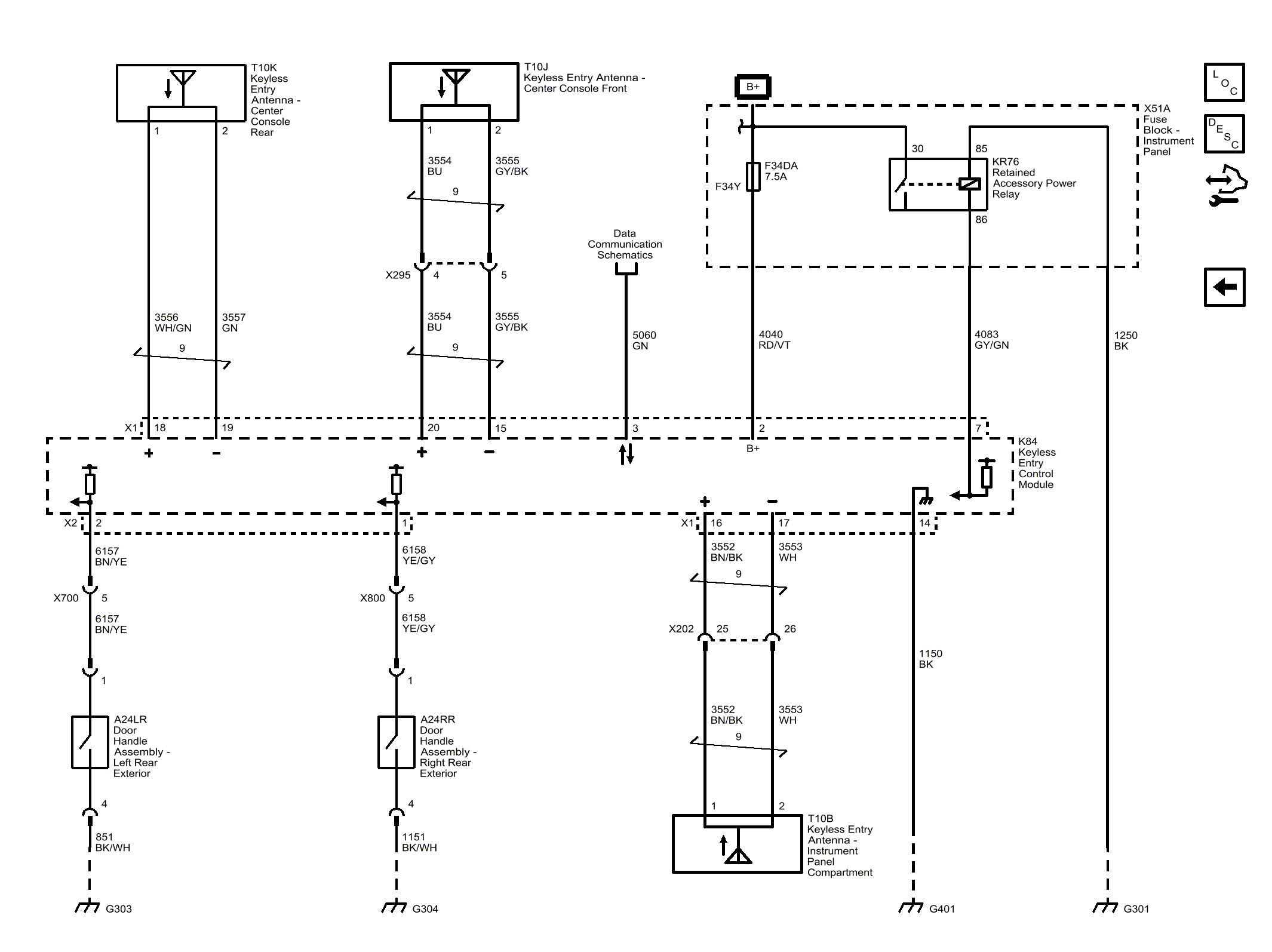

Fig 1: Keyless Entry - Passive Entry and Keyless Start (2 of 2) (Buick)
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
