Schematic and Wiring Diagrams
>>

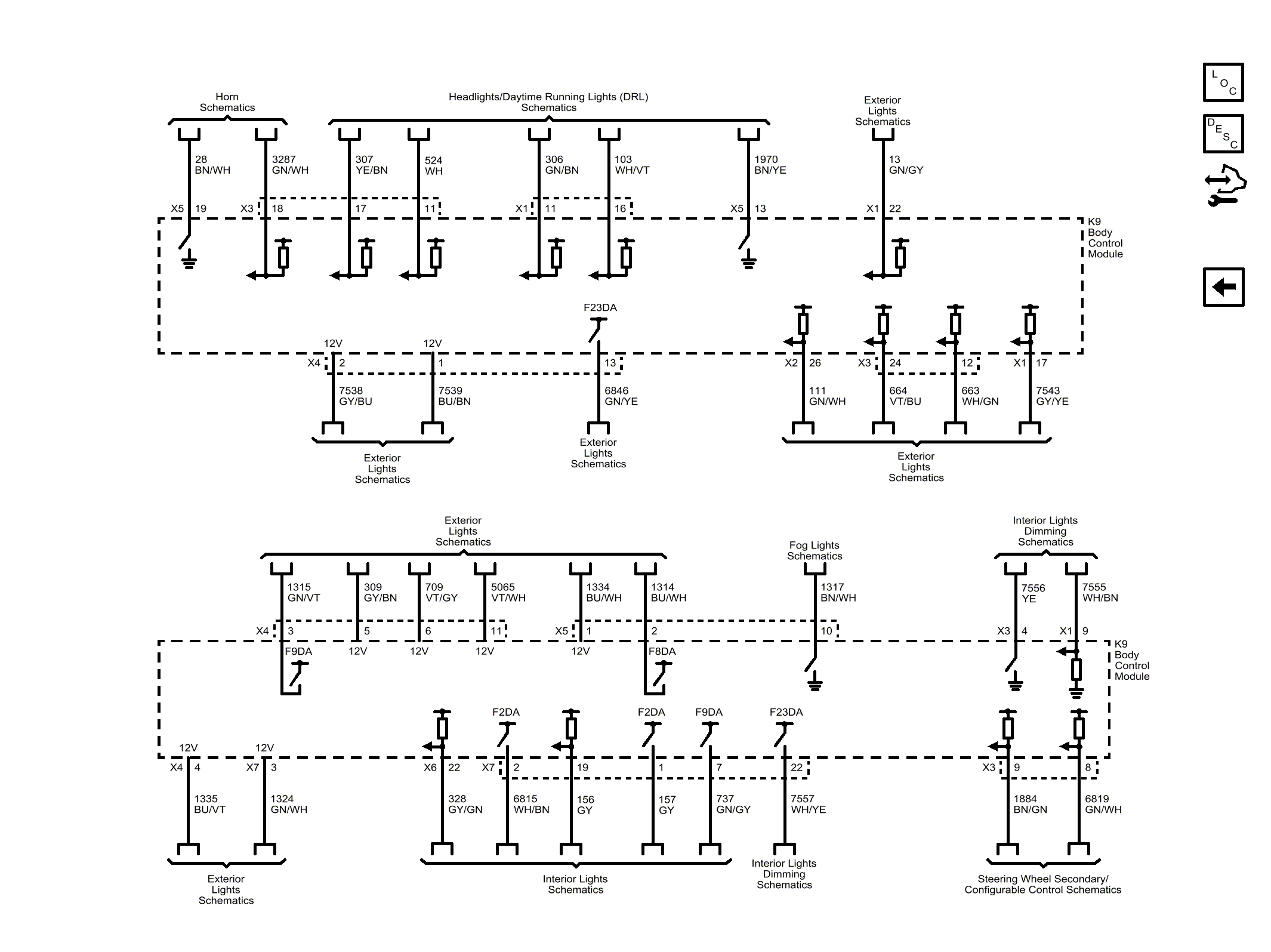

Body Control System Wiring Schematics
>>
Subsystem References (3 of 3)
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Subsystem References (3 of 3)
Courtesy of GENERAL MOTORS COMPANY
