Quarter Window Finish Molding Replacement

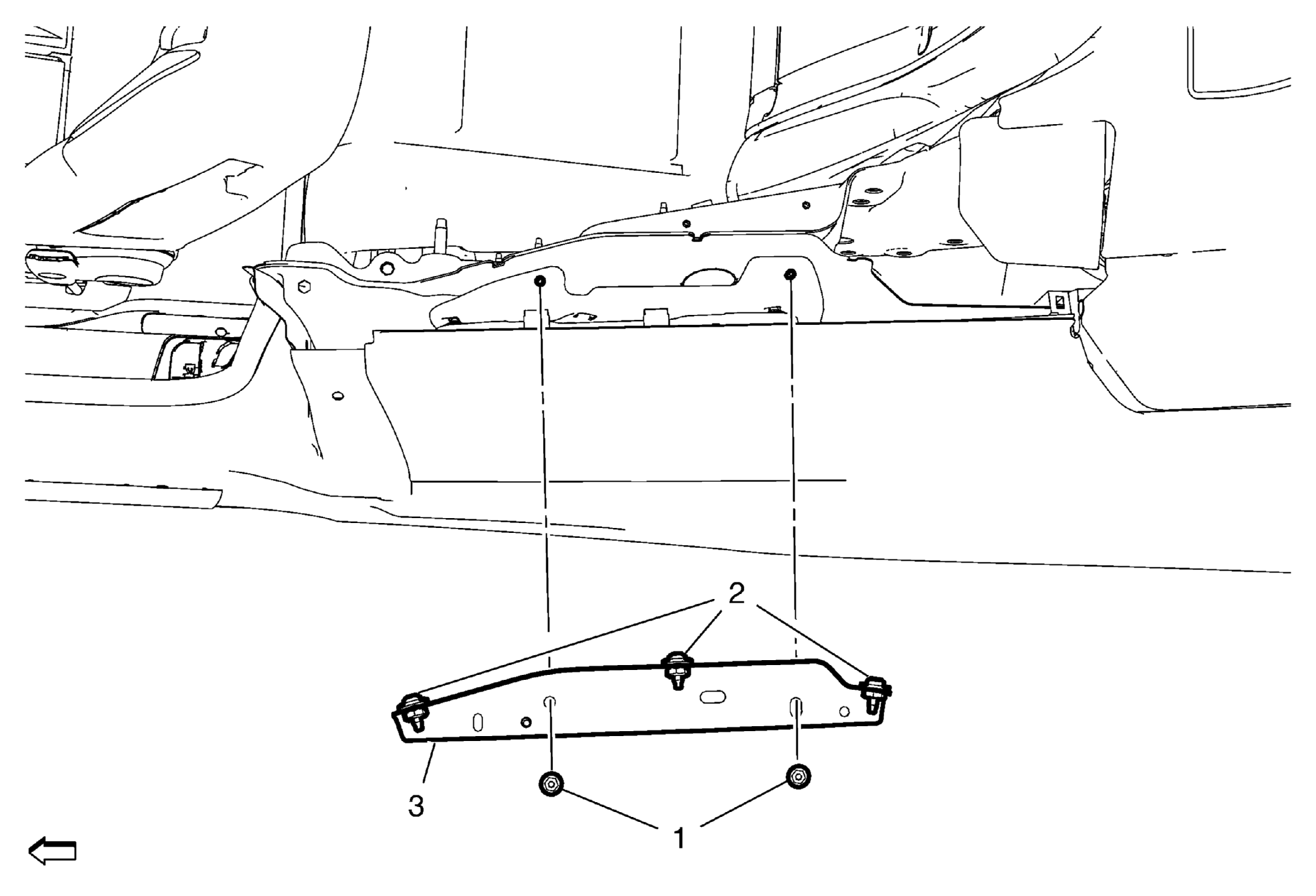

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the quarter window inner belt sealing strip. Refer to Quarter Window Inner Belt Sealing Strip Replacement . |
|
| 1 | Quarter Window Finish Molding Nut (Qty: 2).
CAUTION:
Refer to Fastener Caution . |
| 2 | Quarter Window Finish Molding Bolt (Qty: 3).
NOTE:
Bolts remain in the quarter window finish molding. |
| 3 | Quarter Window Finish Molding |
