Front Side Door Window Switch Replacement - Right Side

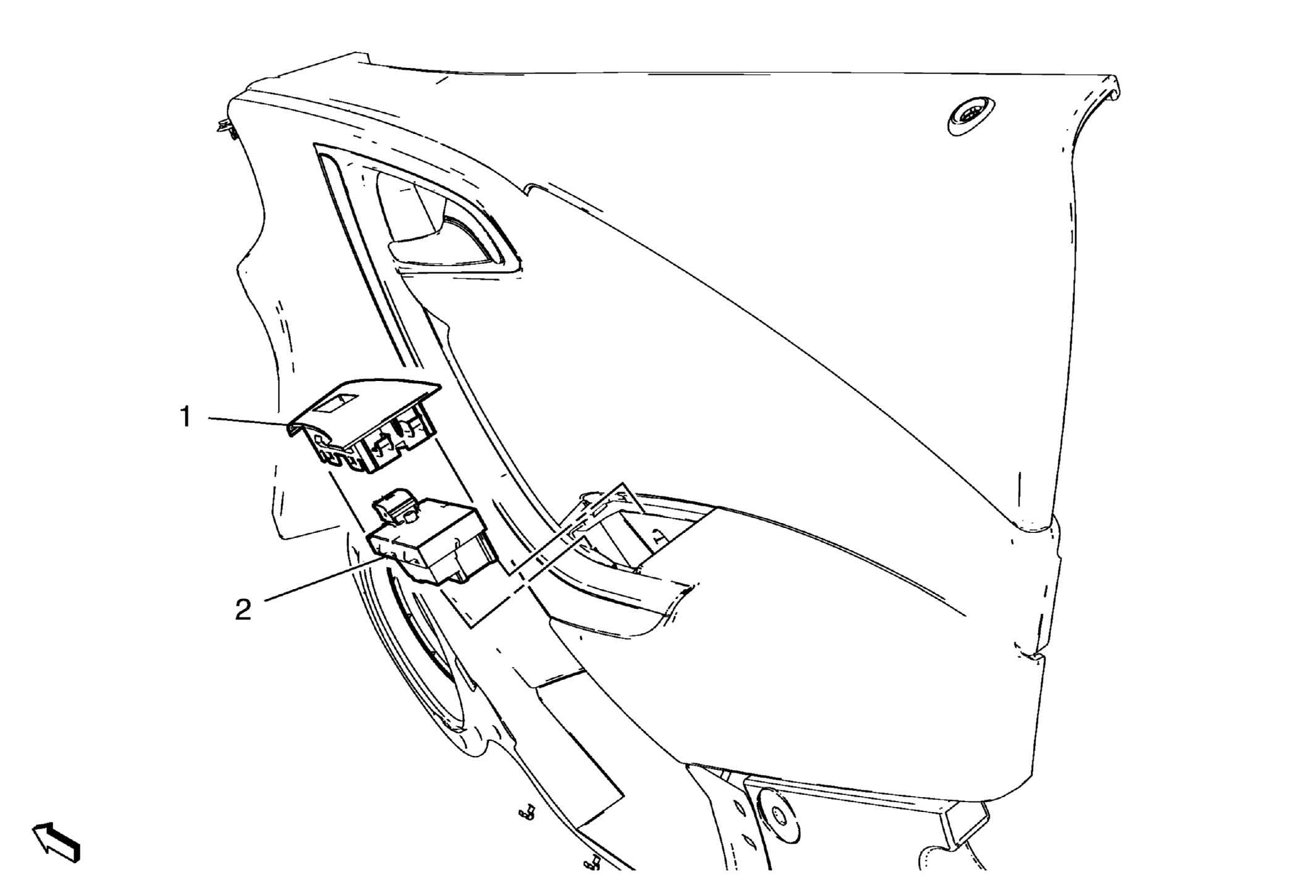

GM2189751
Callout Component Name
1 Front Side Door Window Switch Opening Cover
Procedure
Unclip front side door window switch opening cover (Qty: 4).
2 Front and Rear Side Door Window Switch Assembly

Procedure

  1. Unclip front side door window switch (Qty: 4).
  2. Disconnect electrical connector.
