Installation Procedure

  1. Install the windshield outside moisture sensor to the windshield.

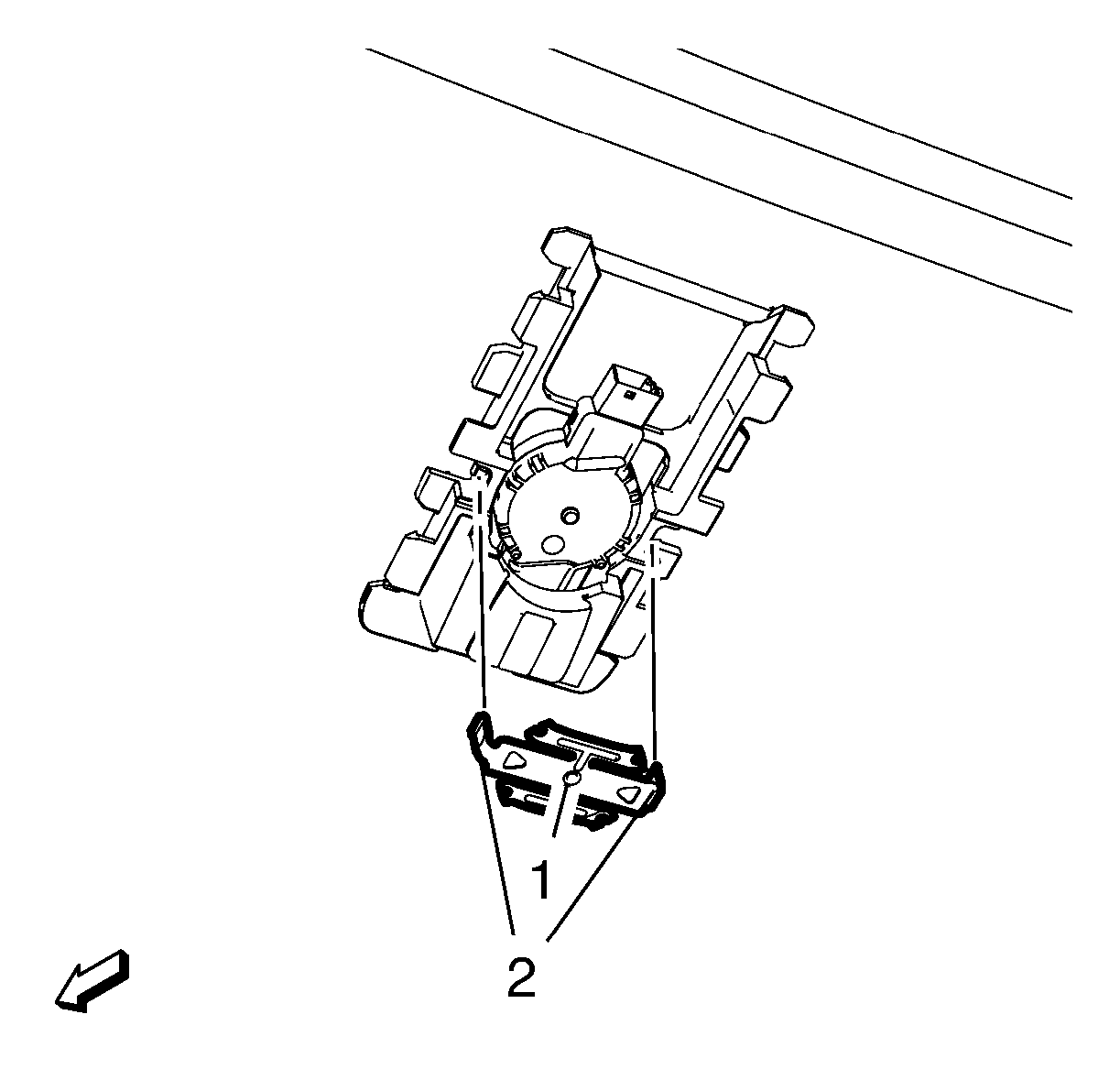

  2. GM3471717

    To install the windshield outside moisture sensor spring (1) push them and lock the 2 retainer (2).

  3. Install the vehicle direction camera cover. Refer to Vehicle Direction Camera Cover Replacement .
