Multimedia Player Interface (KTA)

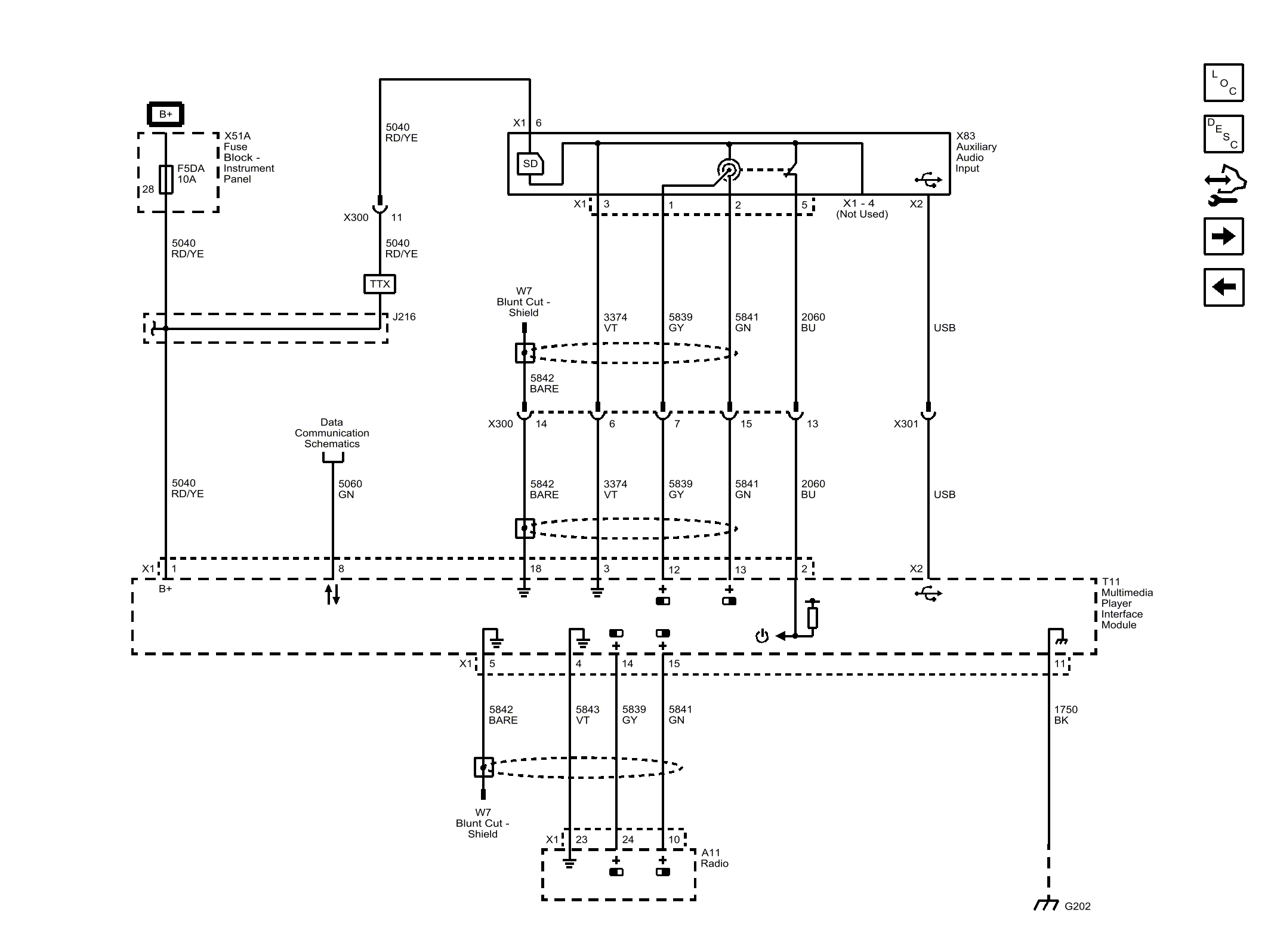

Fig 1: Multimedia Player Interface (KTA)
GM4082245Courtesy of GENERAL MOTORS COMPANY
