Engine Lower Front Splash Shield Replacement
WARNING: This page is about a different car, the 2016 Buick LaCrosse. However, it is still accessible from the selected car via links, so may be relevant.

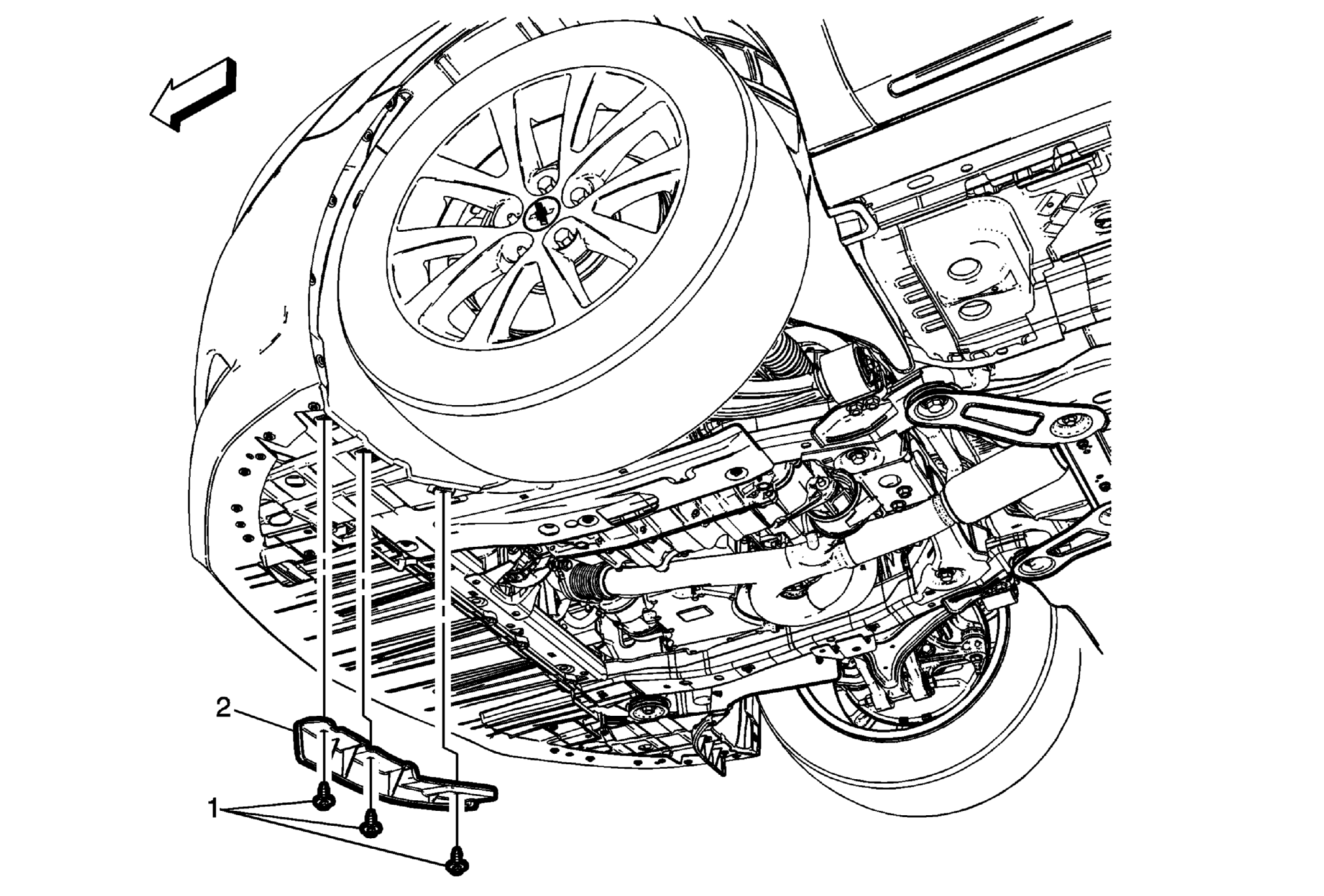

| Callout | Component Name |
|---|---|
| Preliminary Procedures Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle . |
|
| 1 | Engine Lower Front Splash Shield Fasteners (Qty: 3)
CAUTION:
Refer to Fastener Caution . Tighten 9 N.m (80 lb in) |
| 2 | Engine Lower Front Splash Shield |
