Air Conditioning Refrigerant Temperature Sensor Replacement

WARNING: This page is about a different car, the 2015 Buick LaCrosse. However, it is still accessible from the selected car via links, so may be relevant.

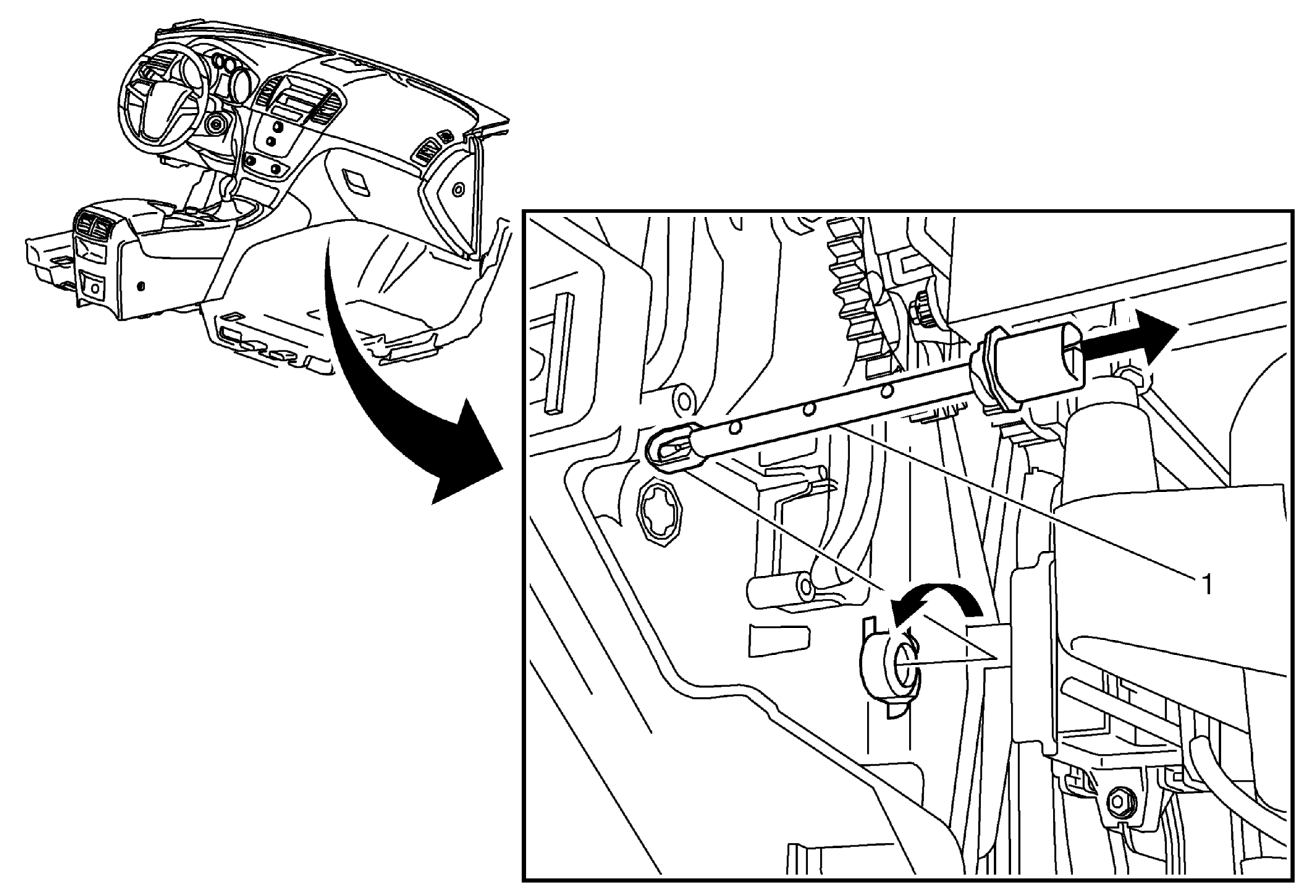

Fig 1: Air Conditioning Refrigerant Temperature Sensor

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the heater and blower air conditioning control module. Refer to Heater and Blower and Air Conditioning Control Module Replacement .
1	Air Conditioning Refrigerant Temperature Sensor Procedure Disconnect the refrigerant temperature sensor electrical connector. Twist and pull the refrigerant temperature sensor from the heater and air conditioning evaporator and blower module assembly.

Callout

Component Name

Preliminary Procedure
Remove the heater and blower air conditioning control module. Refer to Heater and Blower and Air Conditioning Control Module Replacement .

Air Conditioning Refrigerant Temperature Sensor

Procedure

Disconnect the refrigerant temperature sensor electrical connector.
Twist and pull the refrigerant temperature sensor from the heater and air conditioning evaporator and blower module assembly.
