Fuel Pressure Sensor Replacement - Fuel Feed Pipe

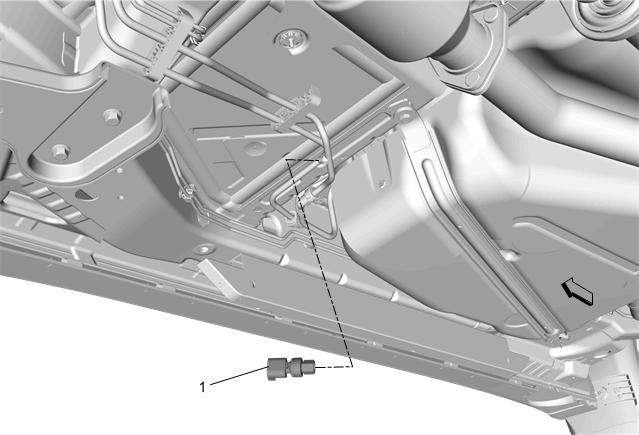

Fig 1: Fuel Pressure Sensor - Fuel Feed Pipe

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Fuel Pressure Relief Lifting and Jacking the Vehicle
1	Fuel Pressure Sensor CAUTION: Refer to Component Fastener Tightening Caution . Procedure Disconnect the fuel pressure sensor electrical connector. Use a NEW O-Ring whenever the sensor is removed. Cycle the ignition to run the fuel pump and inspect for fuel leaks. Tighten 15 N.m (11 lb ft)

Callout

Component Name

Preliminary Procedures

Fuel Pressure Sensor

CAUTION:

Procedure

Tighten
15 N.m (11 lb ft)
