Auxiliary Fuel Feed Pipe Replacement

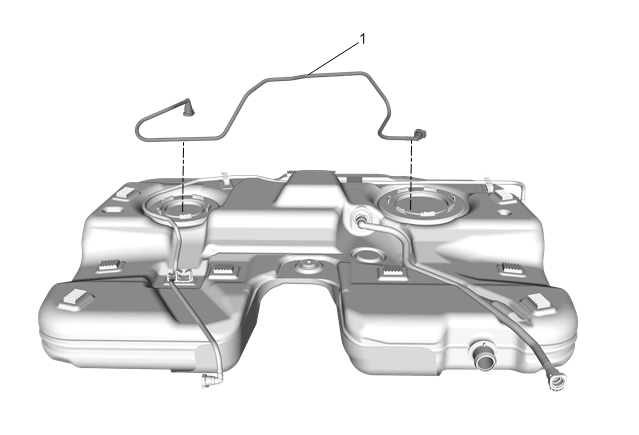

Fig 1: Auxiliary Fuel Feed Pipe

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the fuel tank fuel pump module. Refer to Fuel Tank Fuel Pump Module Replacement . Remove the fuel sender assembly. Refer to Fuel Sender Assembly Replacement .
1	Auxiliary Fuel Feed Pipe Procedure Remove from retainers inside of fuel tank.

Callout

Component Name

Preliminary Procedures

Remove the fuel tank fuel pump module. Refer to Fuel Tank Fuel Pump Module Replacement .
Remove the fuel sender assembly. Refer to Fuel Sender Assembly Replacement .

Auxiliary Fuel Feed Pipe
Procedure
Remove from retainers inside of fuel tank.
