Installation Procedure

  1. Instrument Panel Center Air Outlet Duct Replacement - Install

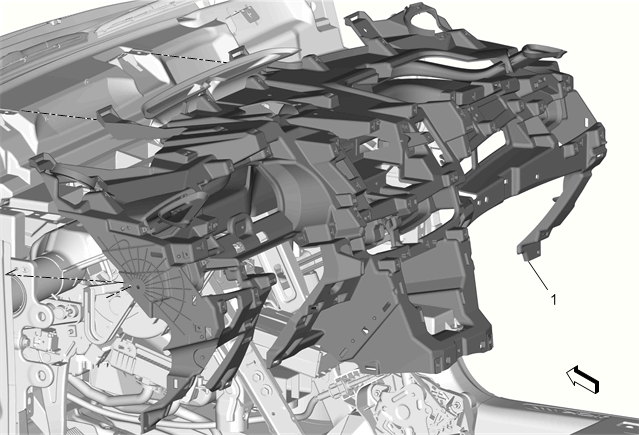

  2. Fig 1: Instrument Panel Carrier Assembly
    GM3923203Courtesy of GENERAL MOTORS COMPANY
  3. With the aid of an assistant, position the instrument carrier in the vehicle. 1
  4. Reposition the instrument panel wiring harness into the vehicle position as was noted in the removal and connect the fasteners securing the instrument panel wiring harness to the instrument carrier.

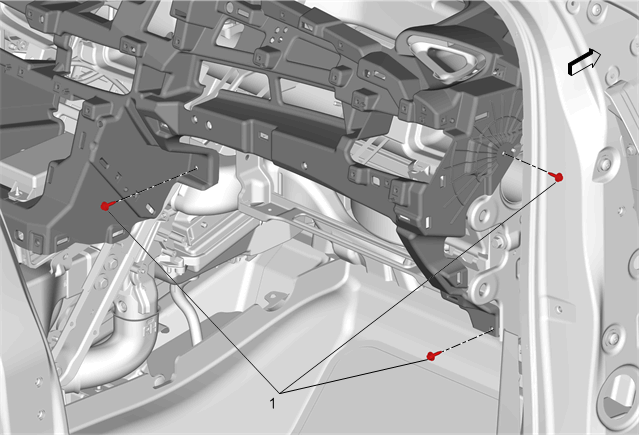

  5. Fig 2: Instrument Carrier Bolt
    GM3923200Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

  6. Instrument Carrier Bolt (1) - Install and tighten 2.5 N.m (22 lb in)

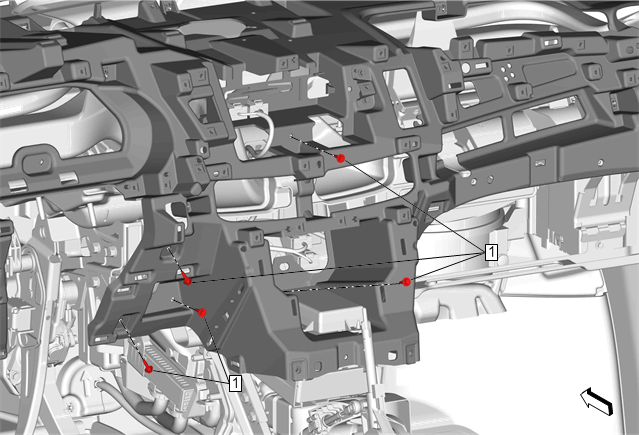

  7. Fig 3: Instrument Carrier Bolt
    GM3923198Courtesy of GENERAL MOTORS COMPANY
  8. Instrument Carrier Bolt (1) - Install and tighten 2.5 N.m (22 lb in)

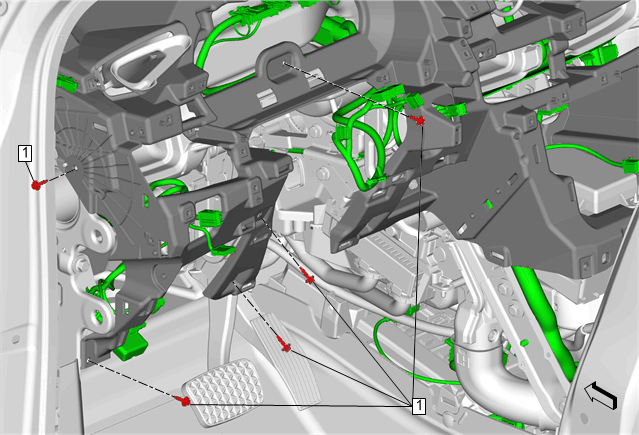

  9. Fig 4: Instrument Carrier Bolt
    GM3923196Courtesy of GENERAL MOTORS COMPANY
  10. Instrument Carrier Bolt (1) - Install and tighten 2.5 N.m (22 lb in)
  11. Fig 5: Communication Interface Module Battery
    GM3921387Courtesy of GENERAL MOTORS COMPANY
  12. Communication Interface Module Battery Replacement (2) - Install
  13. Fig 6: Communication Interface Module Bracket
    GM4623144Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Do not install the components in the preliminary procedures. Those procedures will be covered later.

  14. Communication Interface Module Bracket Replacement 1- Install

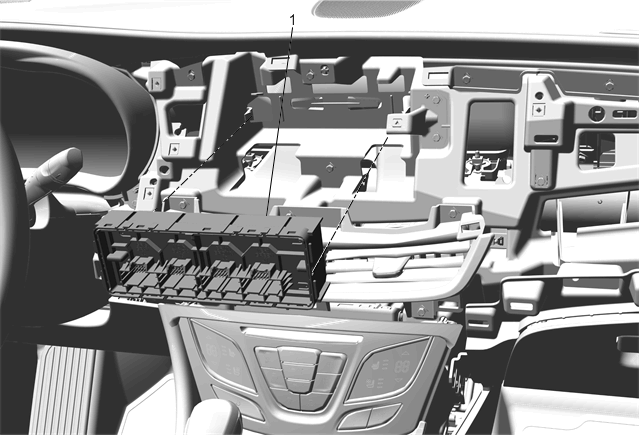

  15. Fig 7: Heater and Air Conditioning Remote Control
    GM3822126Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Do not install the instrument panel trim plate. It will be installed with the instrument panel upper trim panel procedure.

  16. Heater and Air Conditioning Remote Control Replacement 9 - Install
  17. Fig 8: Disc Player
    GM3830011Courtesy of GENERAL MOTORS COMPANY
  18. Disc Player Replacement (2) - Install

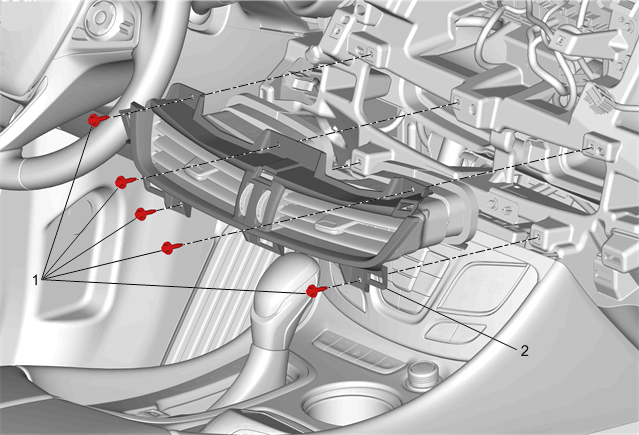

  19. Fig 9: Instrument Panel Outer Air Outlet Bezel (Center)
    GM3775123Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Do not install the instrument panel trim pad. It will be installed with the instrument panel compartment procedure.

  20. Instrument Panel Outer Air Outlet Bezel Replacement (Center) (2) - Install
  21. Fig 10: Instrument Panel Lower Center Trim Plate Applique
    GM3767480Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Do not install the front floor console trim plate. It will be installed with the front floor console procedure.

  22. Instrument Panel Lower Center Trim Plate Applique Replacement  (1) - Install
  23. Fig 11: Radio Front Speaker
    GM3824794Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Do not install the instrument panel extension. It will be installed with the instrument panel upper trim panel procedure.

  24. Radio Front Speaker Replacement (2) - Install
  25. Fig 12: Instrument Cluster
    GM3909697Courtesy of GENERAL MOTORS COMPANY
  26. Instrument Cluster Replacement (2) - Install

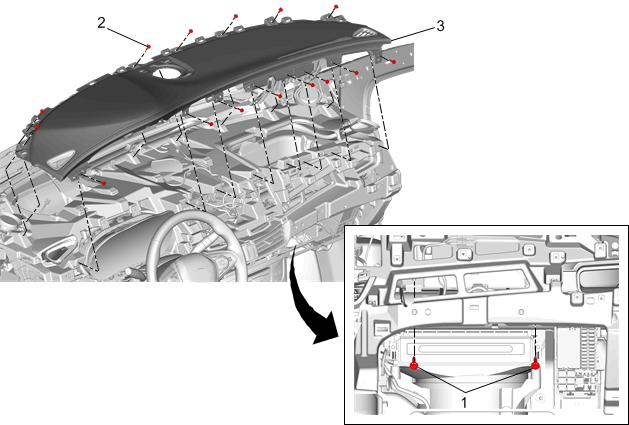

  27. Fig 13: Instrument Panel Upper Trim Panel
    GM3901981Courtesy of GENERAL MOTORS COMPANY
  28. Instrument Panel Upper Trim Panel Replacement  (3) - Install
  29. Fig 14: Radio Front Center Speaker
    GM3824801Courtesy of GENERAL MOTORS COMPANY
  30. Radio Front Center Speaker Replacement (2) - Install
  31. Fig 15: Radio Front Center Speaker Grille
    GM3824797Courtesy of GENERAL MOTORS COMPANY
  32. Radio Front Center Speaker Grille Replacement (1) - Install

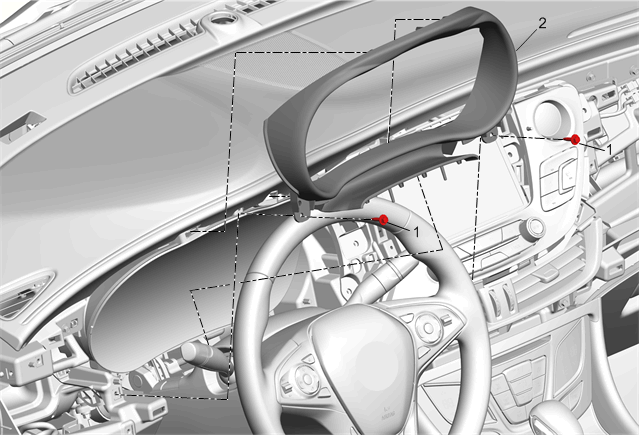

  33. Fig 16: Instrument Panel Cluster Trim Plate
    GM3858892Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Do not install the instrument panel pad. It will be installed with the instrument panel compartment procedure. Do not install the steering column upper trim cover. It will be installed with the steering column procedure.

  34. Instrument Panel Cluster Trim Plate Replacement  (2) - Install

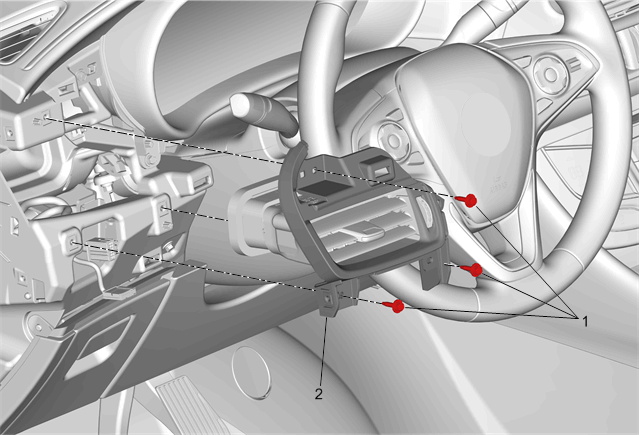

  35. Fig 17: Instrument Panel Outer Air Outlet Bezel - Left Side
    GM3775370Courtesy of GENERAL MOTORS COMPANY
  36. Instrument Panel Outer Air Outlet Bezel Replacement - Left Side (2) - Install

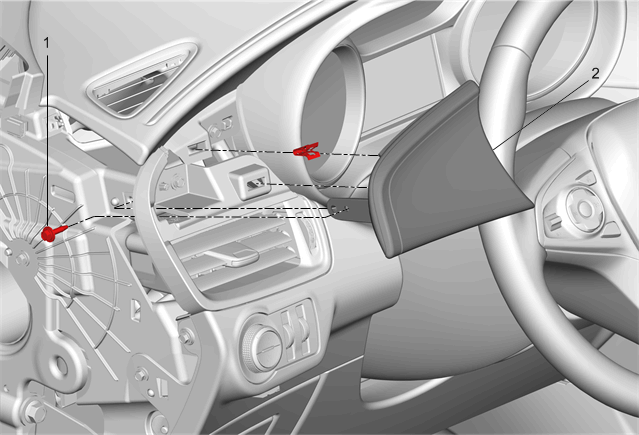

  37. Fig 18: Instrument Panel Lower Trim Plate Applique - Left Side
    GM3762654Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Do not install the instrument panel outer trim cover. It will be installed with the instrument panel knee bolster procedure.

  38. Instrument Panel Lower Trim Plate Applique Replacement - Left Side  (2) - Install

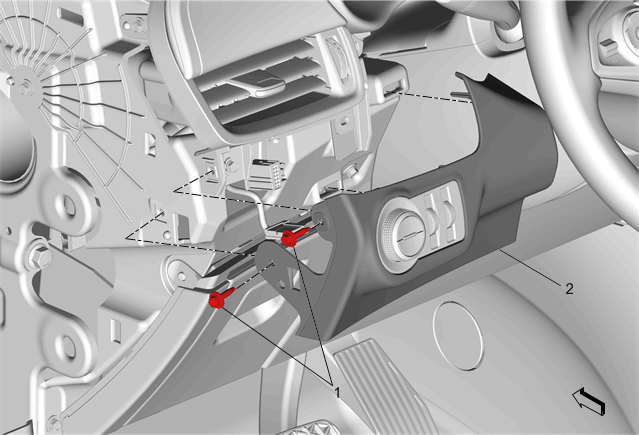

  39. Fig 19: Instrument Panel Trim Plate Applique
    GM3767032Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Do not install the instrument panel outer trim cover. It will be installed with the instrument panel knee bolster procedure.

  40. Instrument Panel Trim Plate Applique Replacement  (2) - Install

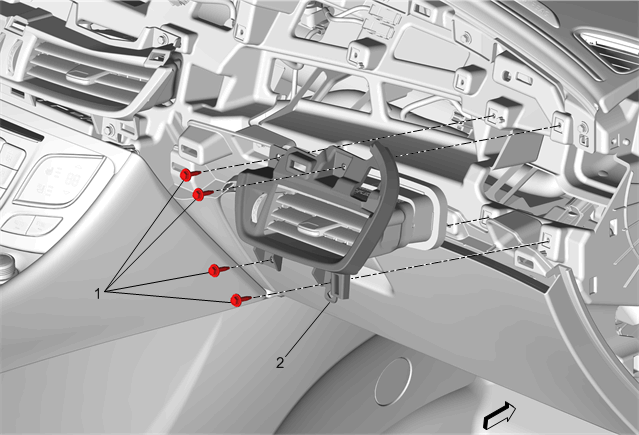

  41. Fig 20: Instrument Panel Outer Air Outlet Bezel - Right Side
    GM3775114Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Do not install the instrument panel pad. It will be installed with the instrument panel compartment procedure.

  42. Instrument Panel Outer Air Outlet Bezel Replacement - Right Side (2) - Install

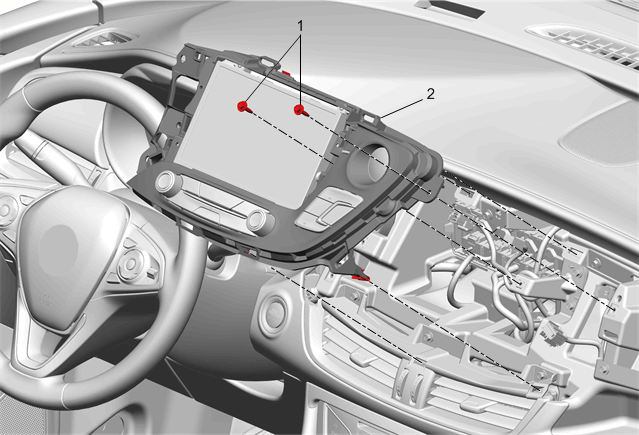

  43. Fig 21: Instrument Panel Trim Plate
    GM3766574Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Do not install the right instrument panel lower trim plate applique. It will be installed with the instrument panel compartment procedure.

  44. Instrument Panel Trim Plate Replacement  (2) - Install

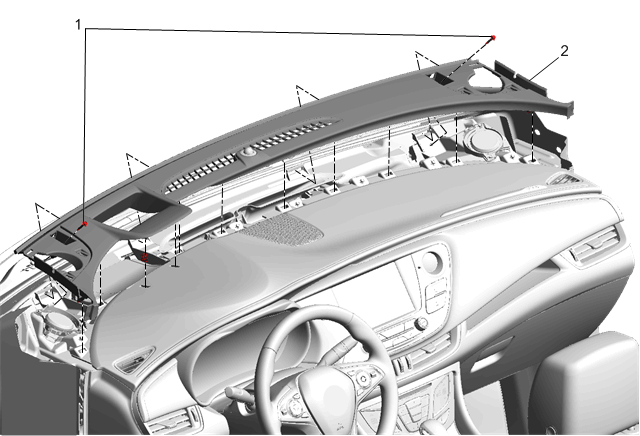

  45. Fig 22: Instrument Panel Extension
    GM3973918Courtesy of GENERAL MOTORS COMPANY
  46. Instrument Panel Extension Replacement (UEU) Instrument Panel Extension Replacement (UV6)  (2) - Install

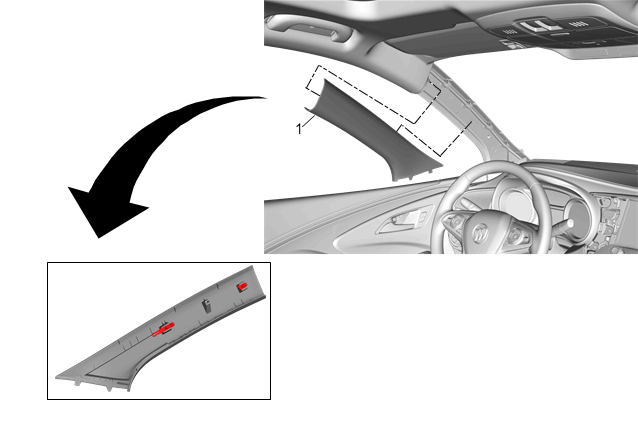

  47. Fig 23: Windshield Garnish Molding
    GM3920234Courtesy of GENERAL MOTORS COMPANY
  48. Windshield Garnish Molding Replacement (1) - Install
  49. Fig 24: Radio Front Speaker Grille
    GM3824793Courtesy of GENERAL MOTORS COMPANY
  50. Radio Front Speaker Grille Replacement (1) - Install

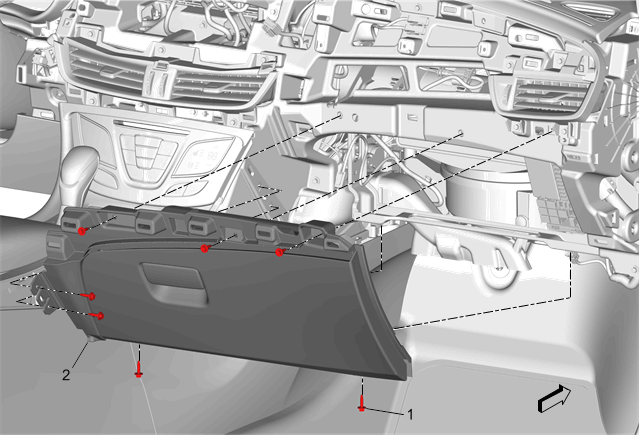

  51. Fig 25: Instrument Panel Compartment
    GM3816555Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Do not install the right front floor console applique. It will be installed with the front floor console procedure.

  52. Instrument Panel Compartment Replacement  (2) - Install

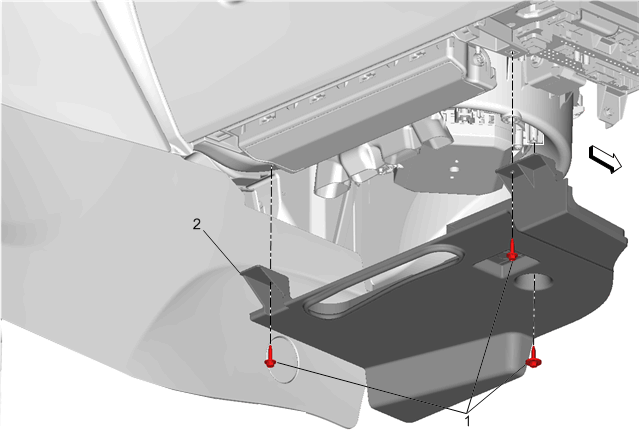

  53. Fig 26: Instrument Panel Lower Trim Panel Insulator - Right Side
    GM3970695Courtesy of GENERAL MOTORS COMPANY
  54. Instrument Panel Lower Trim Panel Insulator Replacement - Right Side  (2) - Install

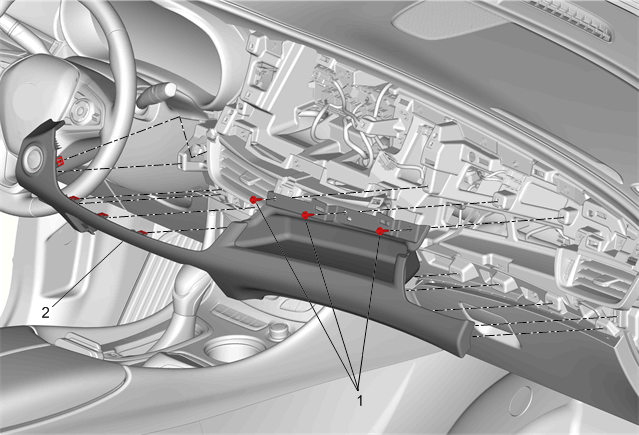

  55. Fig 27: Instrument Panel Trim Pad
    GM3768253Courtesy of GENERAL MOTORS COMPANY
  56. Instrument Panel Trim Pad Replacement  (2) - Install

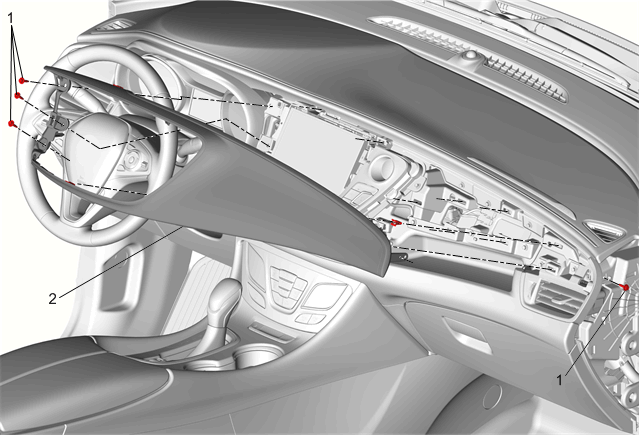

  57. Fig 28: Instrument Panel Lower Trim Plate Applique - Right Side
    GM3766068Courtesy of GENERAL MOTORS COMPANY
  58. Instrument Panel Lower Trim Plate Applique Replacement - Right Side  (2) - Install

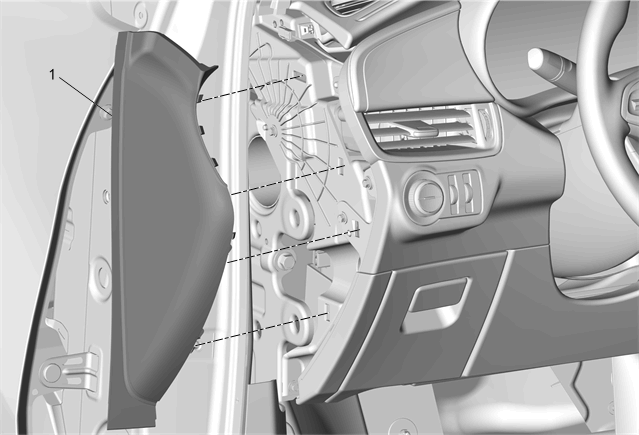

  59. Fig 29: Instrument Panel Outer Trim Cover
    GM3762646Courtesy of GENERAL MOTORS COMPANY
  60. Instrument Panel Outer Trim Cover Replacement @Right Side (1) - Install

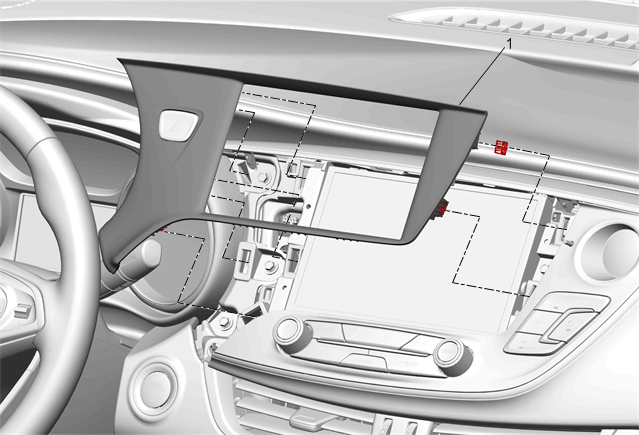

  61. Fig 30: Instrument Panel Center Trim Plate Applique
    GM3765402Courtesy of GENERAL MOTORS COMPANY
  62. Instrument Panel Center Trim Plate Applique Replacement (4.2 inch Display) Instrument Panel Center Trim Plate Applique Replacement (8 inch Display)  (1) - Install
  63. Fig 31: Steering Column
    GM3898444Courtesy of GENERAL MOTORS COMPANY
  64. Steering Column Replacement (1) - Install
  65. Fig 32: Intermediate Steering Shaft
    GM3924758Courtesy of GENERAL MOTORS COMPANY
  66. Intermediate Steering Shaft Replacement @Intermediate Steering Shaft Upper Bolt (1) - Install
  67. Fig 33: Floor Front Air Outlet Duct - Left Side
    GM3821422Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Do not install the left instrument panel lower trim panel insulator. It will be installed with the instrument panel knee bolster preliminary procedure.

  68. Floor Front Air Outlet Duct Replacement - Left Side (2) - Install

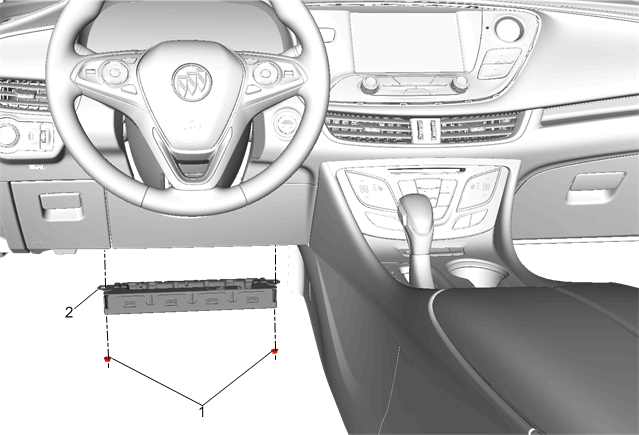

  69. Fig 34: Instrument Panel Lower Airbag - Driver Side
    GM3980675Courtesy of GENERAL MOTORS COMPANY
  70. Instrument Panel Lower Airbag Replacement - Driver Side (2) - Install
  71. Fig 35: Instrument Panel Knee Bolster
    GM3906064Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Do not install the left front floor console applique. It will be installed with the front floor console preliminary procedure.

  72. Instrument Panel Knee Bolster Replacement  (2) - Install

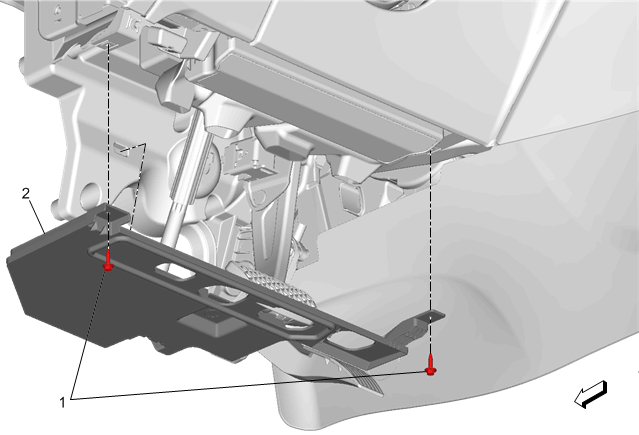

  73. Fig 36: Instrument Panel Lower Trim Panel Insulator - Left Side
    GM3970684Courtesy of GENERAL MOTORS COMPANY
  74. Instrument Panel Lower Trim Panel Insulator Replacement - Left Side  (2) - Install
  75. Fig 37: Instrument Panel Outer Trim Cover
    GM3762646Courtesy of GENERAL MOTORS COMPANY
  76. Instrument Panel Outer Trim Cover Replacement @Left Side (1) - Install
  77. Fig 38: Steering Column Lower Trim Cover
    GM3909980Courtesy of GENERAL MOTORS COMPANY
  78. Steering Column Lower Trim Cover Replacement (2) - Install
  79. Fig 39: Steering Column Upper Trim Cover
    GM4622444Courtesy of GENERAL MOTORS COMPANY
  80. Steering Column Upper Trim Cover Replacement (1) - Install
  81. Enable the SIR System. SIR Disabling and Enabling
  82. Fig 40: Front Floor Console
    GM3914415Courtesy of GENERAL MOTORS COMPANY
  83. Front Floor Console Replacement  (3) - Install

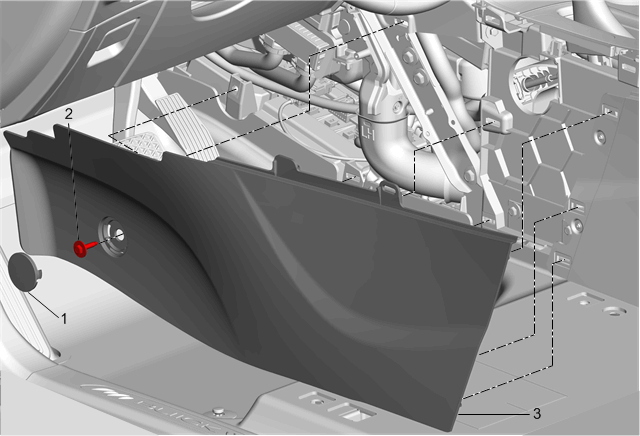

  84. Fig 41: Front Floor Console Extension Panel - Left Side
    GM3808304Courtesy of GENERAL MOTORS COMPANY
  85. Front Floor Console Extension Panel Replacement - Left Side  (3) - Install

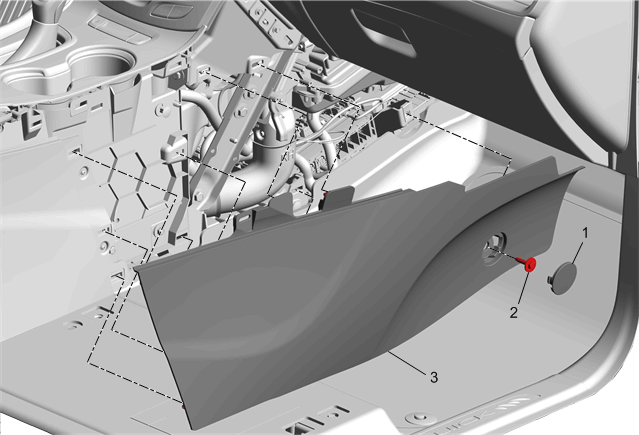

  86. Fig 42: Front Floor Console Extension Panel - Right Side
    GM3813200Courtesy of GENERAL MOTORS COMPANY
  87. Front Floor Console Extension Panel Replacement - Right Side  (3) - Install

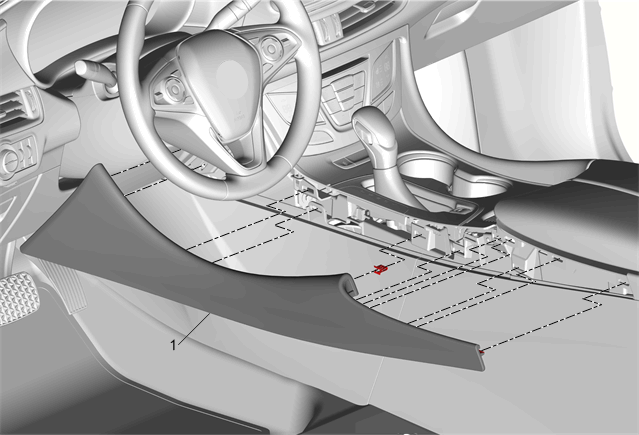

  88. Fig 43: Front Floor Console Applique - Left Side
    GM3794748Courtesy of GENERAL MOTORS COMPANY
  89. Front Floor Console Applique Replacement - Left Side  (1) - Install

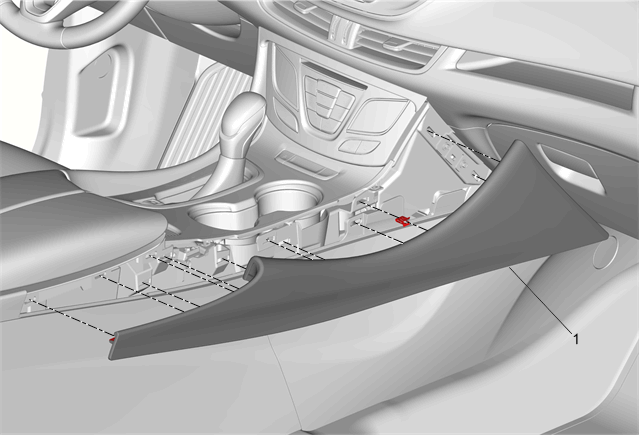

  90. Fig 44: Front Floor Console Applique - Right Side
    GM3795840Courtesy of GENERAL MOTORS COMPANY
  91. Front Floor Console Applique Replacement - Right Side  (1) - Install

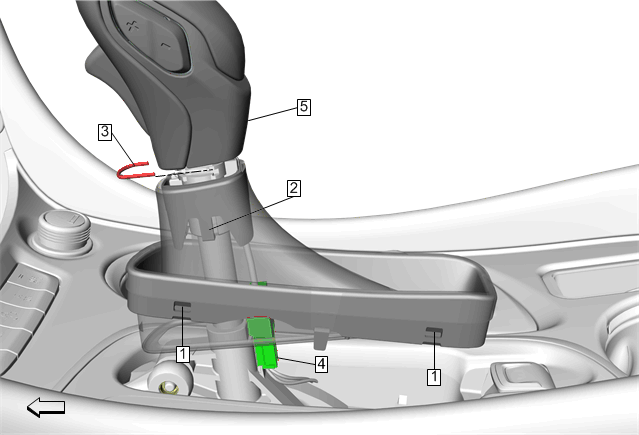

  92. Fig 45: Transmission Control Lever Knob
    GM3954101Courtesy of GENERAL MOTORS COMPANY
  93. Transmission Control Lever Knob Replacement (5) - Install
