Remote CD Changer
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Remote CD Changer

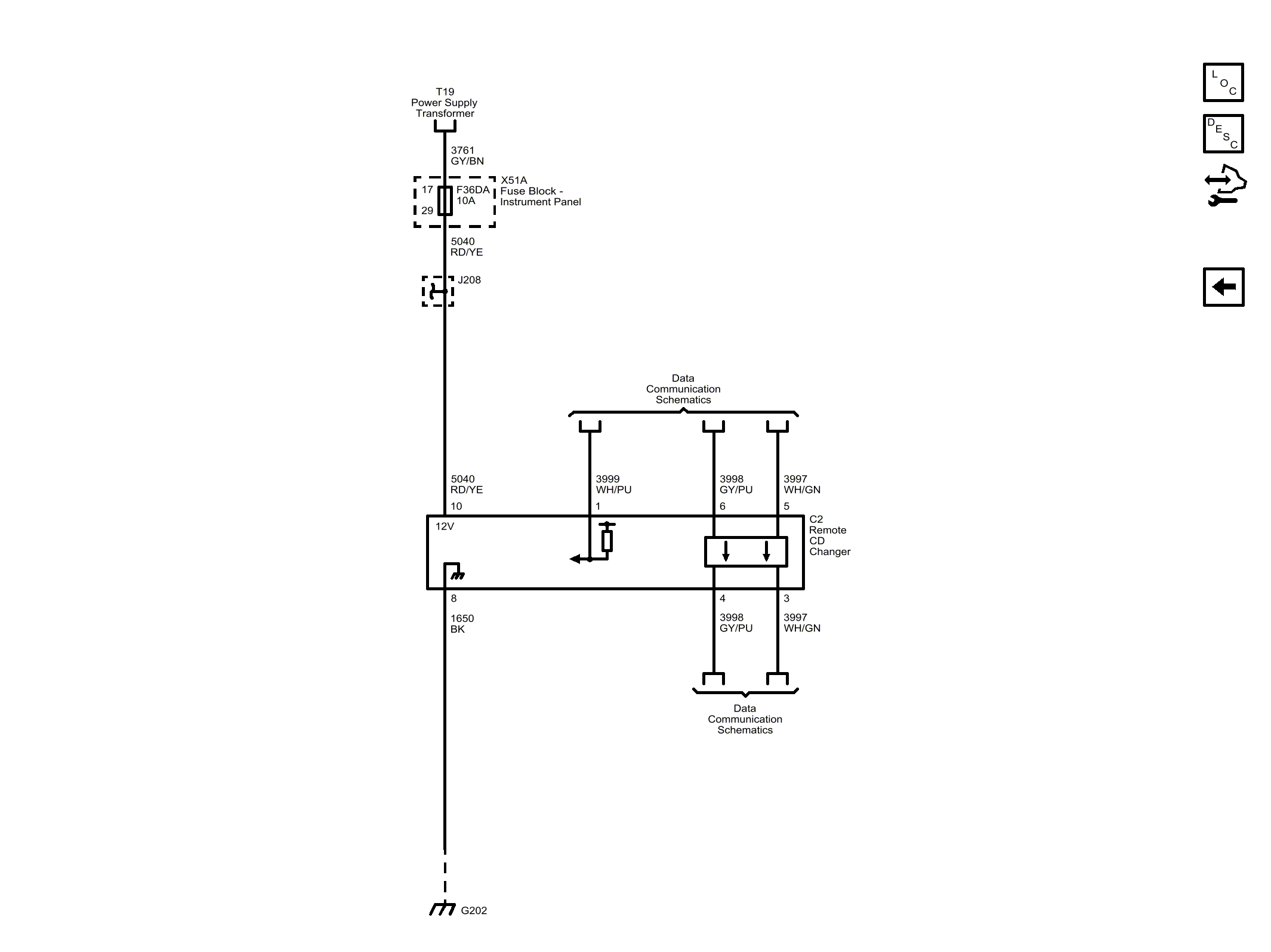

Fig 1: Remote CD Changer
Courtesy of GENERAL MOTORS COMPANY
