Body Control Module Bracket Replacement

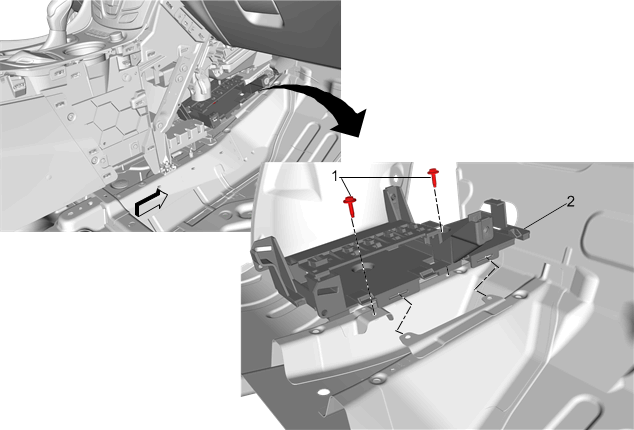

Fig 1: Body Control Module Bracket

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Body Control Module Replacement
1	Body Control Module Bracket Bolt CAUTION: Refer to Fastener Caution . Tighten 9 N.m (80 lb in)
2	Body Control Module Bracket Procedure Transfer components as necessary.
