Transmission Fluid Cooler Hose/Pipe Replacement

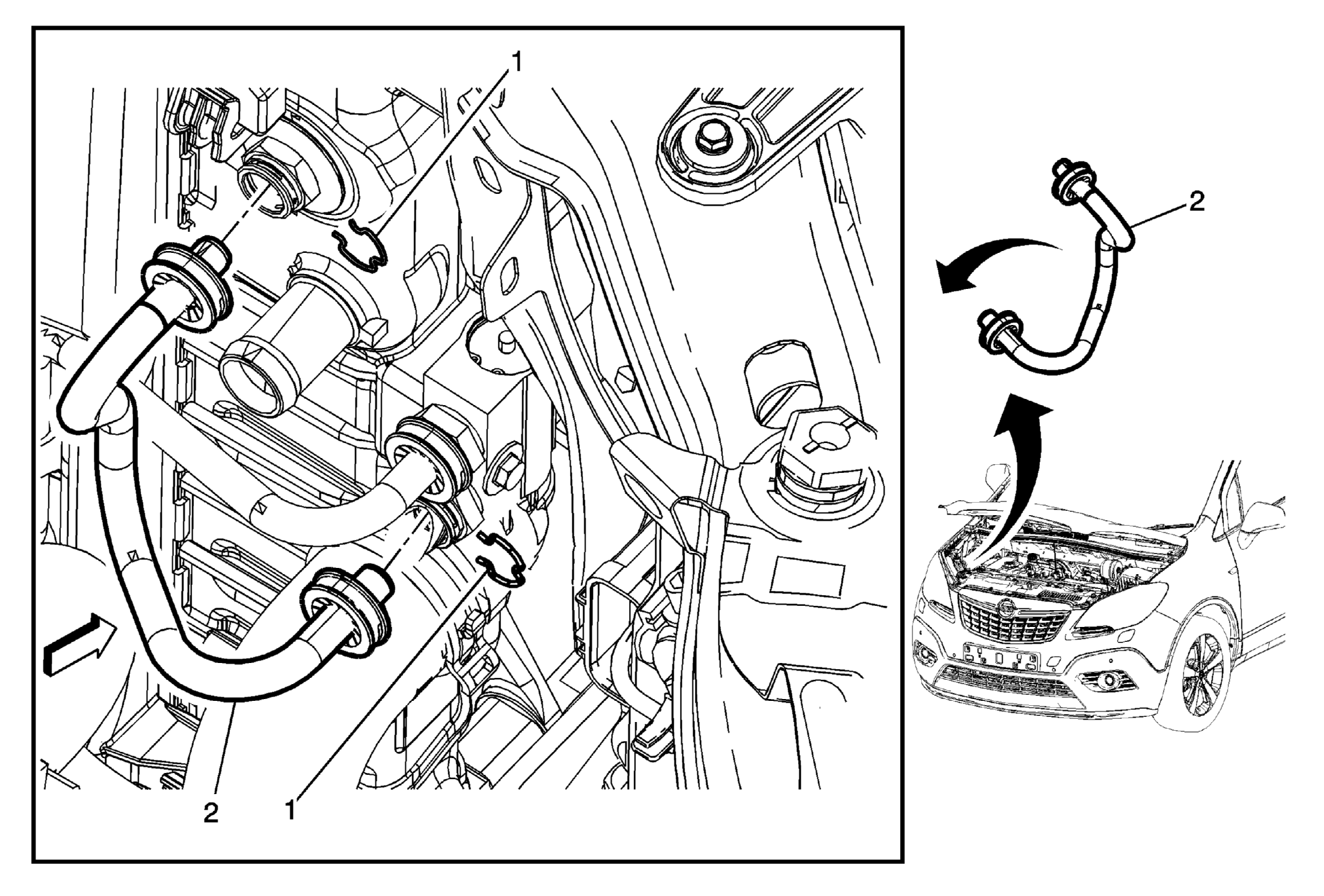

Fig 1: Transmission Fluid Cooler Hose/Pipe
GM2812522Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Remove the air cleaner inlet duct. Refer to AIR CLEANER INLET DUCT REPLACEMENT LUVAIR CLEANER INLET DUCT REPLACEMENT LE2 .
  2. Remove the power steering pump, if equipped. Refer to Power Steering Pump Replacement .
1 Transmission Fluid Cooler Pipe Quick Disconnect Retaining Clip (Qty: 2)
Procedure
Remove the retaining clip from the quick connect fitting. Refer to Transmission Fluid Cooler Hose/Pipe Quick-Connect Fitting Disconnection and Connection .
2 Transmission Fluid Cooler Pipe

Procedure

  1. Adjust the transmission fluid level. Refer to Transmission Fluid Level and Condition Check .
  2. Inspect for fluid leaks.
