Warm Up Three-Way Catalytic Converter Replacement (LE2)

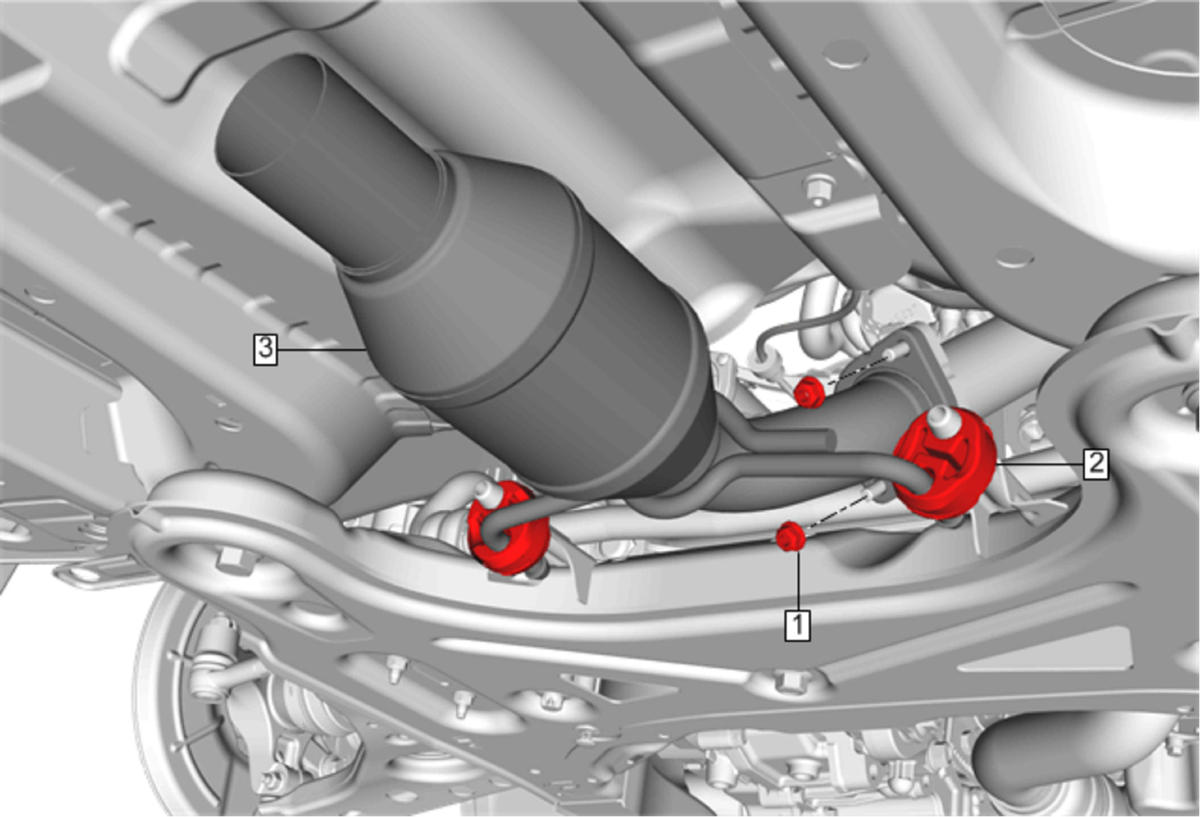

Fig 1: Warm Up Three-Way Catalytic Converter (LE2)
GM4110193Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
WARNING:

In order to avoid being burned, do not service the exhaust system while it is still hot. Service the system when it is cool.

WARNING:

Avoid contact with HOT components. Wear safety glasses and protective gloves to avoid personal injury.

Preliminary Procedure Exhaust Muffler Replacement (LE2)
1 Exhaust Front Pipe Nut
CAUTION:

Refer to Fastener Caution .


Tighten
17 N.m (13 lb ft)
2 Exhaust Isolator
Procedure
Clean and lubricate the exhaust isolators for ease of installation.
3 Warm Up Three-Way Catalytic Converter
Procedure
Install a NEW gasket.
