Removal Procedure

  1. Disconnect the battery negative cable. Battery Negative Cable Disconnection and Connection (without KL9) Battery Negative Cable Disconnection and Connection (with KL9)

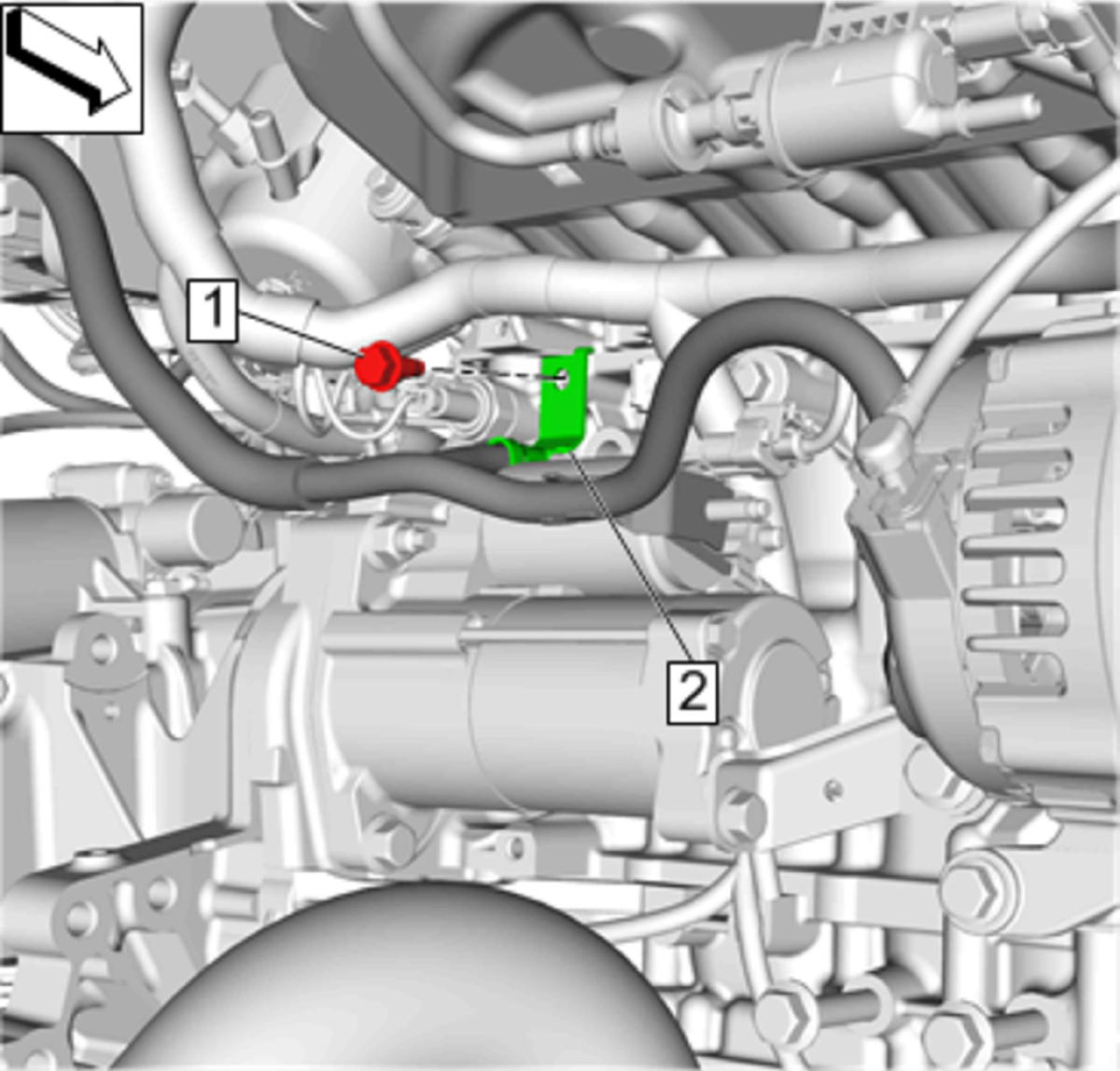

    2. Fig 1: Battery Negative Cable
    GM4109441Courtesy of GENERAL MOTORS COMPANY
  2. Battery Negative Cable Ground Fastener (1) - Remove
  3. Battery Negative Cable (2) - Remove

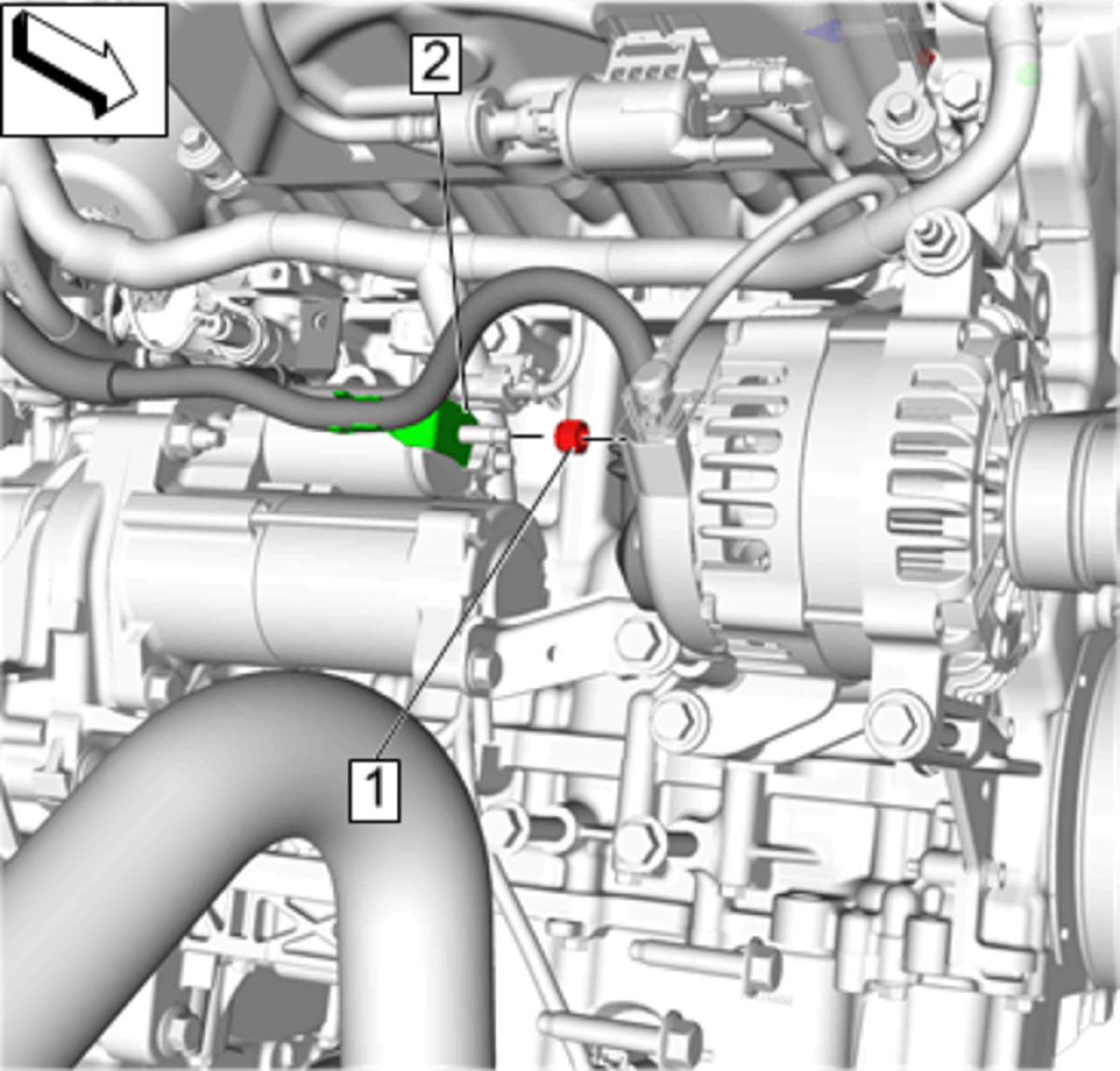

    4. Fig 2: Battery Positive Cable
    GM4109448Courtesy of GENERAL MOTORS COMPANY
  4. Starter Solenoid Cable Nut (1) - Remove
  5. Battery Positive Cable (2) - Remove

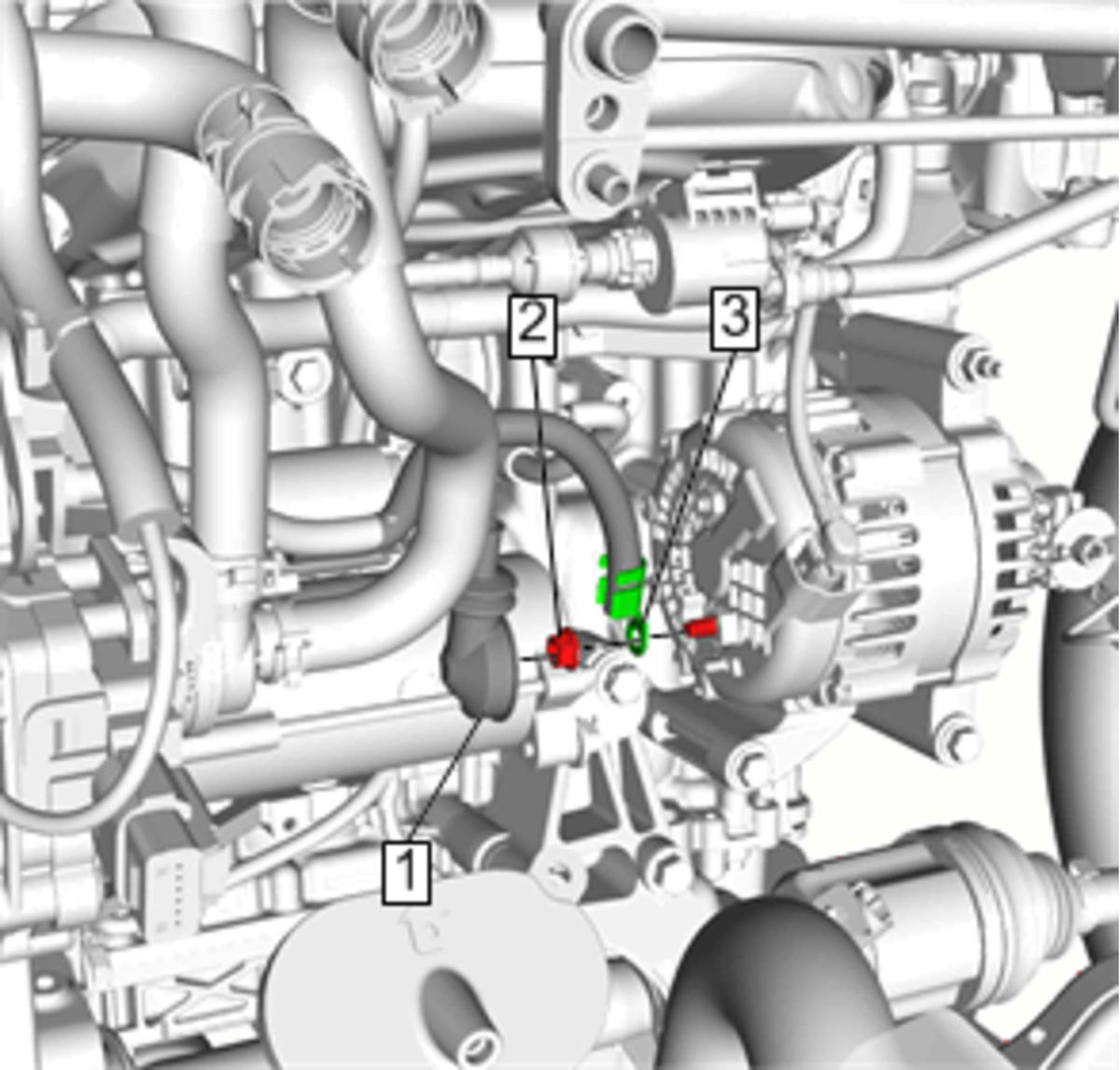

    6. Fig 3: Battery Positive Cable
    GM4109451Courtesy of GENERAL MOTORS COMPANY
  6. Remove the positive battery cable protective cap from the generator terminal.(1)
  7. Battery Positive Cable Nut (2) - Remove
  8. Battery Positive Cable (3) - Remove

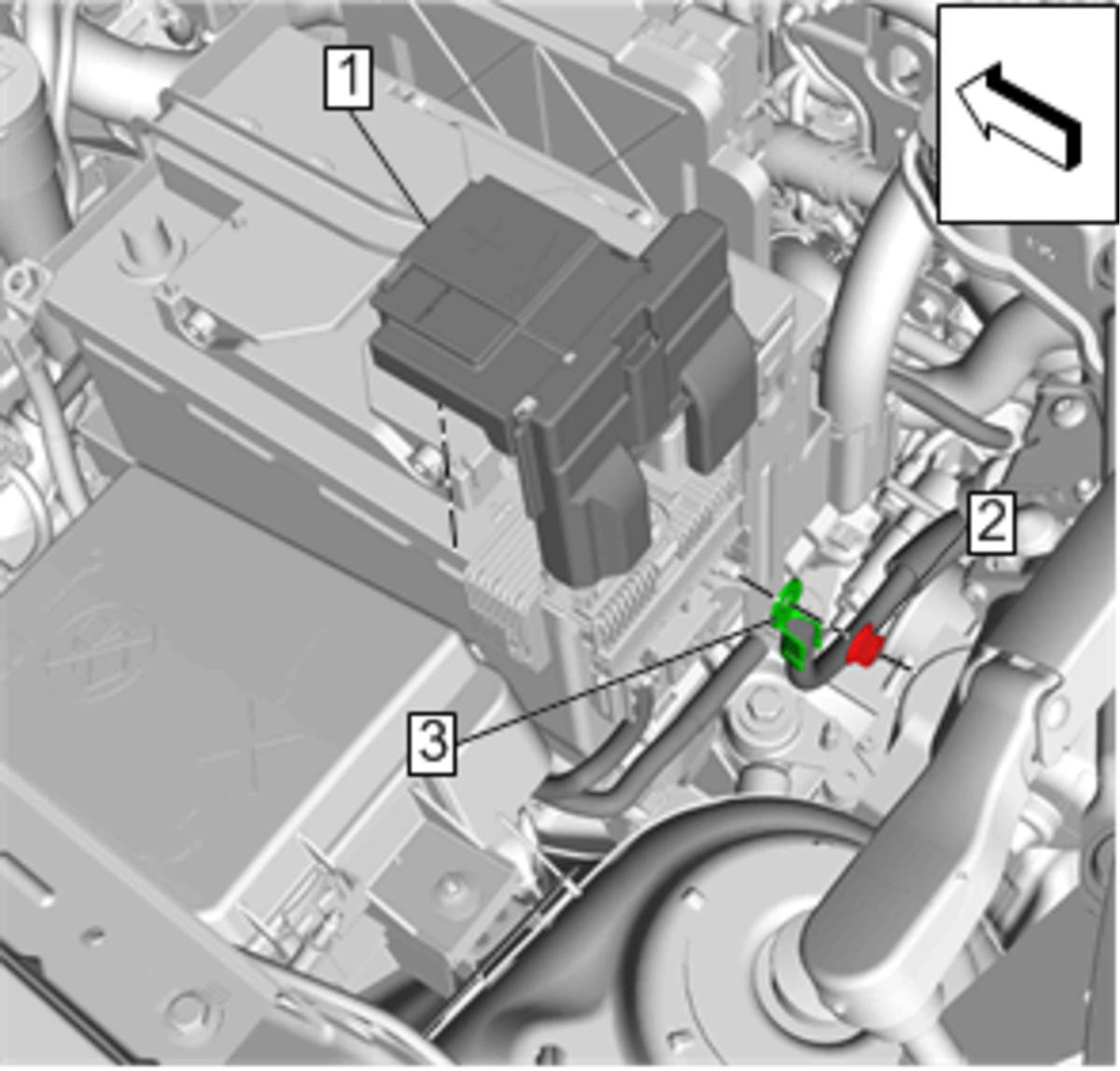

    9. Fig 4: Power Distributor Fuse Block Cover
    GM4109639Courtesy of GENERAL MOTORS COMPANY
  9. Power Distributor Fuse Block Cover (1) - Remove
  10. Battery Fuse Block Battery Positive Cable Nut (2) - Remove
  11. Battery Positive Cable (3) - Remove
  12. Remove the battery tray. Battery Tray Replacement

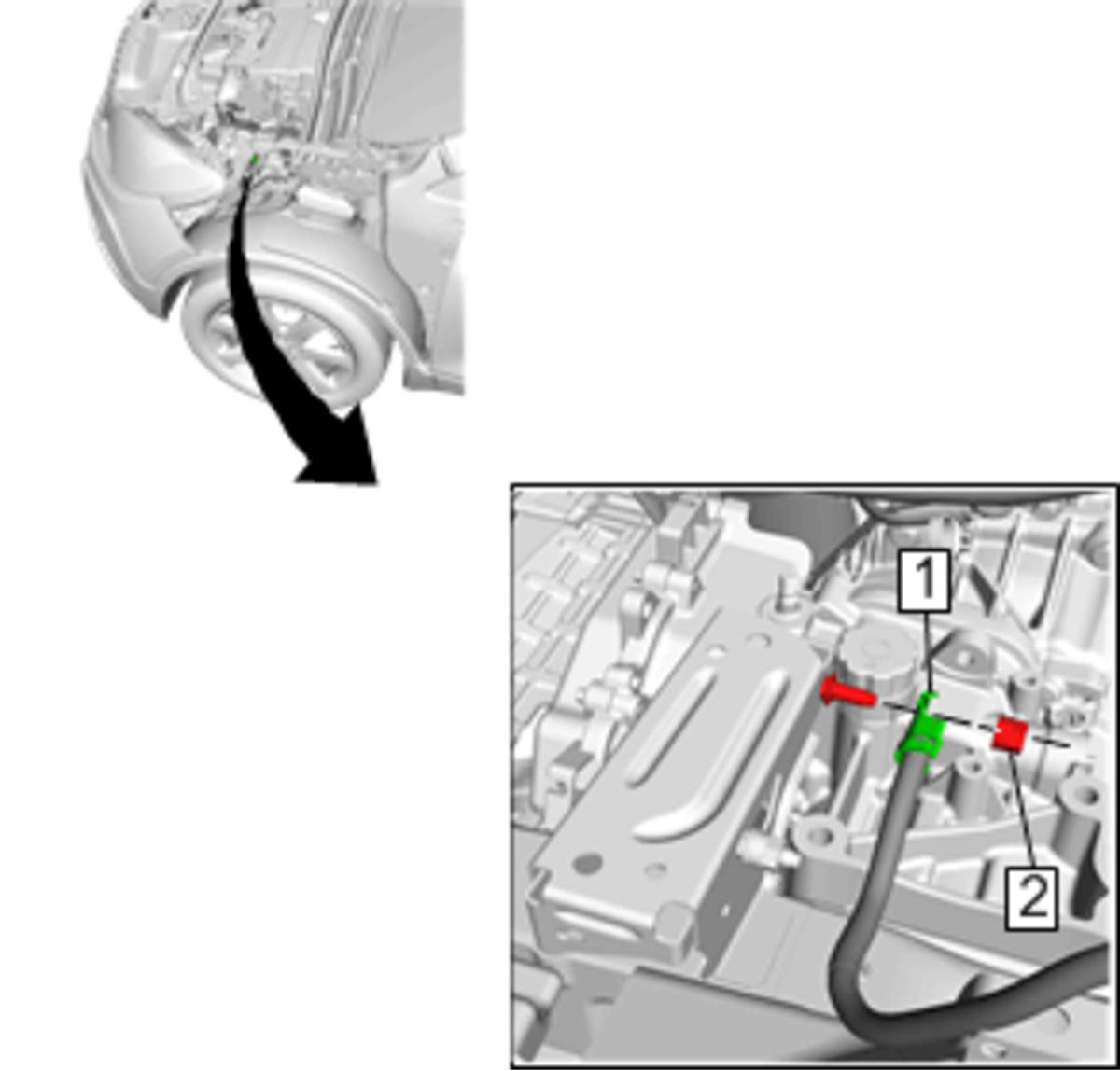

    13. Fig 5: Battery Negative Cable
    GM4109640Courtesy of GENERAL MOTORS COMPANY
  13. Battery Negative Cable Frame Ground Fastener (2) - Remove
  14. Battery Negative Cable (1) - Remove

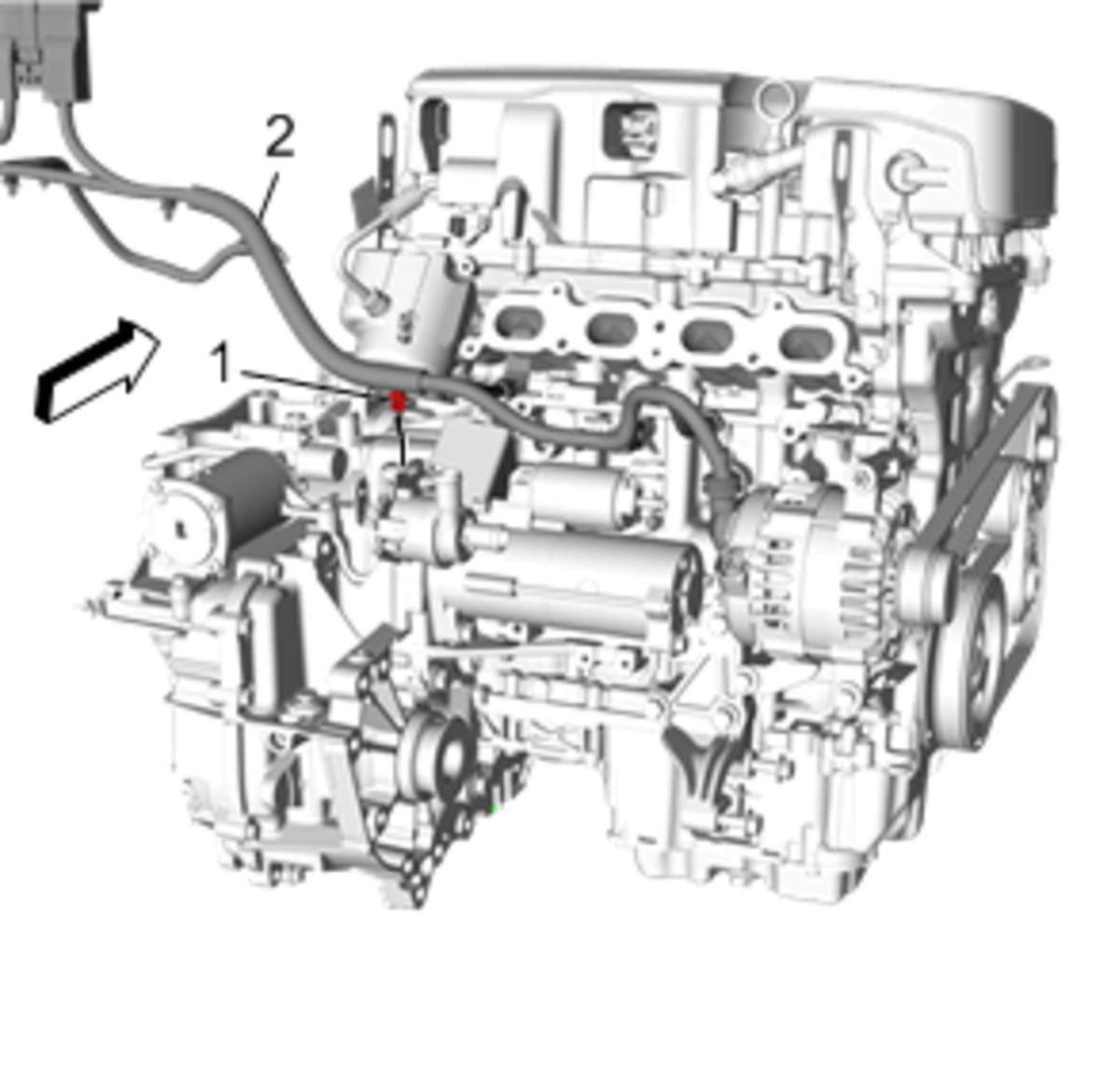

    15. Fig 6: Battery Positive And Negative Cable
    GM4109453Courtesy of GENERAL MOTORS COMPANY
  15. Remove the Battery Positive and Negative Cable Retainer (1)
  16. Remove the battery positive and negative cable.(2)
