Driver Window
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Driver Window

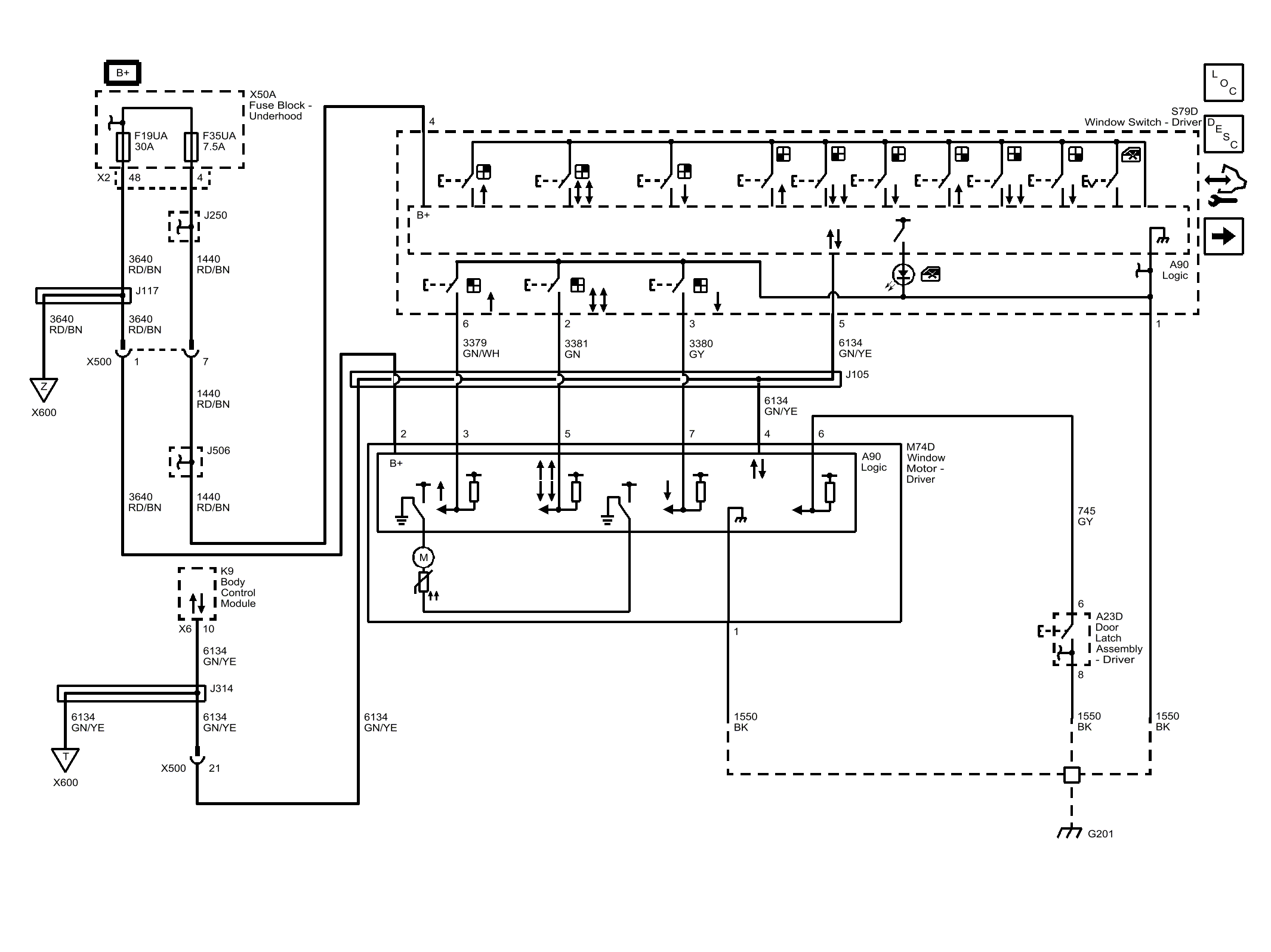

Fig 1: Driver Window
Courtesy of GENERAL MOTORS COMPANY
