Navigation System
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Navigation System

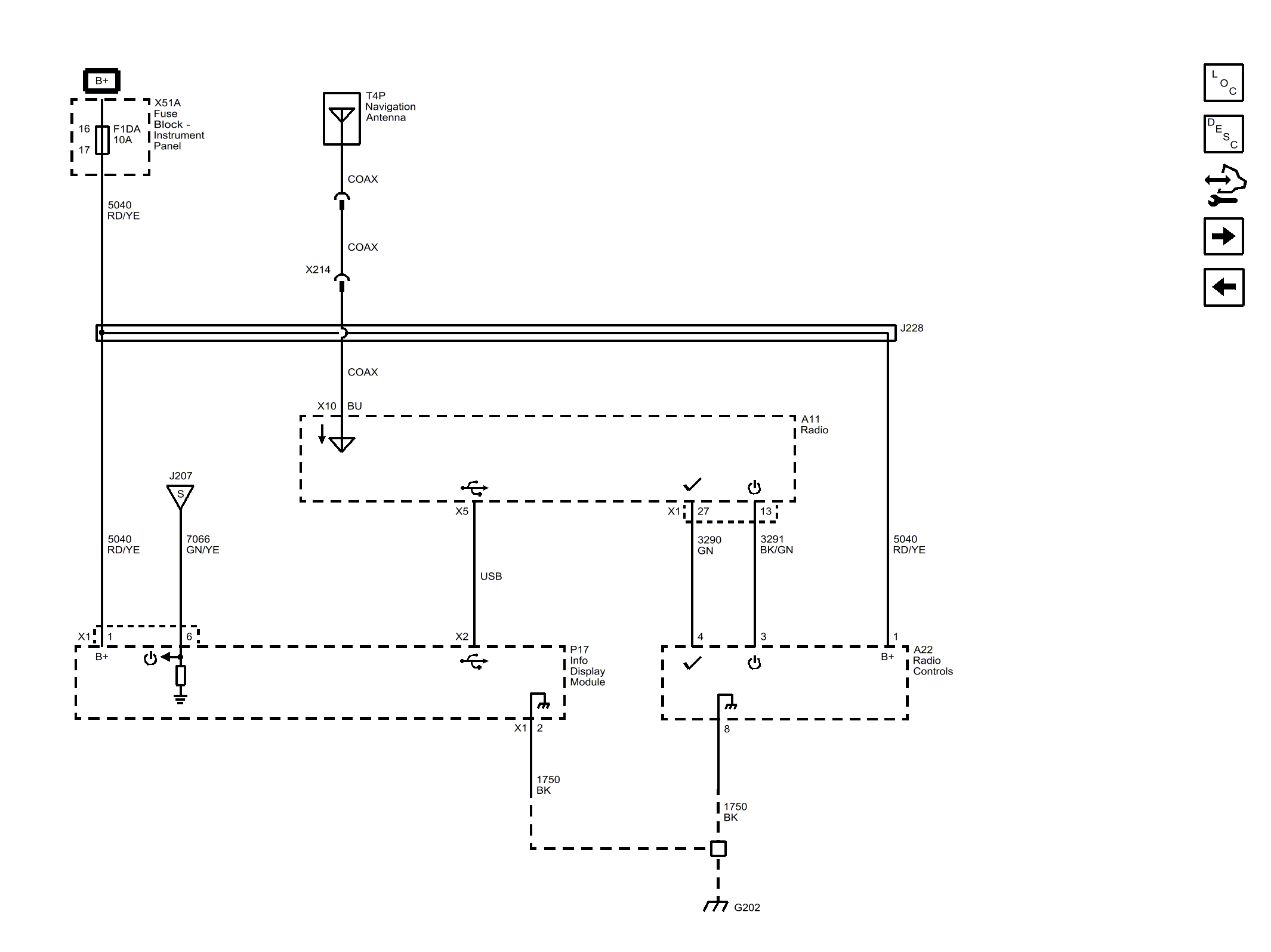

Fig 1: Navigation System
Courtesy of GENERAL MOTORS COMPANY
