Rear Windows
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Rear Windows

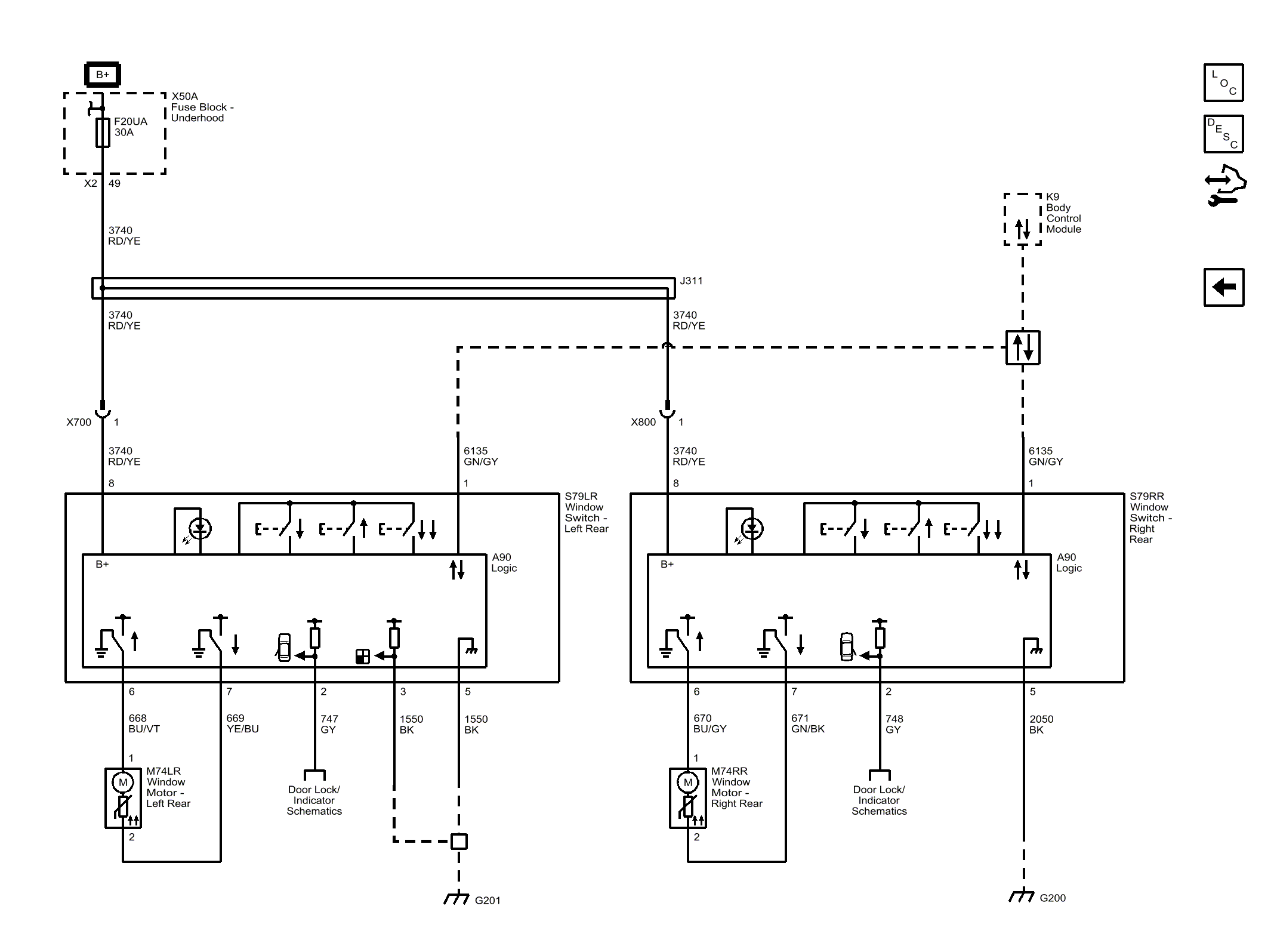

Fig 1: Rear Windows
Courtesy of GENERAL MOTORS COMPANY
