Rear Compartment Lid Release Switch Replacement

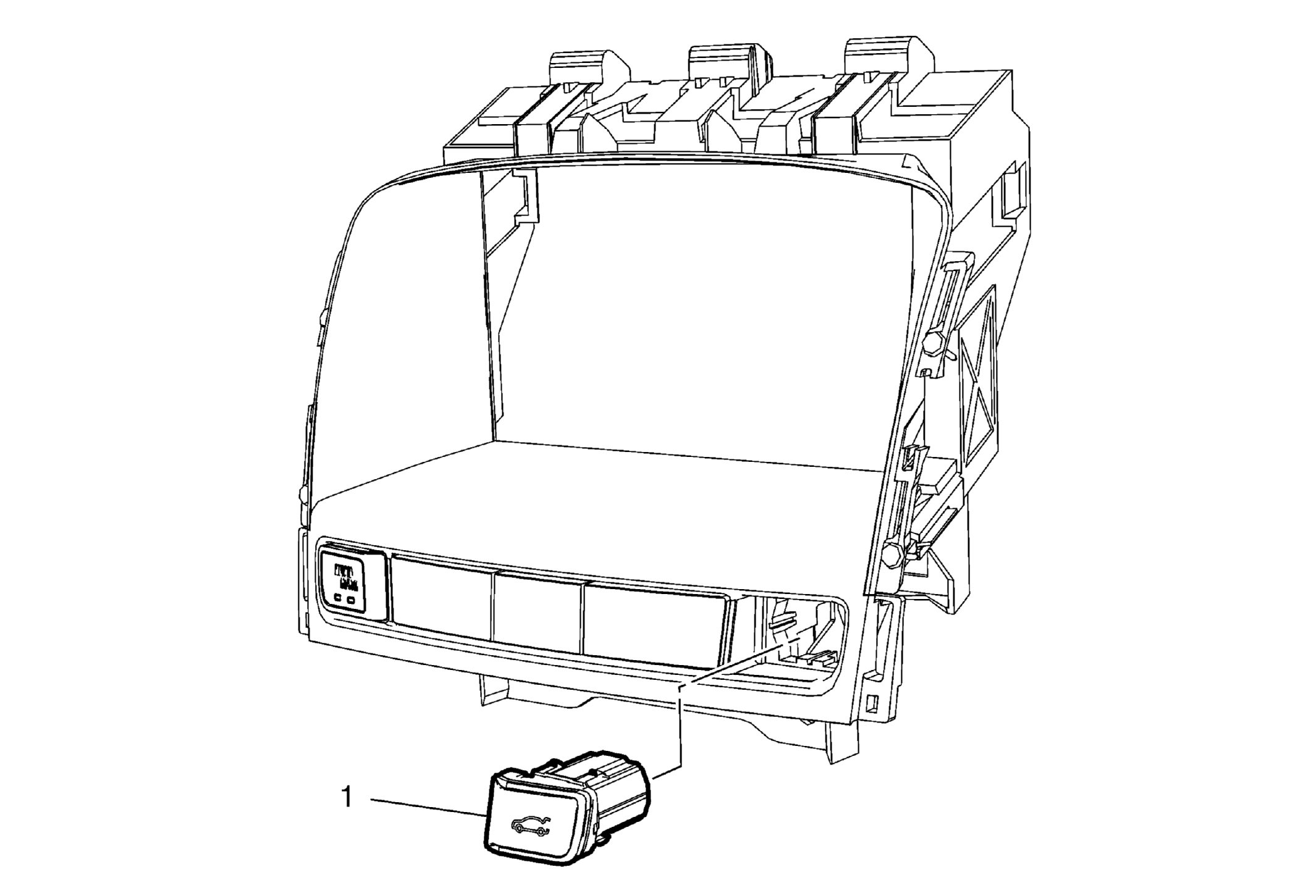

Fig 1: Rear Compartment Lid Release Switch
GM2743371Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedures
Remove the instrument panel upper center trim panel. Refer to Instrument Panel Upper Center Trim Panel Replacement .
1 Rear Compartment Lid Release Switch
Procedure
Unlock retaining tabs.
