Auxiliary Audio Input Wiring Schematics

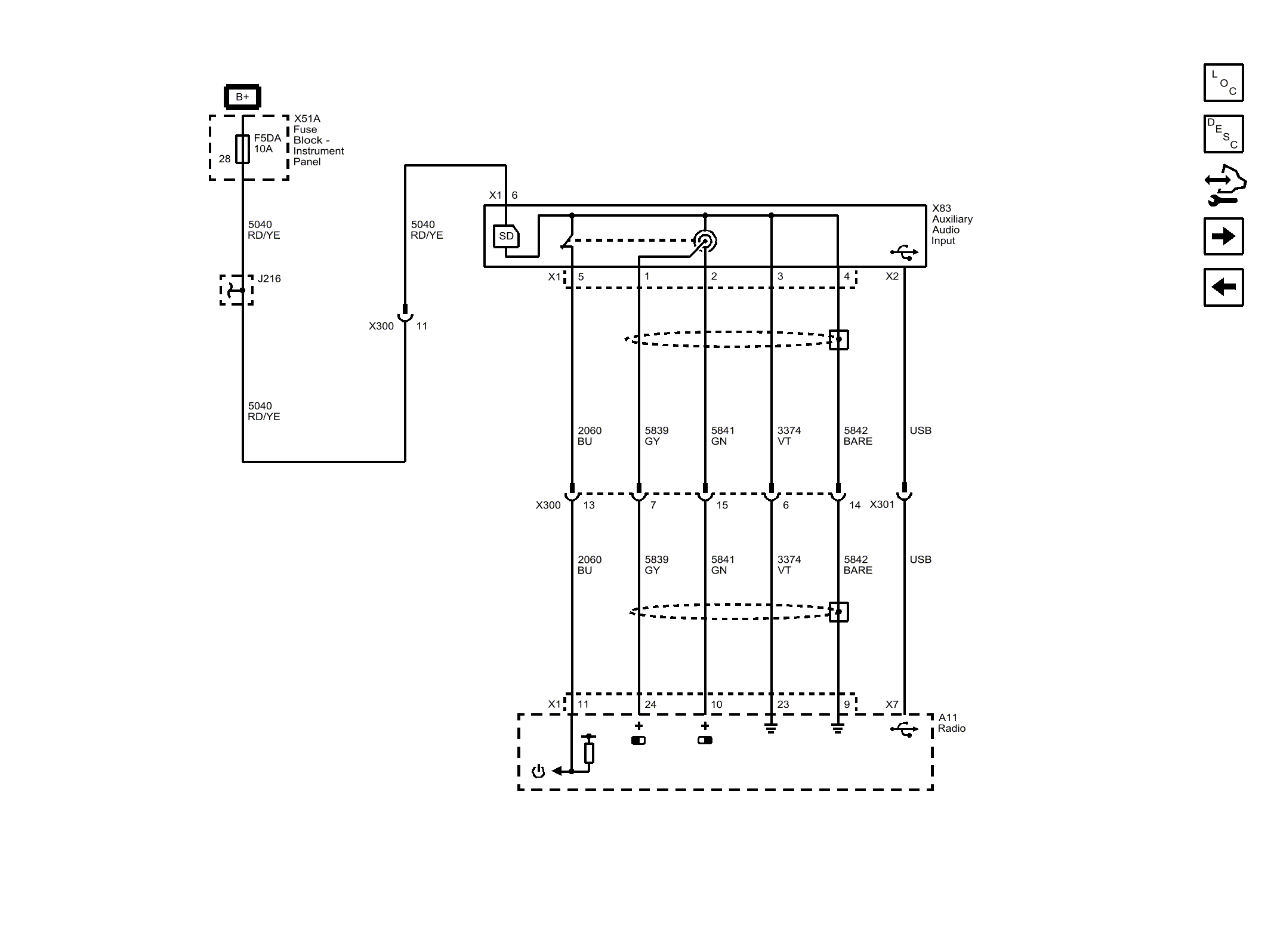

Fig 1: Auxiliary Audio Input Wiring Schematic
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
