Installation Procedure

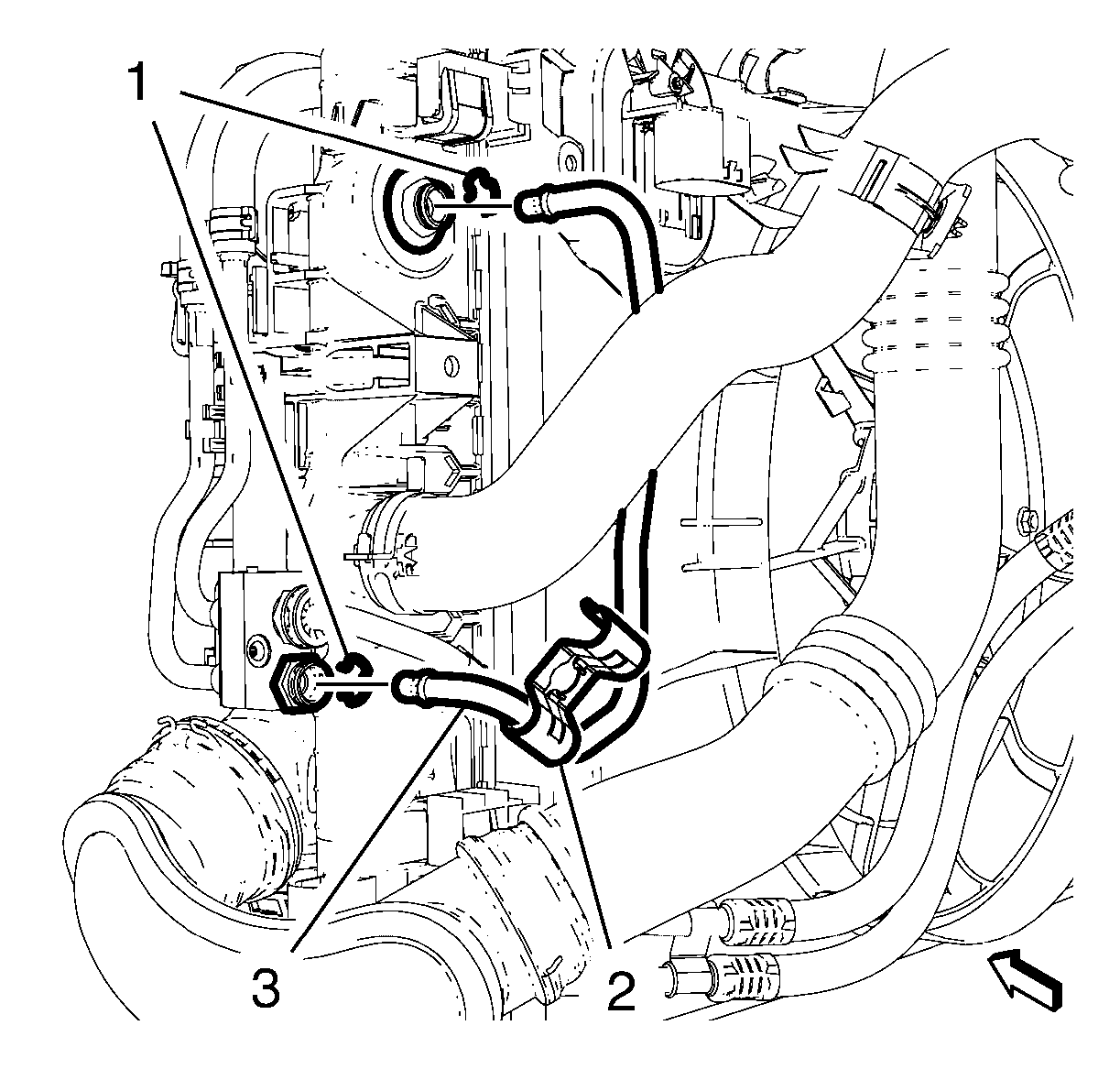

    Fig 1: Transmission Fluid Cooler Pipe
    GM2537980Courtesy of GENERAL MOTORS COMPANY
  1. Install transmission fluid cooler pipe (2).
    2. CAUTION:

    Refer to Component Fastener Tightening Caution .

  2. Connect transmission fluid cooler pipe (2) to transmission fluid auxiliary cooler and radiator. Install 2 retainers (1). Refer to Transmission Fluid Cooler Hose/Pipe Quick-Connect Fitting Disconnection and Connection .

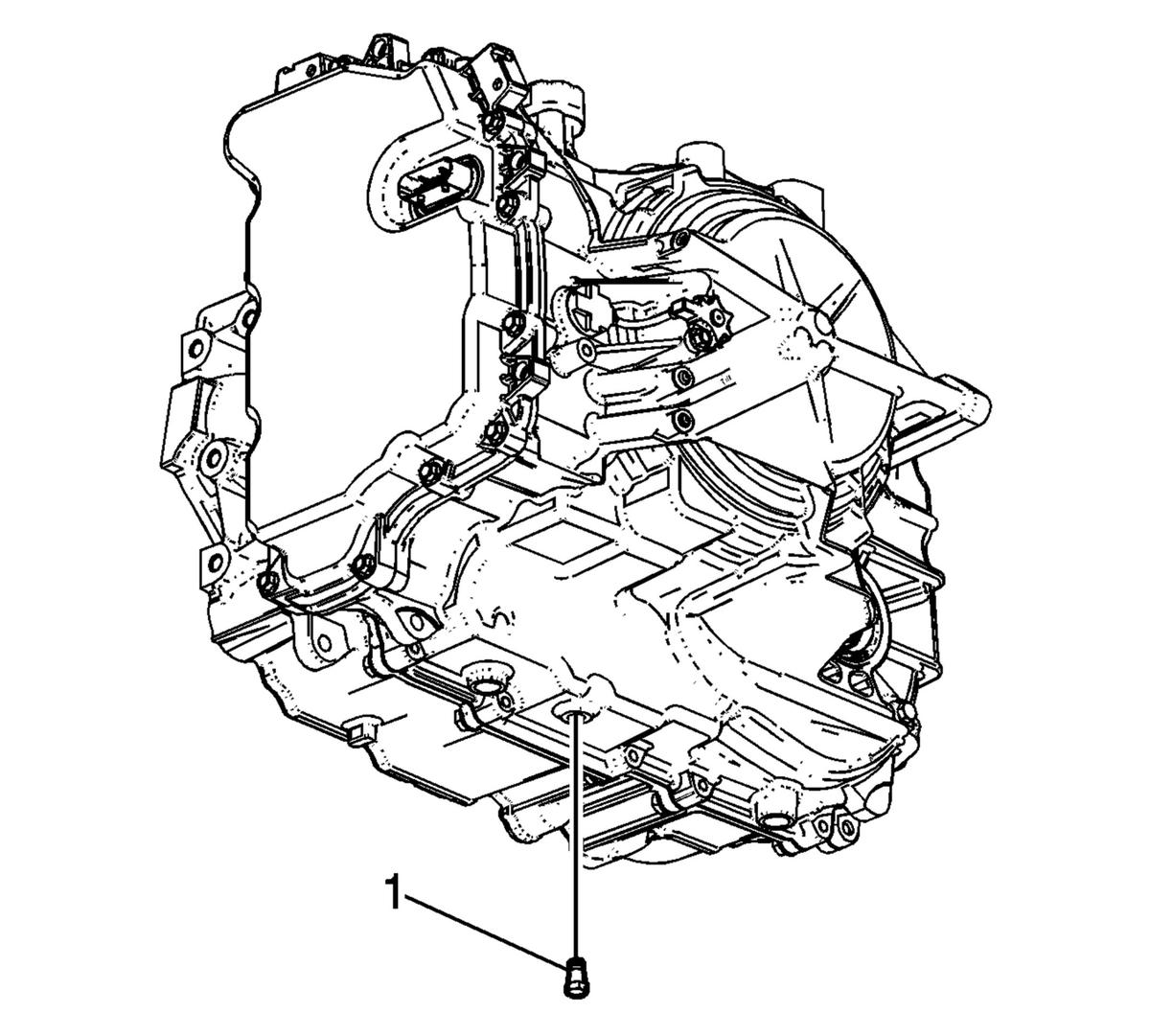

    3. Fig 2: Identifying Fluid Level Hole Plug
    GM1998836Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

  3. Install the fluid level drain plug (1) and tighten to 12 (106 lb in).
  4. Fill the transmission to a proper level with the correct fluid. Refer to Transmission Fluid Drain and Fill .
  5. Install front bumper fascia. Refer to Front Bumper Fascia Replacement .
