Steering Column Lower Trim Cover Replacement

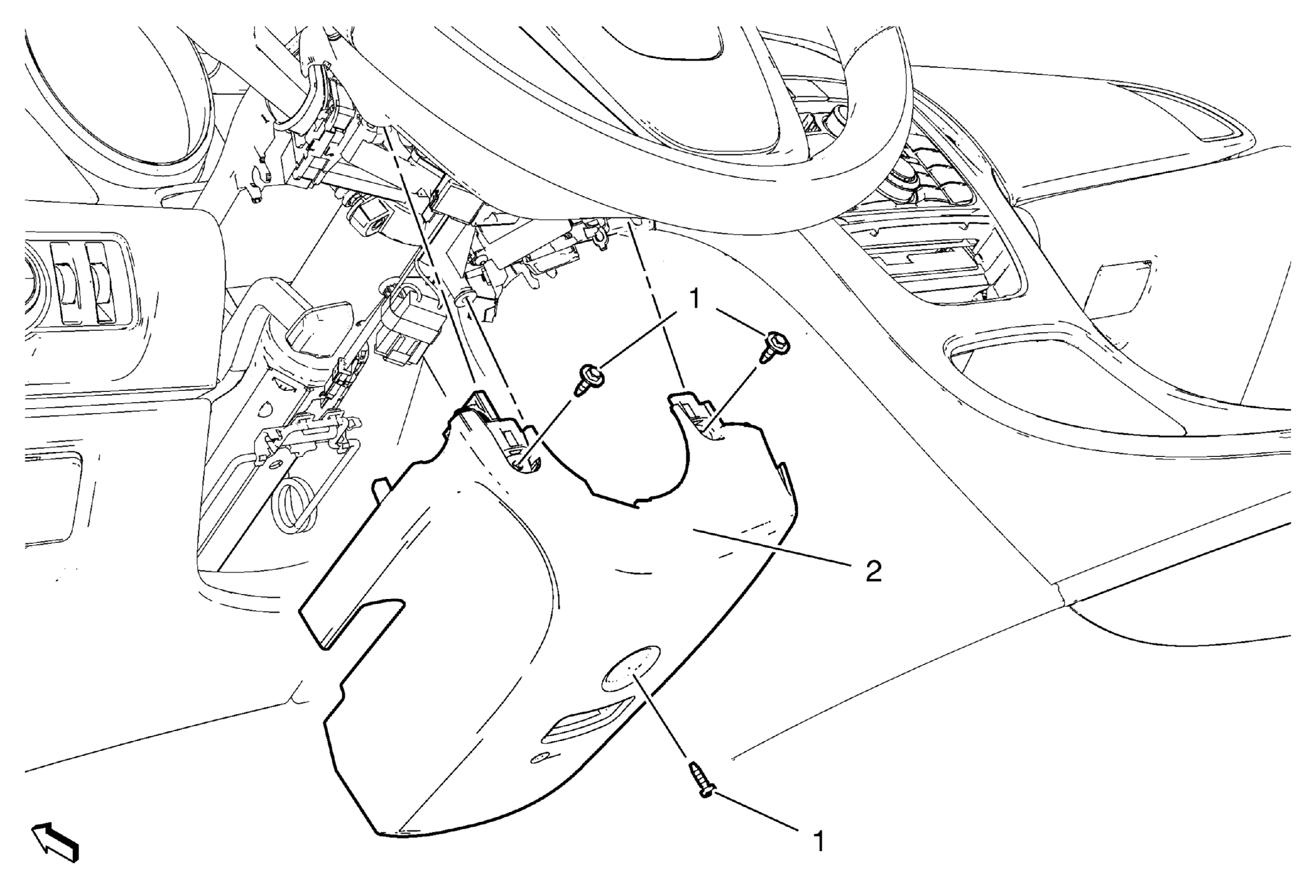

Fig 1: Steering Column Lower Trim Cover
GM2191040Courtesy of GENERAL MOTORS COMPANY
Steering Column Lower Trim Cover Replacement

Callout Component Name
Preliminary Procedure
Remove the steering column upper trim cover. Refer to Steering Column Upper Trim Cover Replacement .
1 Steering Column Lower Trim Cover Bolt (Qty: 3)
CAUTION:

Refer to Fastener Caution .


Tighten
2.5 N.m (22 lb in)
2 Steering Column Lower Trim Cover
Procedure
Turn the steering wheel until the bolts are reachable.
