Rear Seat Belt Buckle Replacement

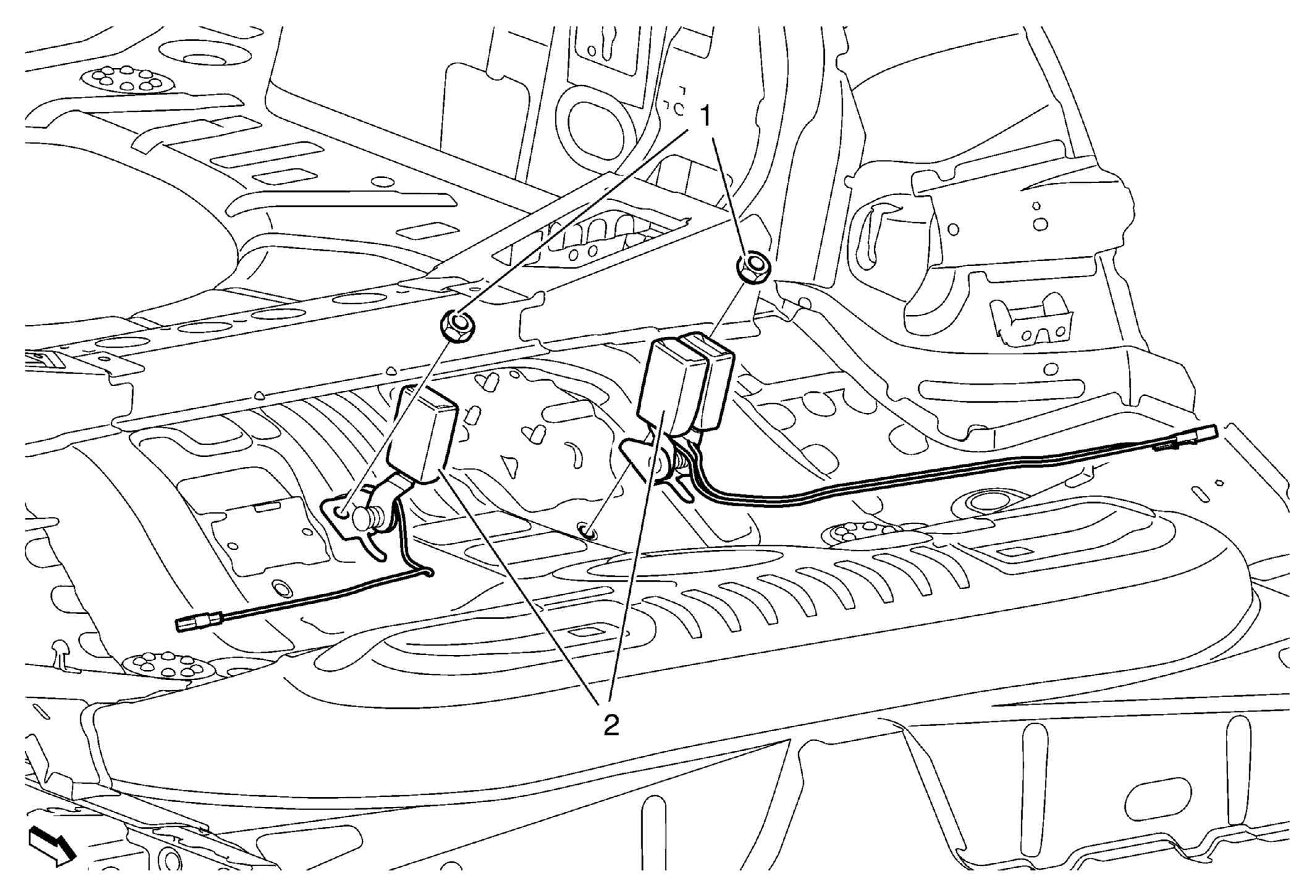

Fig 1: Rear Seat Belt Buckle
GM2191078Courtesy of GENERAL MOTORS COMPANY
Rear Seat Belt Buckle Replacement

Callout Component Name
Preliminary Procedure
Remove the rear seat cushion. Refer to Rear Seat Cushion Removal and Installation .
1 Rear Seat Belt Buckle Bracket Fastener (Qty: 2)
CAUTION:

Refer to Fastener Caution .


Tighten
45 (33 lb ft)
2 Rear Seat Belt Buckle
Procedure
Disconnect the electrical connector, if equipped.
