Installation Procedure
WARNING: This page is about a different car, the 2012 Buick Verano. However, it is still accessible from the selected car via links, so may be relevant.
- Install radiator inlet hose to the vehicle.

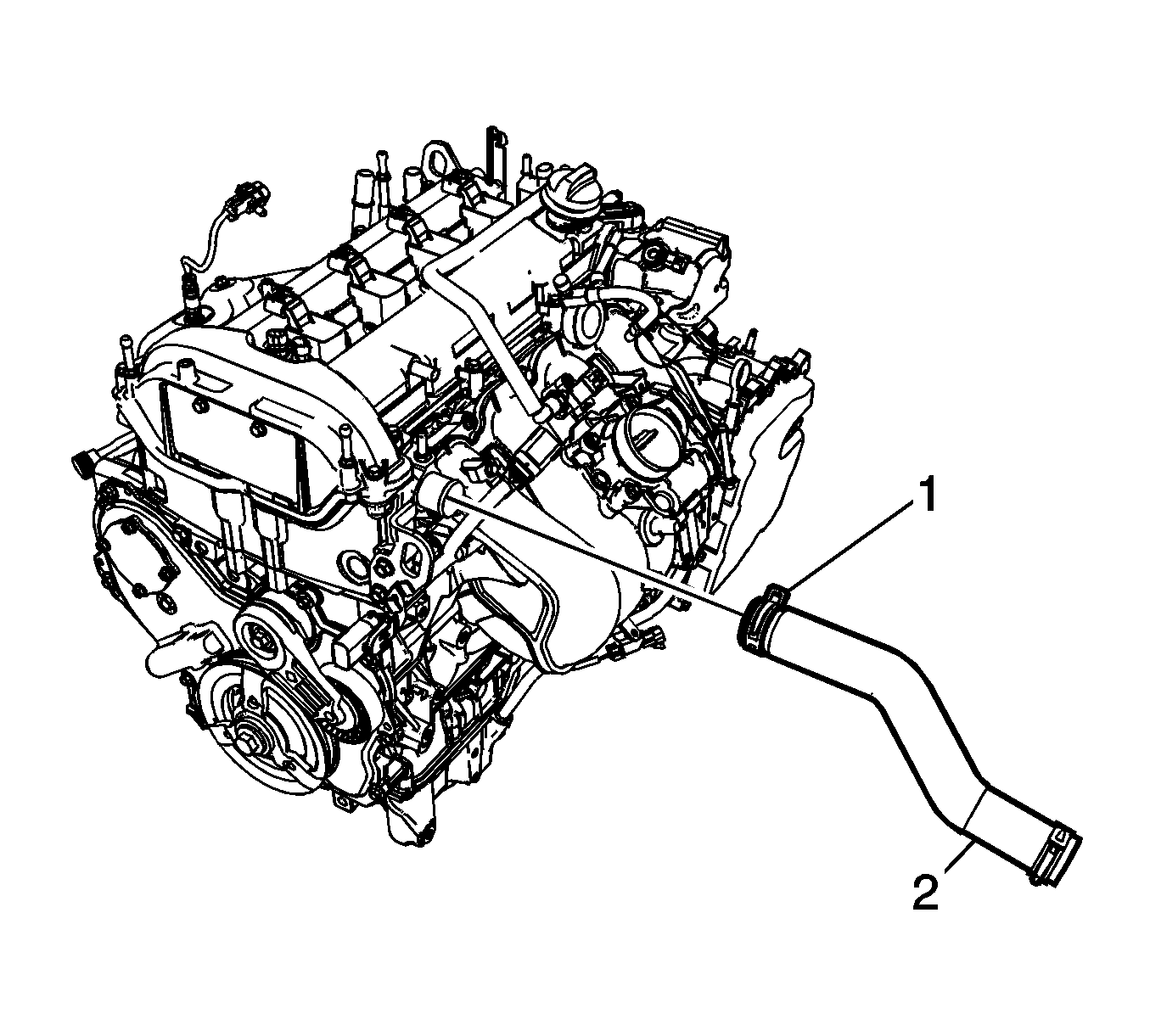

- Install the radiator inlet hose (2) to the engine.
- Engage tension on the radiator inlet hose clamp (1) at the engine using J 38185 Hose Clamp Pliers.

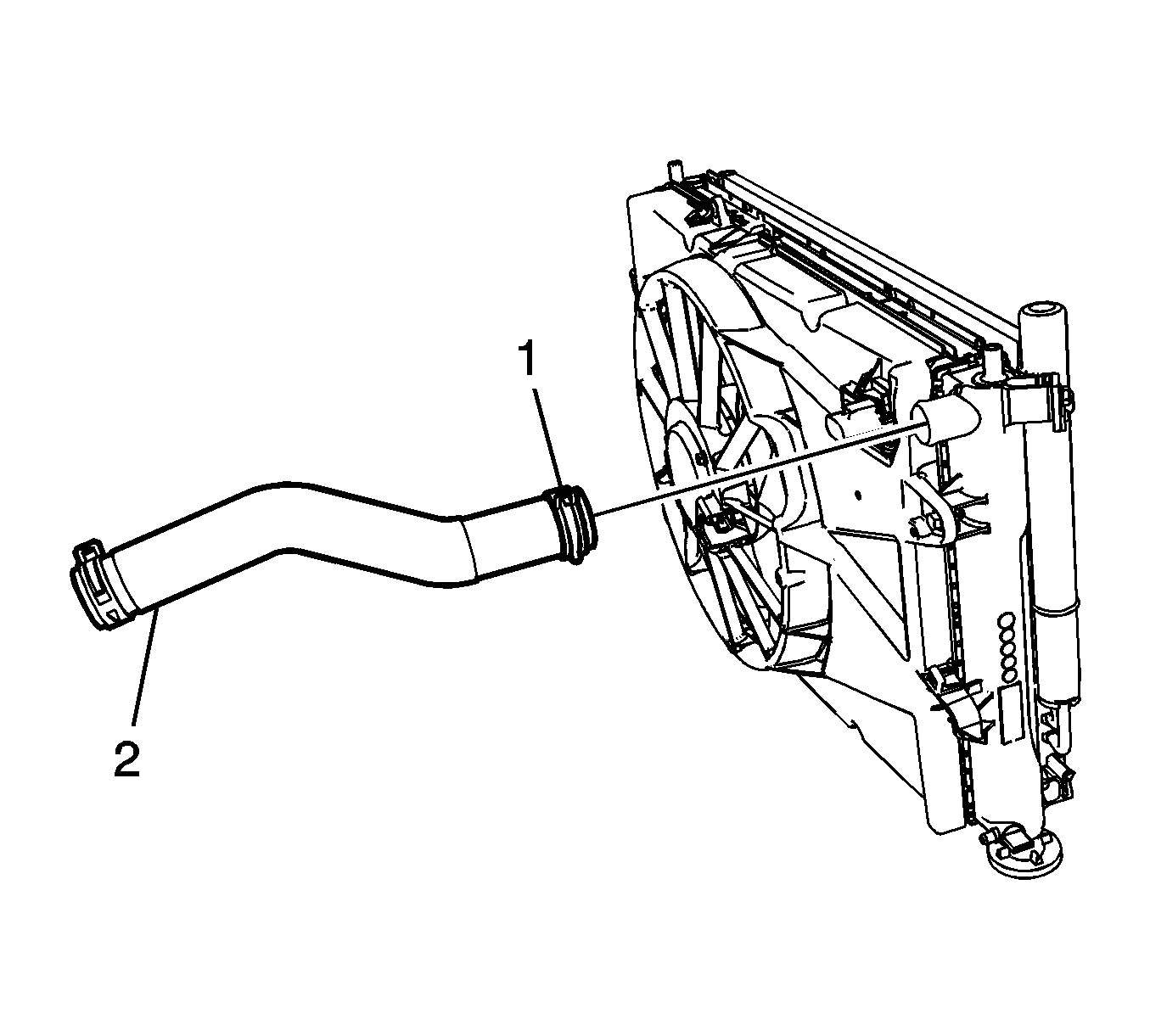

- Install the radiator inlet hose (2) to the radiator.
- Engage tension on the radiator inlet hose clamp (1) at the radiator using J 38185 Hose Clamp Pliers.
- Install the intake manifold cover. Refer to Intake Manifold Cover Replacement .
- Fill the cooling system. Refer to Cooling System Draining and Filling (GE 47716) .
NOTE:
Lubricate the inside diameters of the hose with clean coolant prior to installation.
