Passive Entry Power, Ground, Data Communications (ATH with BTM), and Remote Keyless Entry

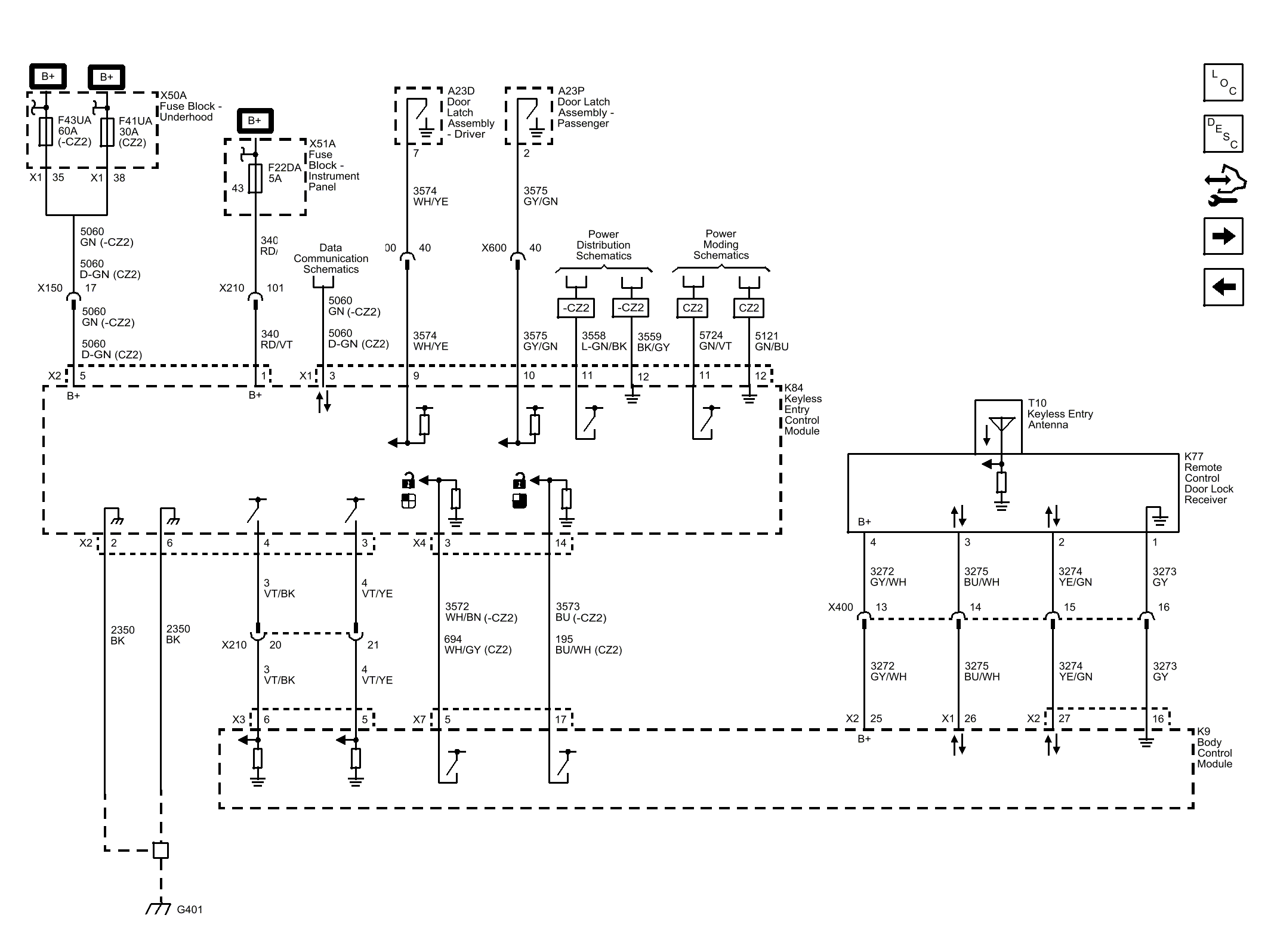

Fig 1: Passive Entry Power, Ground, Data Communications (ATH with BTM), and Remote Keyless Entry
GM3424432Courtesy of GENERAL MOTORS COMPANY
