Steering Wheel Secondary/Configurable Control Wiring Schematics
>>
Steering Wheel Secondary/Configurable Control System
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Steering Wheel Secondary/Configurable Control System

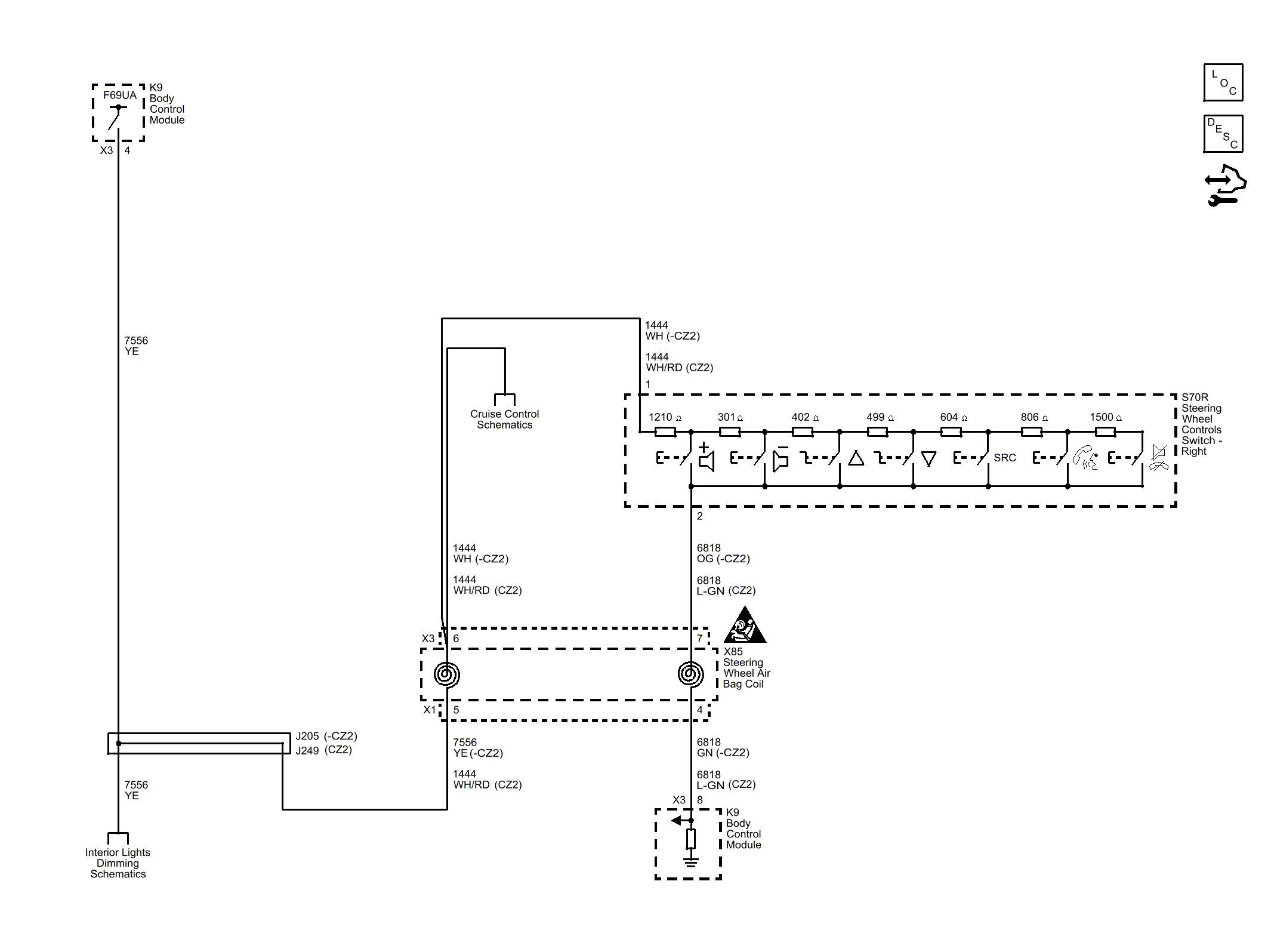

Fig 1: Steering Wheel Secondary/Configurable Control System
Courtesy of GENERAL MOTORS COMPANY
