Rear of Instrument Panel Components (1 of 2)

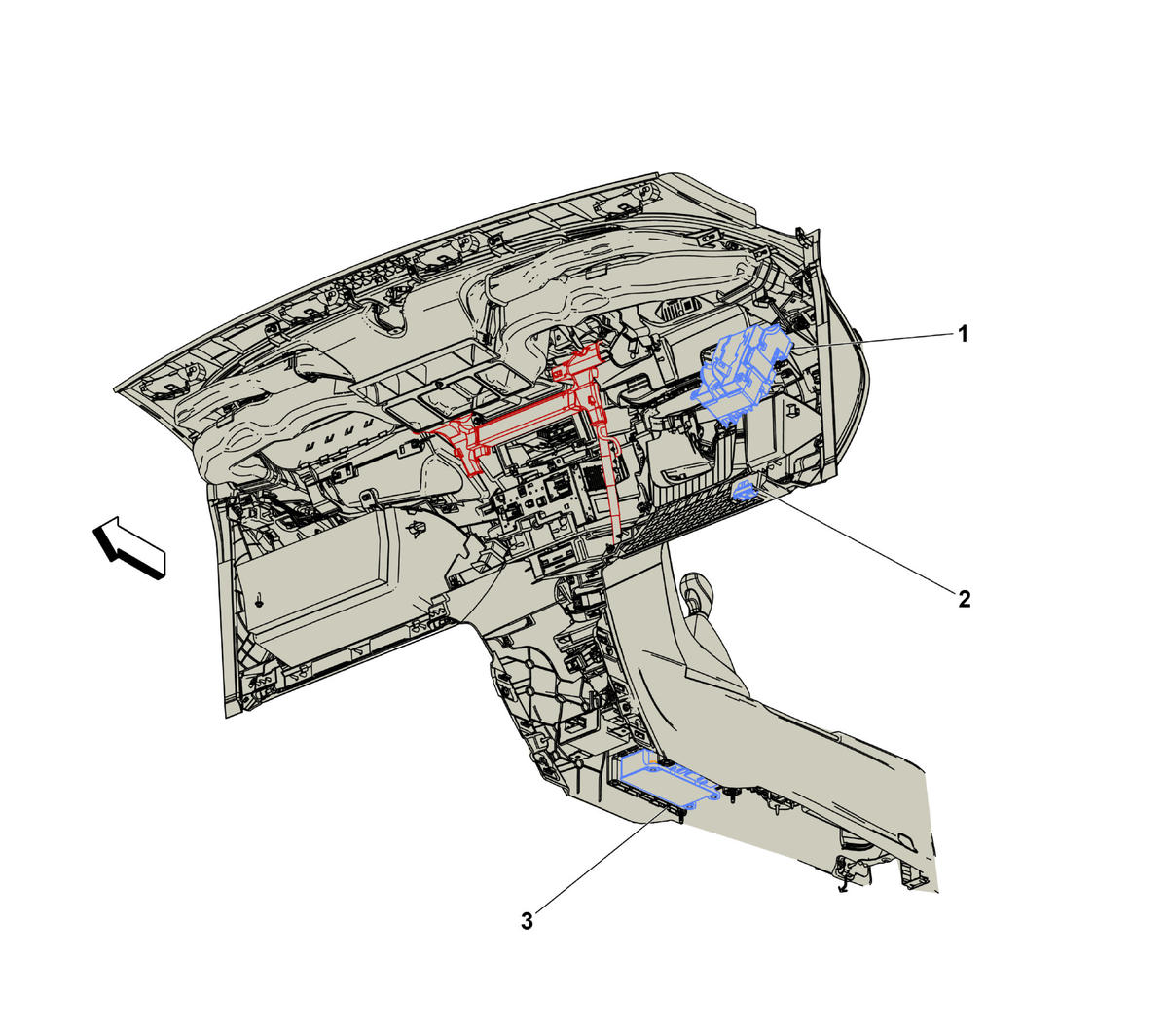

Fig 1: Rear of Instrument Panel Components (1 of 2)
GM3683469Courtesy of GENERAL MOTORS COMPANY
Items
1:  X51A Fuse Block - Instrument Panel X51A Fuse Block - Instrument Panel X1X51A Fuse Block - Instrument Panel, Wire Entry
2:  X84 Data Link Connector X84 Data Link Connector
3:  K36 Inflatable Restraint Sensing and Diagnostic Module K36 Inflatable Restraint Sensing And Diagnostic Module X1K36 Inflatable Restraint Sensing And Diagnostic Module X2
