Electrical Diagrams




Remote Function Schematics

Keyless Entry






Passive Entry (ATH with BTM)

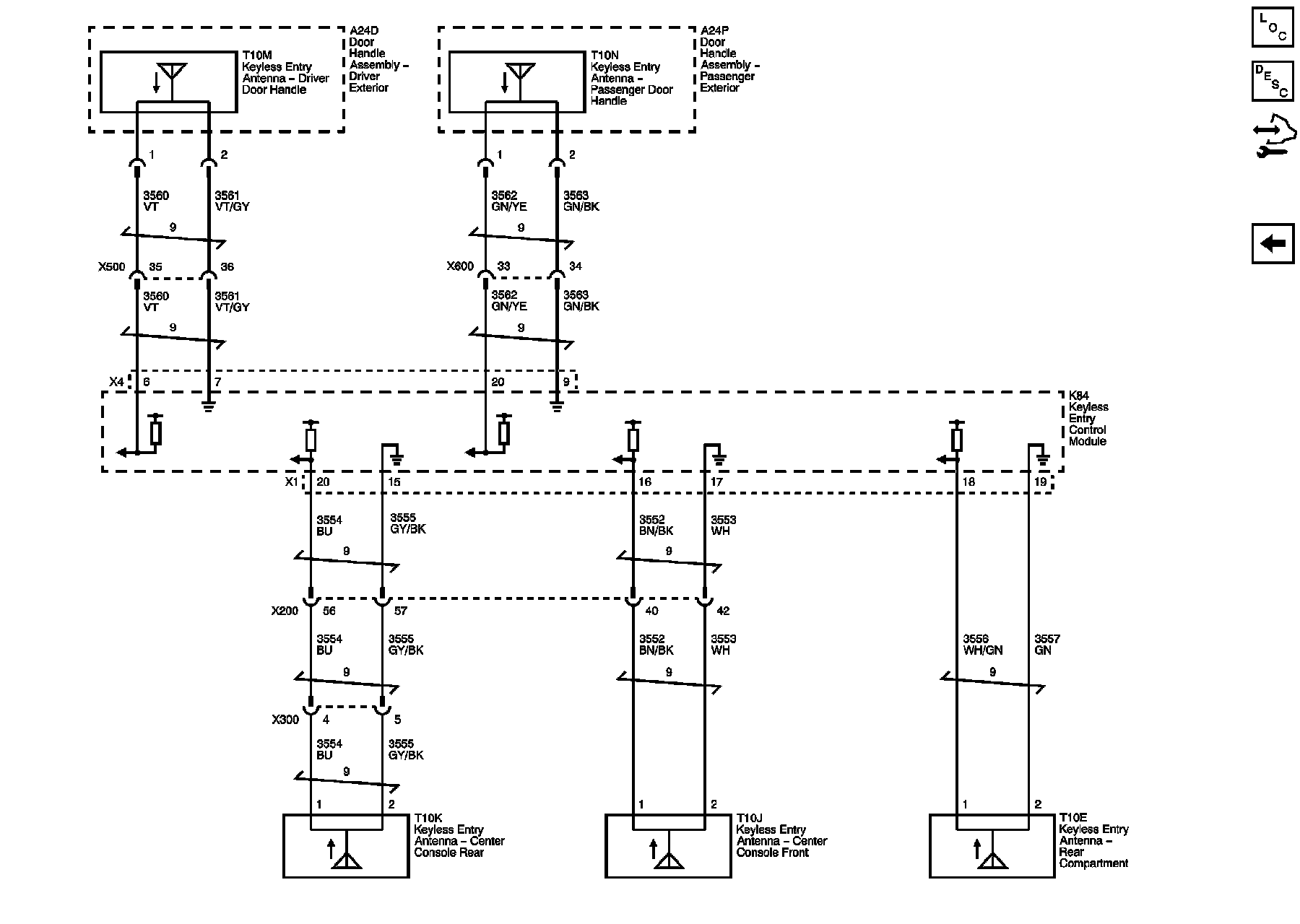

Passive Entry and Passive Start Antennas (ATH with BTM)
