Front Side Door Jamb Switch Replacement

WARNING: This page is about a different car, the 2010 Pontiac G5 and 2010 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.

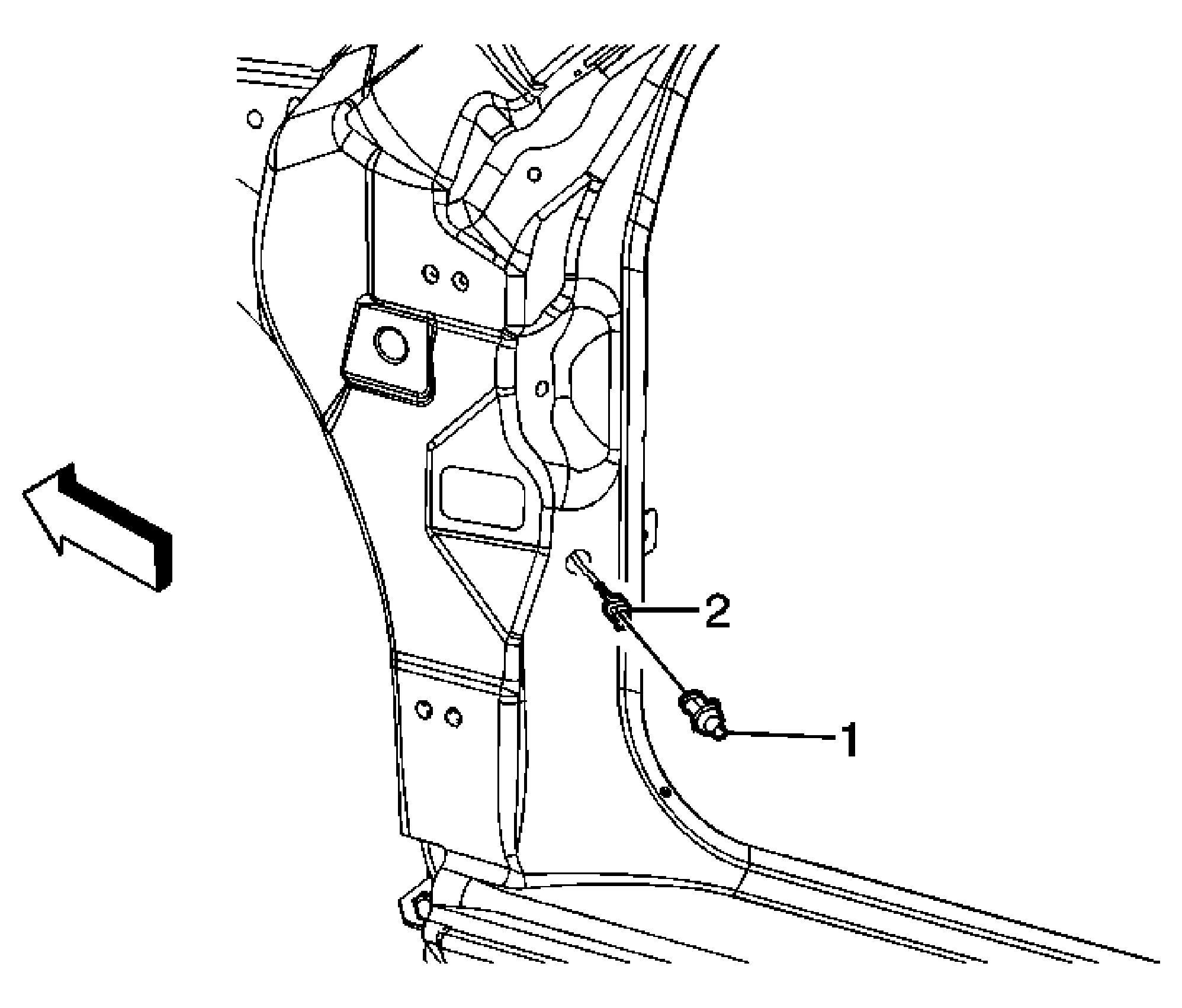

Fig 1: Door Jamb Switch Replacement - Front

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .
1	Door Jamb Switch Front Tip: Use a small flat-bladed tool to assist in the removal of the front door jamb switch.
2	Door Jamb Switch Electrical Harness Connector
