Assist Handle Replacement
WARNING: This page is about a different car, the 2010 Pontiac G5 and 2010 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.

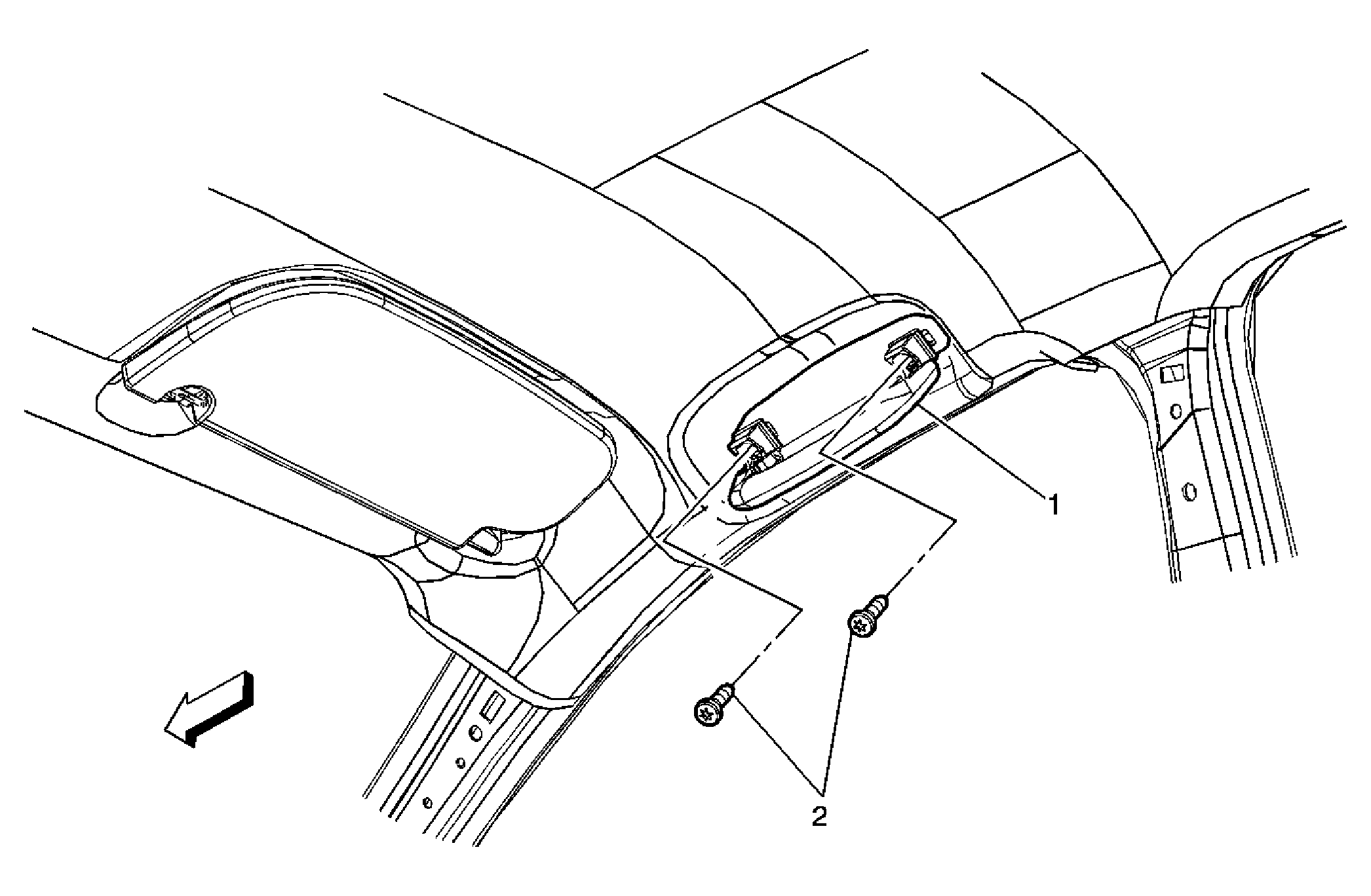

| Callout | Component Name |
|---|---|
| 1 | Assist Handle |
| 2 | Assist Handle Screw
CAUTION:
Refer to Fastener Caution
.
Tighten: 6 N.m (53 lb in) |
