Component Location Index
WARNING: This page is about a different car, the 2011 Honda Insight and 2010 Honda Insight. However, it is still accessible from the selected car via links, so may be relevant.

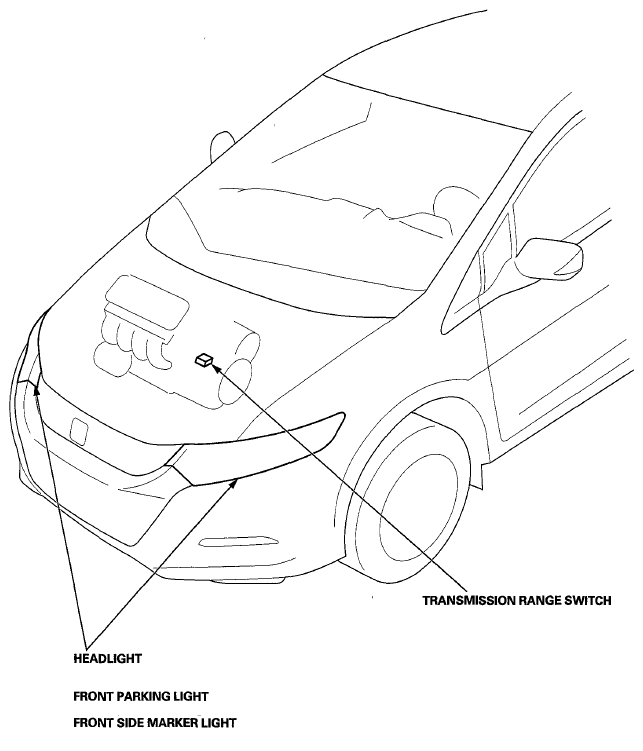

Fig 1: Identifying Exterior Lights Component Location (1 Of 3)

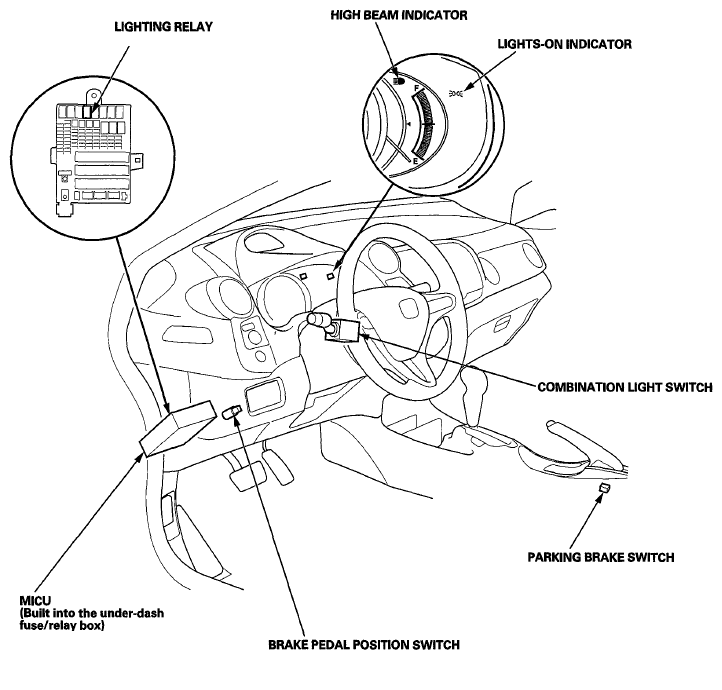

Fig 2: Identifying Exterior Lights Component Location (2 Of 3)

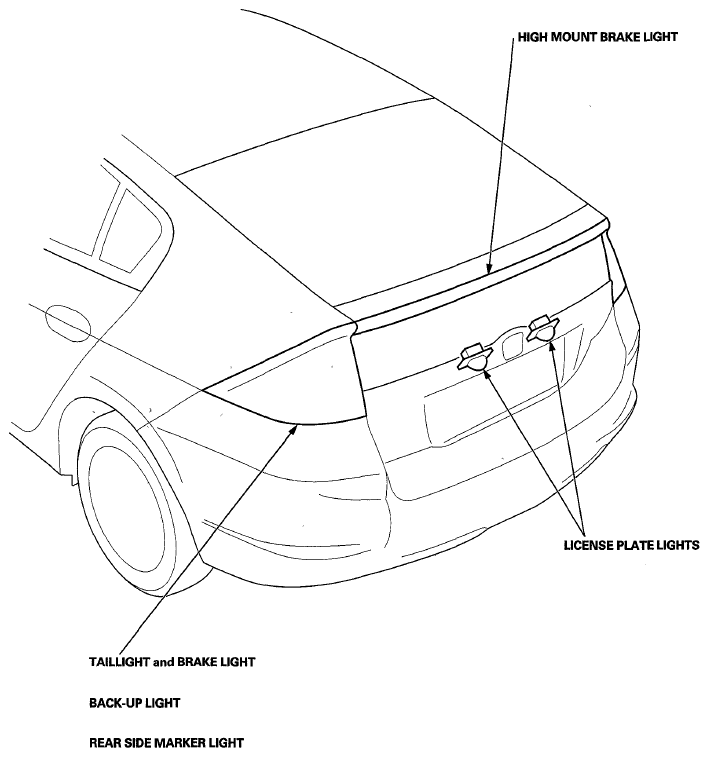

Fig 3: Identifying Exterior Lights Component Location (3 Of 3)
