Installation Procedure
WARNING: This page is about a different car, the 2012 Buick Verano. However, it is still accessible from the selected car via links, so may be relevant.

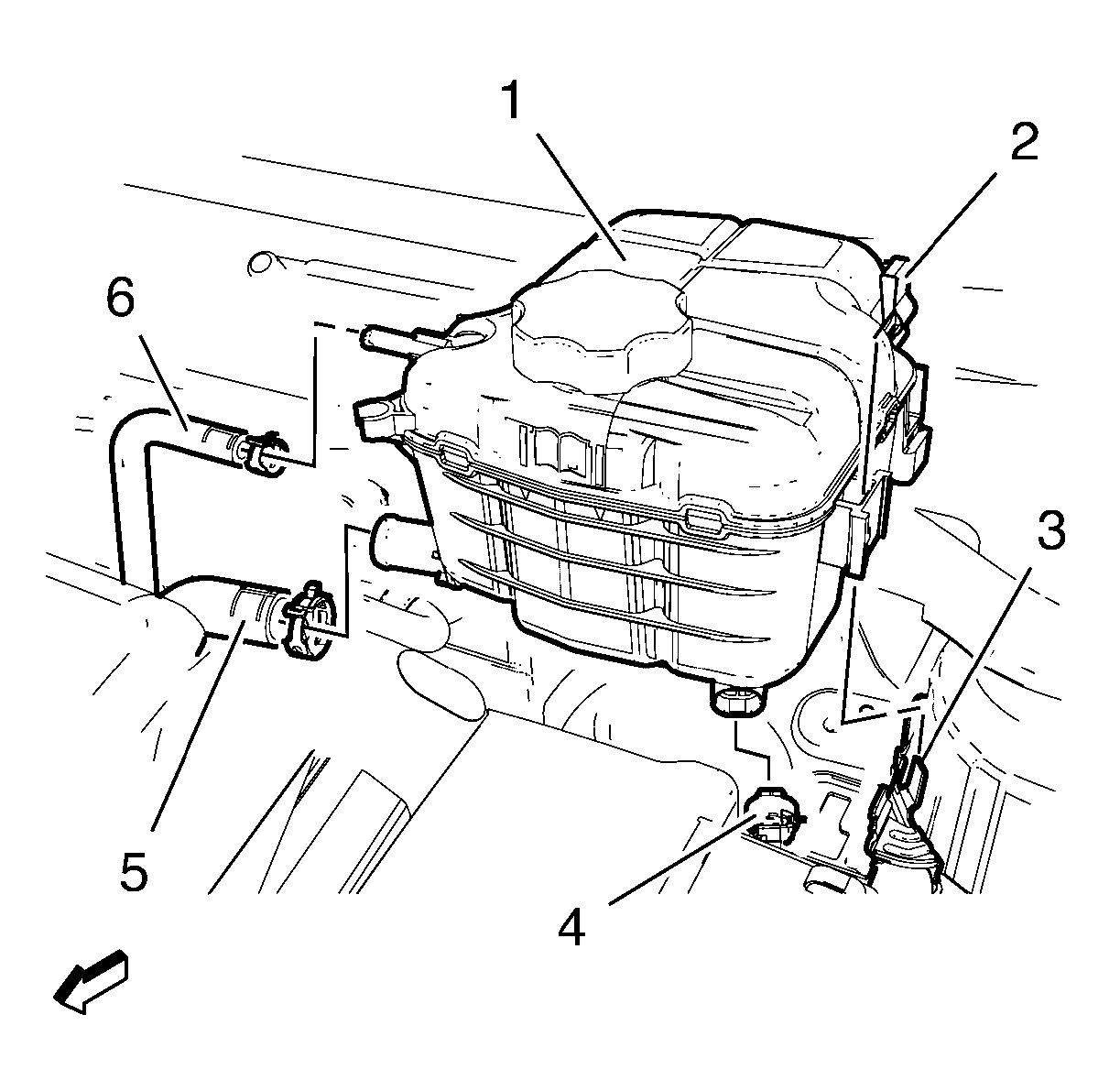

- Install the radiator surge tank (1) and clip into the bracket (3).
- Connect coolant level sensor wiring harness plug (4).
- Install radiator surge tank clip (2).
- Install the radiator surge tank engine hose (5), install the clamp.
- Install the engine coolant air bleed hose (6), install the clamp.
- Refill the radiator surge tank with the coolant fluid, which has been drained out before.
