Starting and Charging Wiring Schematics: Charging

WARNING: This page is about a different car, the 2012 Buick Verano. However, it is still accessible from the selected car via links, so may be relevant.

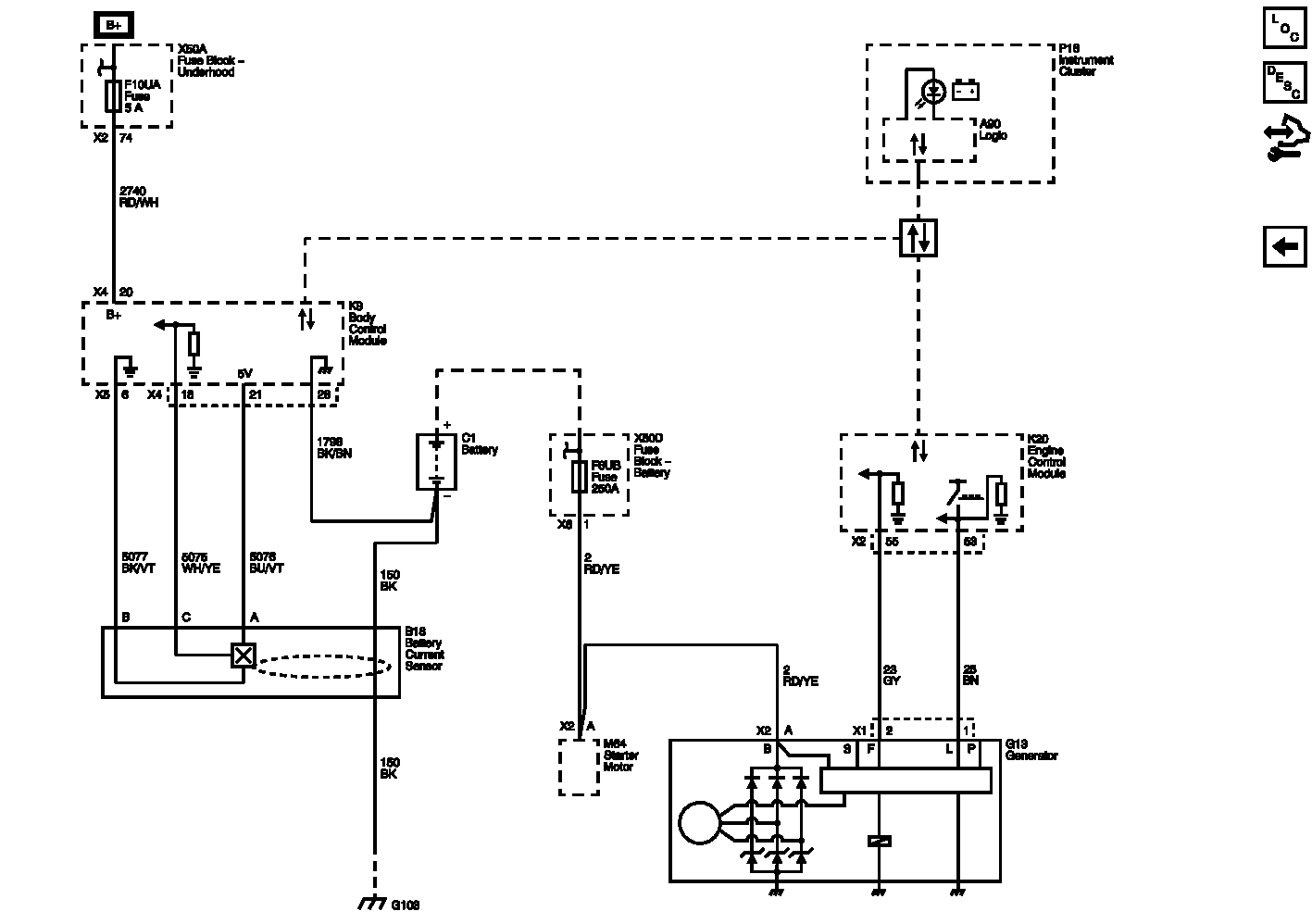

Fig 1: Charging Wiring Schematic
GM2689962Courtesy of GENERAL MOTORS COMPANY
