Mode Control Cam Actuator Replacement

WARNING: This page is about a different car, the 2012 Buick Verano. However, it is still accessible from the selected car via links, so may be relevant.

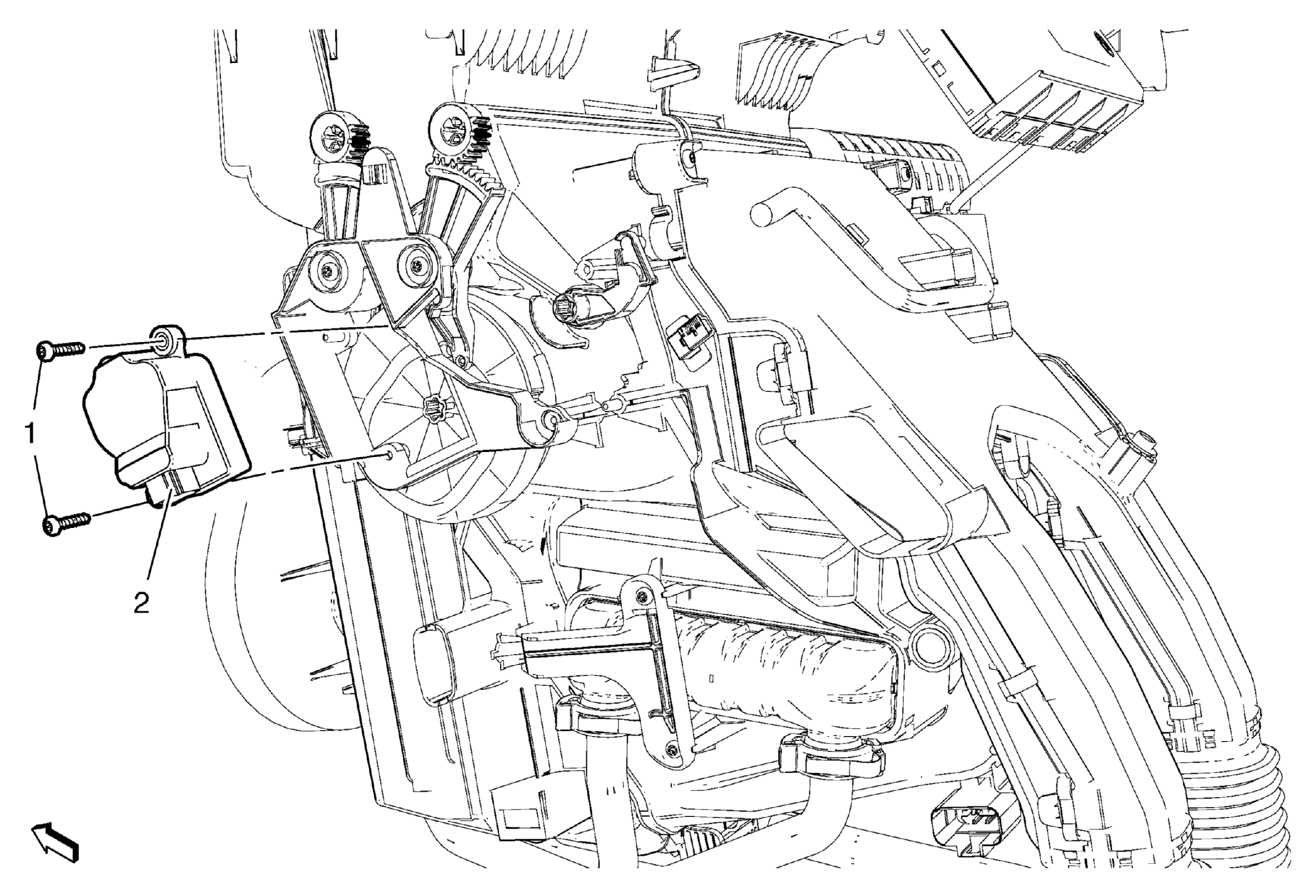

Fig 1: Mode Control Cam Actuator & Bolts

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the temperature valve actuator - left side. Refer to Temperature Valve Actuator Replacement - Left Side .
1	Mode Control Cam Actuator Bolt (Qty: 2) CAUTION: Refer to Fastener Caution .
2	Mode Control Cam Actuator Procedure Disconnect the electrical connector. After repairs, refer to Actuator Recalibration for programming and set up procedures.

Callout

Component Name

Preliminary Procedures
Remove the temperature valve actuator - left side. Refer to Temperature Valve Actuator Replacement - Left Side .

Mode Control Cam Actuator Bolt (Qty: 2)

CAUTION:

Refer to Fastener Caution .

Mode Control Cam Actuator

Procedure

Disconnect the electrical connector.
After repairs, refer to Actuator Recalibration for programming and set up procedures.
