Cylinder Head- Top View
WARNING: This page is about a different car, the 2012 Buick Verano. However, it is still accessible from the selected car via links, so may be relevant.
Cylinder Head- Top View

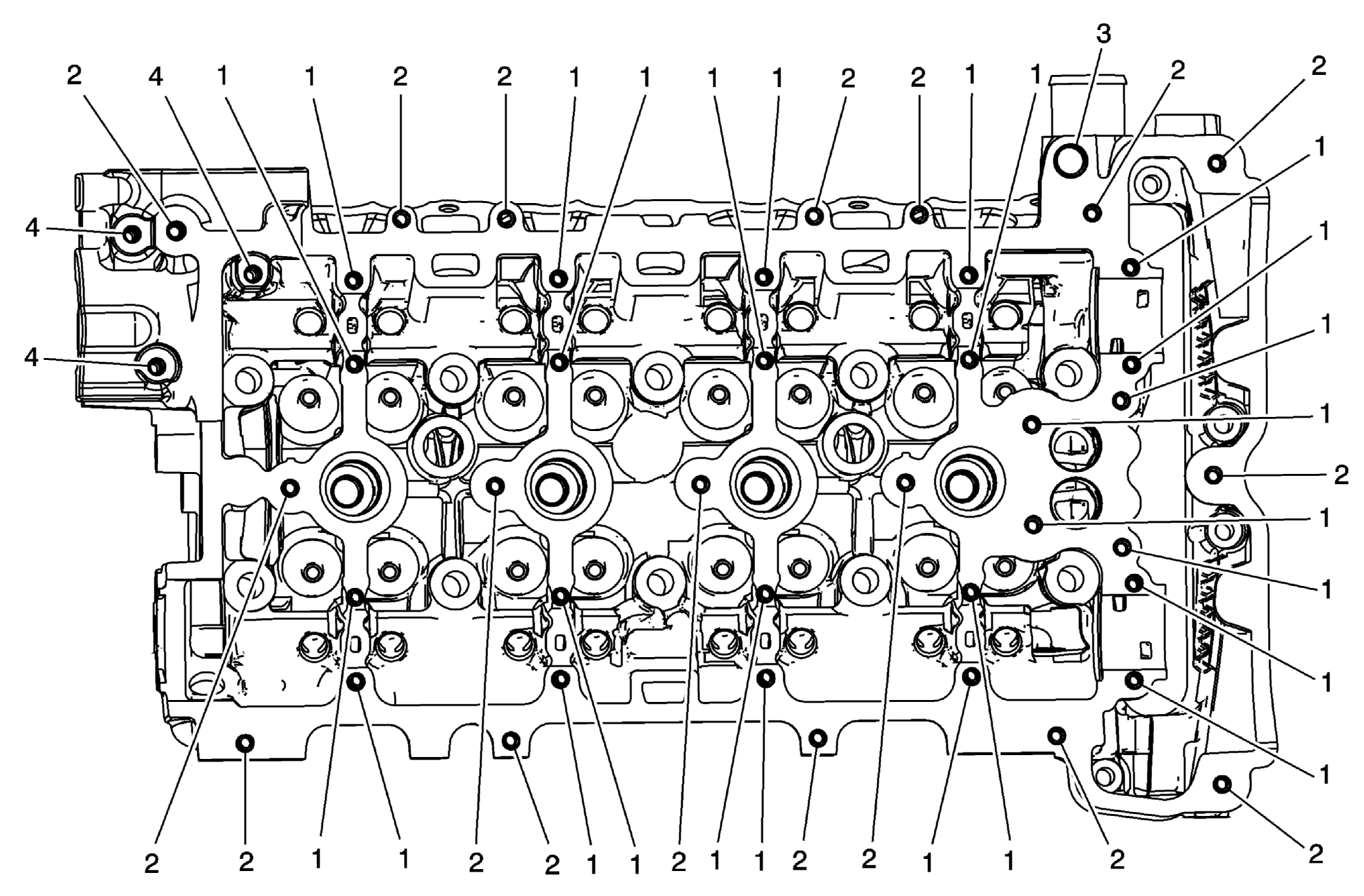

| Service Call Out | Thread Size | Insert | Drill | Counterbore Tool | Tap | Driver | Drill Depth (Maximum) | Tap Depth (Maximum) | ||
|---|---|---|---|---|---|---|---|---|---|---|
| EN 42385-850 | MM | (IN) | MM | (IN) | ||||||
| 1 | M6 x 1 | 205 | 852 | N/A | 203 | 204 | 24 | 0.945 | 20 | 0.787 |
| 2 | M6 x 1 | 205 | 201 | 202 | 203 | 204 | 20 | 0.787 | 16 | 0.63 |
| 3 | M14 x 1.75 | 854 | 857 | N/A | 858 | 859 | THRU | THRU | ||
| 4 | M8 x 1.25 | 854 | 853 | N/A | 208 | 209 | 30 | 1.182 | 27 | 1.063 |
