Defogger Wiring Schematics: Defogger

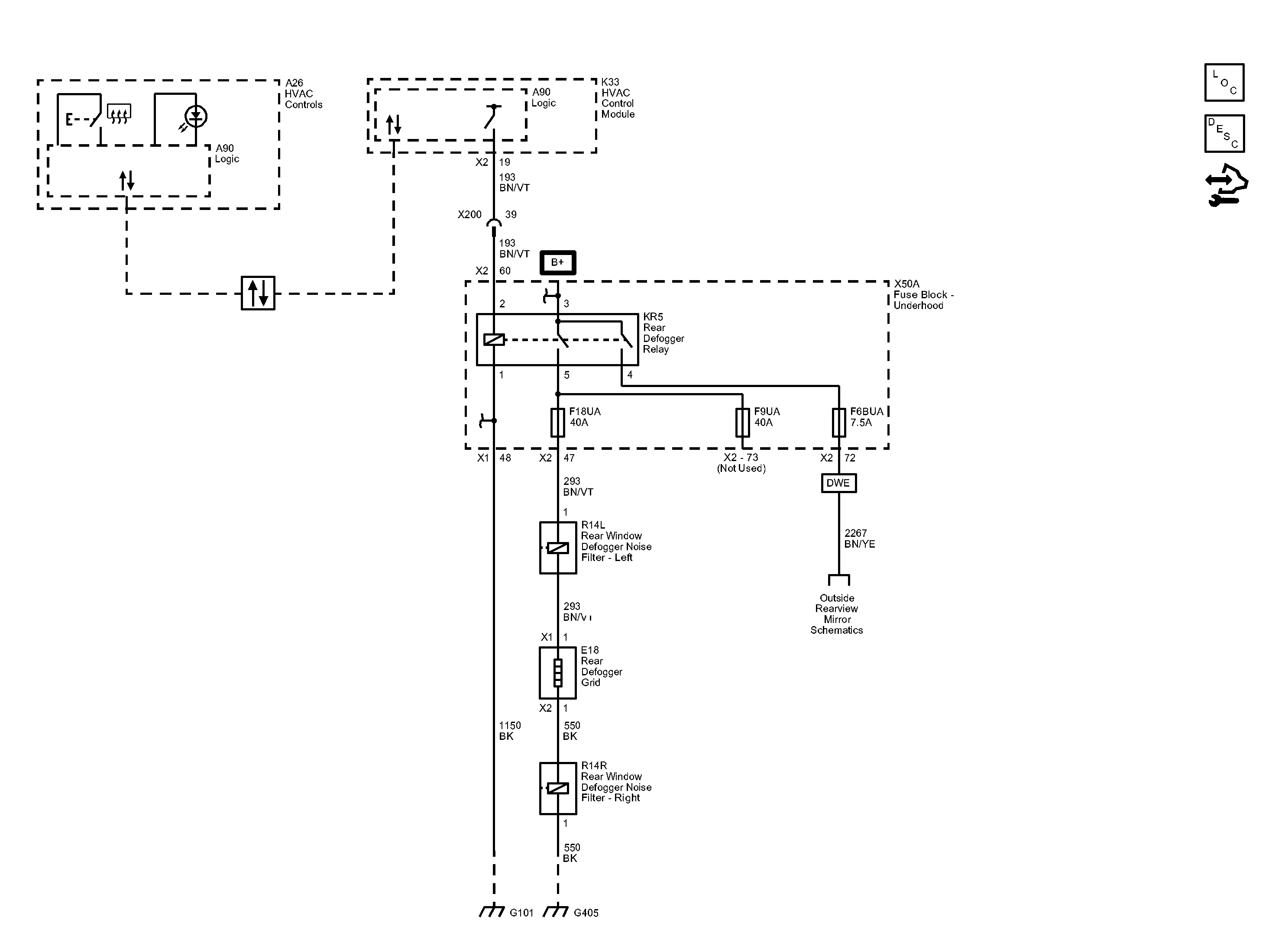

Fig 1: Defogger Wiring Schematic

GM2851798

Courtesy of GENERAL MOTORS COMPANY
