Multimedia Player Interface (KTA)

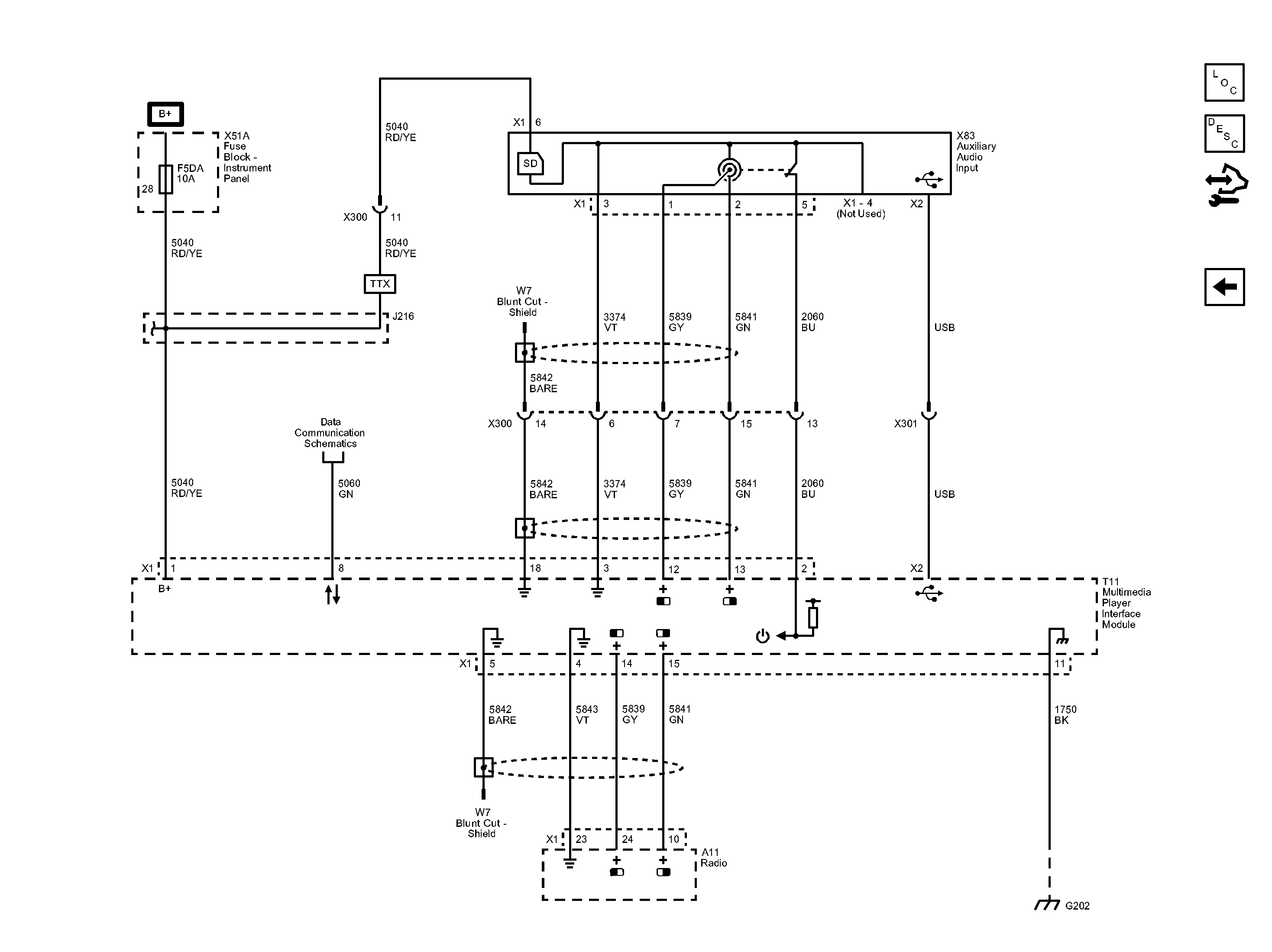

Fig 1: Multimedia Player Interface Wiring Schematic (KTA)
GM2852428Courtesy of GENERAL MOTORS COMPANY
