Mode Control Cam Actuator Replacement

WARNING: This page is about a different car, the 2016 Chevrolet Trax and 2016 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

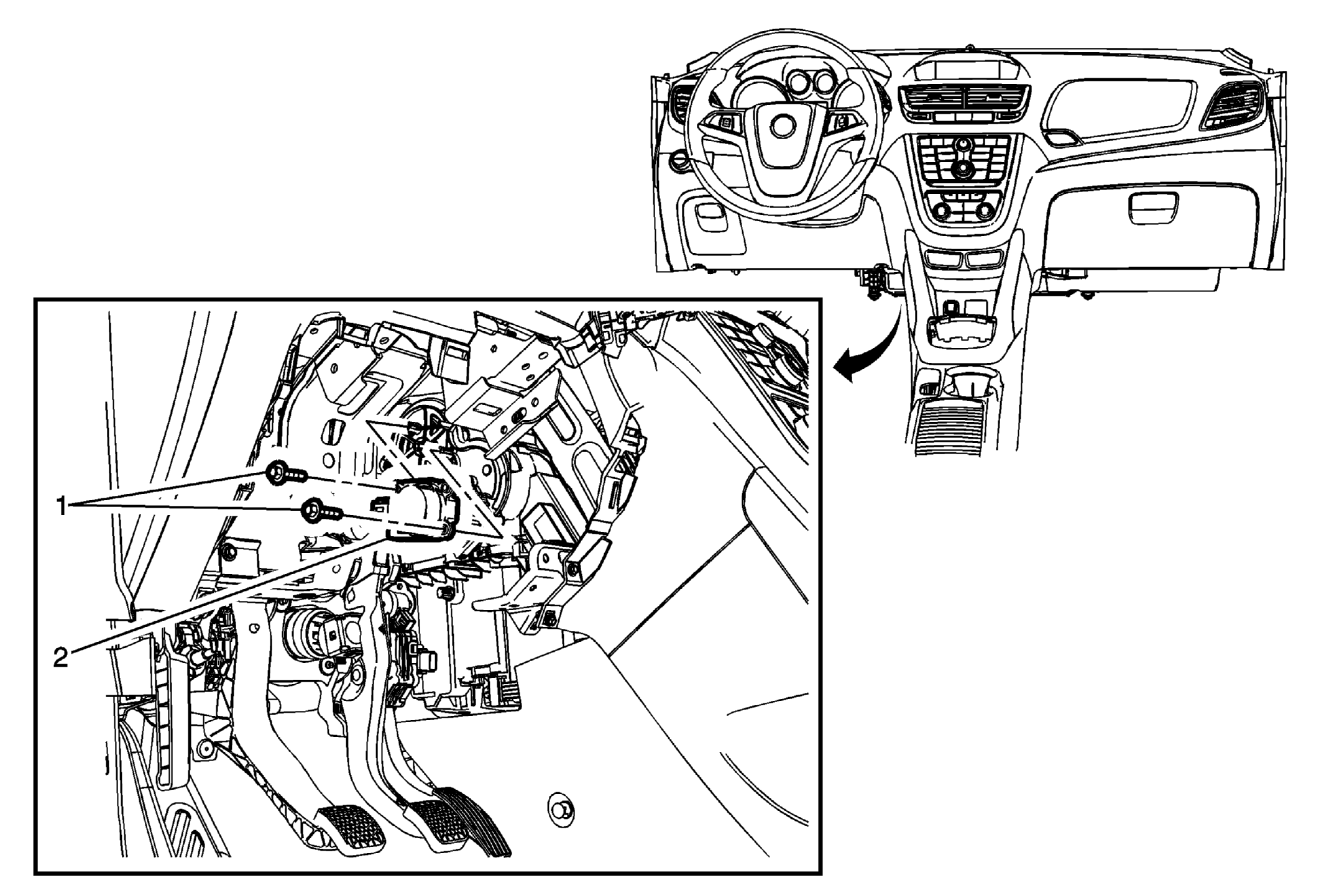

Fig 1: Mode Control Cam Actuator (C67)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection (without KL9)Battery Negative Cable Disconnection and Connection (with KL9) . Remove the steering column assembly. Refer to Steering Column Replacement (Canada, Mexico, NJ1)Steering Column Replacement (United States, NJ1) .
1	Mode Control Cam Actuator Fastener (Qty: 2)
2	Mode Control Cam Actuator Procedures Disconnect the mode control cam actuator connector. Perform the actuator re-calibration procedure. Refer to Actuator Recalibration (C67) .

Callout

Component Name

Preliminary Procedures

Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection (without KL9)Battery Negative Cable Disconnection and Connection (with KL9) .
Remove the steering column assembly. Refer to Steering Column Replacement (Canada, Mexico, NJ1)Steering Column Replacement (United States, NJ1) .

Mode Control Cam Actuator Fastener (Qty: 2)

Mode Control Cam Actuator

Procedures

Disconnect the mode control cam actuator connector.
Perform the actuator re-calibration procedure. Refer to Actuator Recalibration (C67) .
